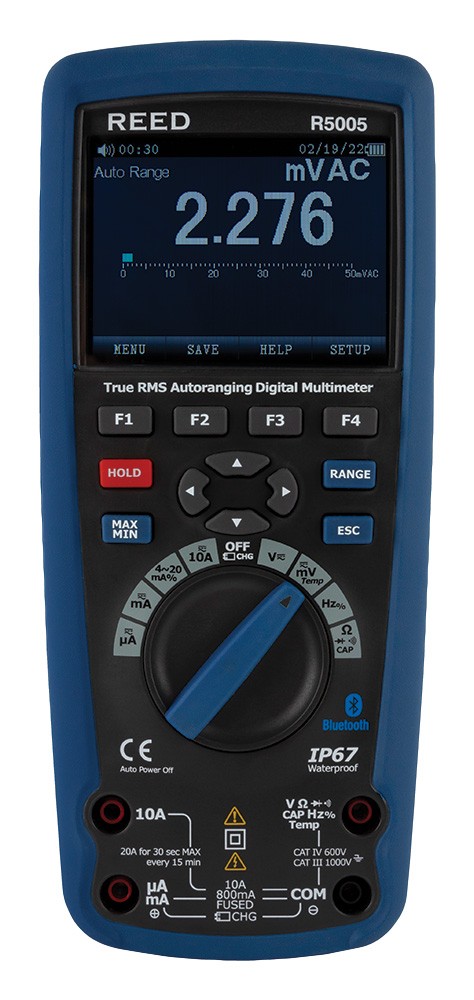

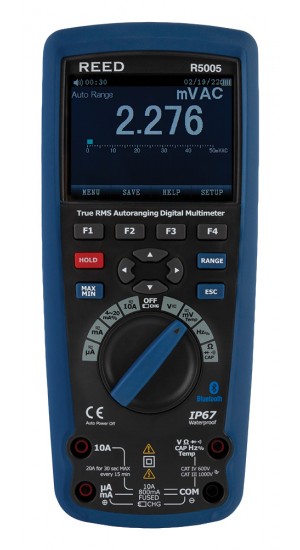

REED R5005 True RMS Industrial Multimeter with Bluetooth
Model: R5005 | UPC: 800837001221
REED R5005 True RMS Industrial Multimeter with Bluetooth
Model: R5005 | UPC: 800837001221

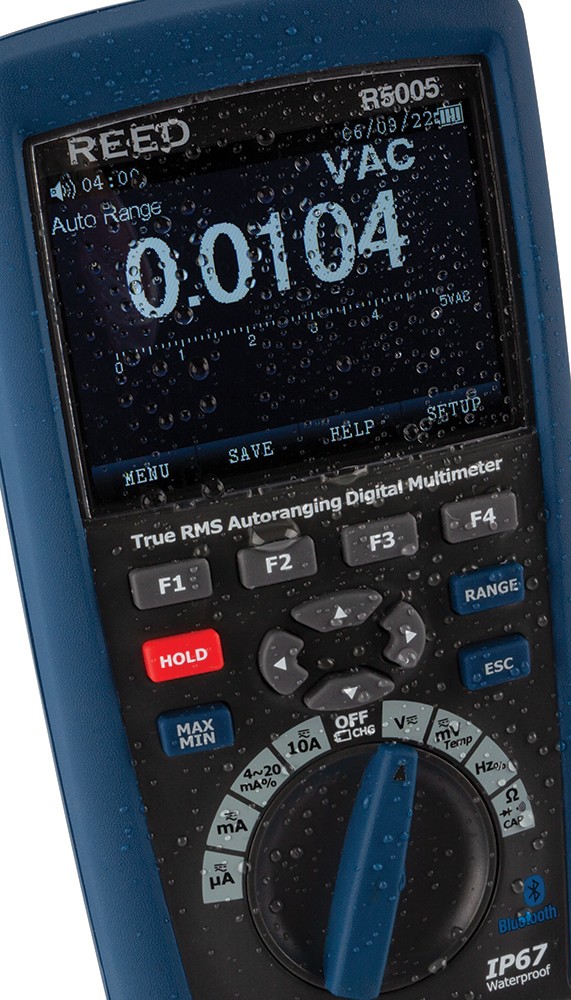

Full-featured waterproof DMM capable of data logging and measuring multiple True RMS AC and DC signals simultaneously. Features a 50000 count 320 x 240 TFT color LCD display with digital analog bargraph and Bluetooth capability.
REED R5005 Offers
The REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter is a full featured DMM capable of data logging and measuring multiple AC/DC signals simultaneously. With a LCD screen, analog bargraph and bluetooth capability the R5005 measures AC/DC voltage and current, resistance, capacitance, frequency and temperature.
Features
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Record data and and review trends with included software
- Relative, Peak, Min/Max and data hold functions
- Wireless Bluetooth Connectivity
- Waterproof (IP67) double molded plastic housing
- Cat. IV 600V, Cat. III 1000V safety rating
REED R5005 Specifications
| AC/DC Voltage | |
| Range | AC: 50, 500mV, 5, 50, 500, 1000V DC: 50, 500mV, 5, 50, 500, 1000V |
| Accuracy | AC: 50/60Hz ±(0.3% rdg. + 25 dgt.) <1 Khz ±(0.5% rdg. + 25 dgt.) <5Khz ±(3% rdg. + 25 dgt.) DC: 50mV ±(0.5% rdg. + 20 dgt.) 500mV, 5,50,500V ±(0.025% rdg. + 5 dgt.) 1000V ±(0.1% rdg. + 5 dgt.) |
| Resolution | AC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V DC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V |
| AC/DC Current | |
| Range | 500, 5000µA, 50, 500mA, 10A |
| Accuracy | AC: 50/60Hz ±(0.6% rdg. + 25 dgt.) <1 Khz ±(1.5% rdg. + 25 dgt.) <5Khz ±(3% rdg. + 25 dgt.) DC: 500, 5000µA, 50mA ±(0.1% rdg. + 20 dgt.) 500mA ±(0.15% rdg. + 20 dgt.) 10A ±(0.3% rdg. + 20 dgt.) |
| Resolution | 0.01, 0.1µA, 0.001, 0.01mA, 0.001A |
| Resistance | |
| Range | 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ |
| Accuracy | 50Ω: ±(0.5% rdg. + 20 dgt.) 500Ω/ 5,50kΩ: ±(0.05% rdg. + 10 dgt.) 500kΩ: ±(0.1% rdg. + 10 dgt.) 5MΩ: ±(0.2% rdg. + 20 dgt.) 50MΩ: ±(2% rdg. + 20 dgt.) |
| Resolution | 0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ |
| Capacitance | |
| Range | 5, 50, 500nF, 5, 50, 500µF, 10mF |
| Accuracy | 5, 50,500nF, 5,50µF ±(2%+40 dgt.) 500µF, 10mF ±(5%+40 dgt.) |
| Resolution | 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1µF, 0.01mF |
| Frequency | |
| Range | 50, 500Hz, 5, 50, 500kHz, 5, 10MHz |
| Accuracy | ±(0.01%+10 dgt.) |
| Resolution | 0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz |
| Temperature | |
| Range | -58 to 1832°F (-50 to 1000°C) |
| Accuracy | ±(1.0% rdg. + 4.5°F) ±(1.0% rdg. + 2.5°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging/Manual |
| True RMS | Yes |
| Measure AC/DC signals simultaneously | Yes |
| Display | 50000 count 320 x 240 TFT color LCD display |
| Display Hold | Yes |
| Max/Min | Yes |
| Peak Hold | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Recording Capabilities | Yes (Over 2 hr recording time) |
| Wireless Connectivity | Yes (Bluetooth via software) |
| Backlit Display | Yes |
| Digital Analog Bargraph | Yes |
| Continuity Check | Audible signal if resistance ≤25Ω |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Kick Stand | Yes |
| Auto Power Off | Yes (after 15 minutes) |
| Power Supply | Li-ion Rechargeable Battery |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Software OS Compatibility | Windows XP / 7 / 8 / 10 |
| Overvoltage Category | CAT. IV 600V, CAT. III 1000V |
| Product Certifications | CE, IP67 |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 8.7 x 3.8 x 2.4" (220 x 96 x 60mm) |
| Weight | 22oz (631g) |

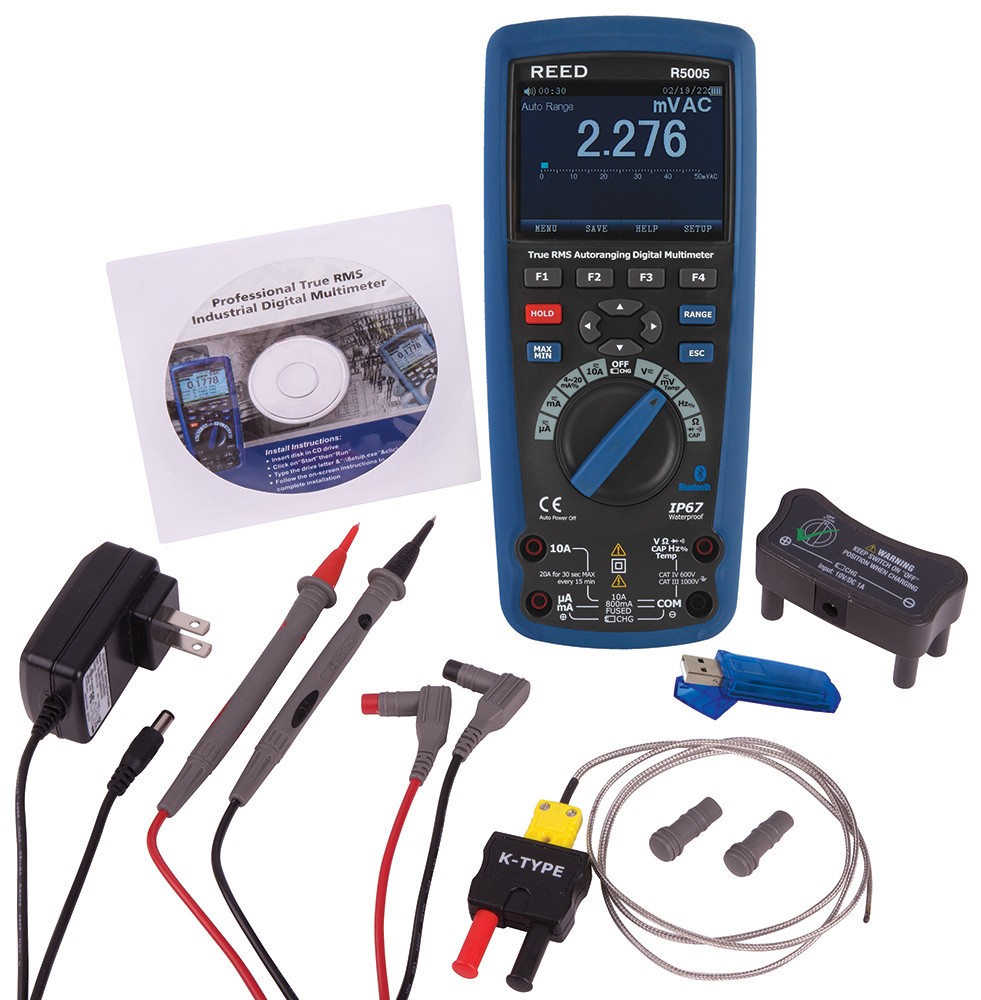

What's included with the REED R5005
- TRMS Bluetooth/Waterproof Industrial Multimeter
- Test Leads
- Type K Thermocouple Wire Probe
- Thermocouple Adapter
- Weatherproof plugs
- Li-ion Battery
- AC Adapter
- Software
How To: Test for Continuity with a Multimeter
If you're not sure of the continuity of your circuit, you may need to perform a test with a multimeter. For the purpose of this video, we'll be using the R5008 Multimeter. These steps will work for most multimeters.
Ideal Applications for the REED R5005
- Testing batteries
- Testing household wiring
- Testing electric motors
- Testing power supplies
