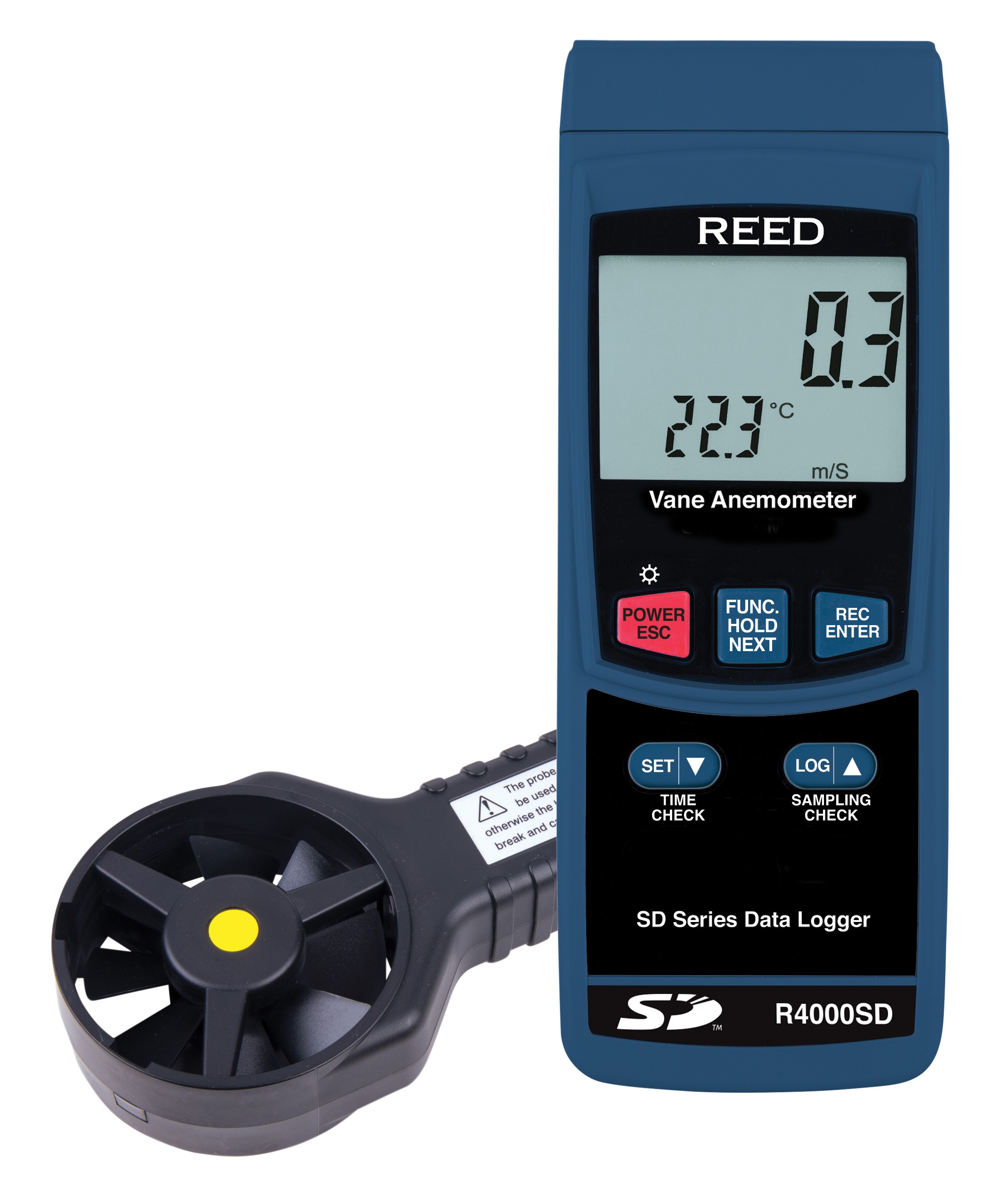

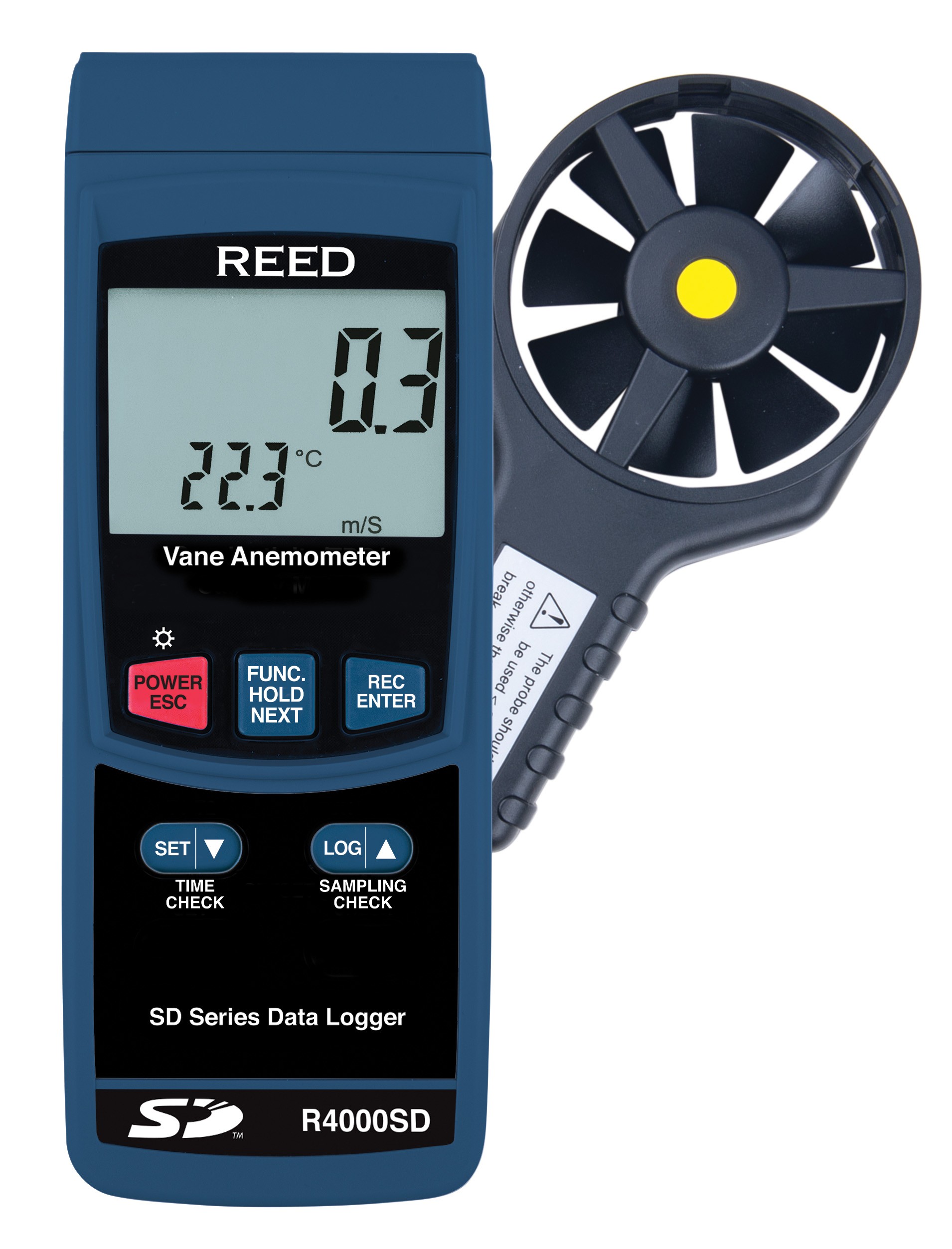

REED R4000SD Data Logging Vane Thermo-Anemometer
Model: R4000SD | UPC: 800837004710
REED R4000SD Data Logging Vane Thermo-Anemometer
Model: R4000SD | UPC: 800837004710
Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.
REED R4000SD Offers
The R4000SD measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
Features
- Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
- Contact temperature measurement with type J/K thermocouple option
- Thermistor sensor for fast air temperature readings
- Low friction ball-bearing, rotating vane probe ensures high accuracy readings

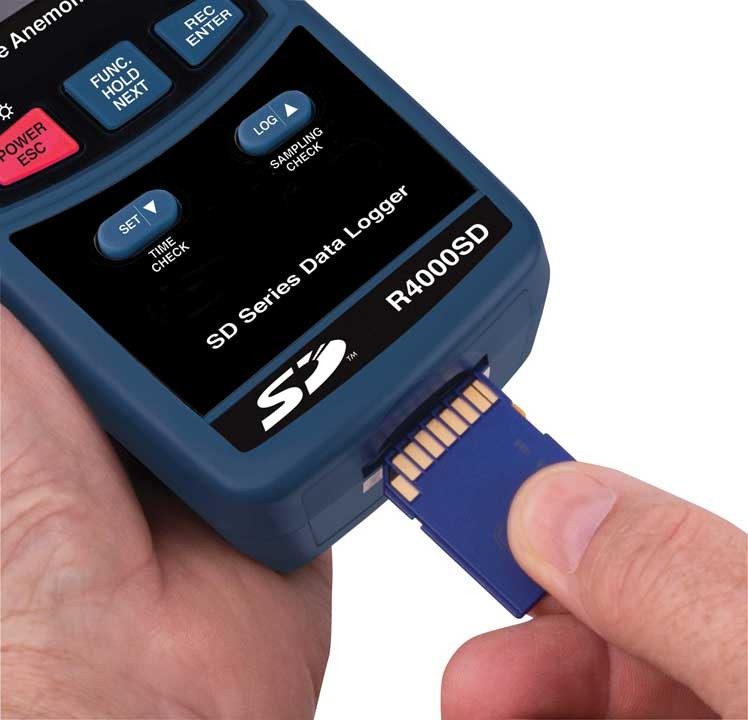

- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Tripod mount on probe and instrument for long-term monitoring
- Low battery indicator and auto shut off
REED R4000SD Specifications
| Type | Vane |
| Measuring Ranges | fpm: 79 to 5906 m/s: 0.4 to 30 km/h: 1.4 to 108 mph: 0.9 to 67.1 knots: 0.8 to 58.3 Air Temperature: 32 to 122°F (0 to 50°C) Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C) Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C) |
| Accuracy | Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot) Air Temperature: 1.5°F (±0.8°C) Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | fpm: 1 m/s, km/h, mph, knot: 0.1 Temperature: 0.1°F/°C |
| Vane Diameter | 2.8" (72mm) |
| Response Time | <1 second |
| Display | 5-digit, Dual LCD Display |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 8 x 3 x 1.5" (203 x 76 x 38mm) |
| Weight | 1.13lb (515g) |
What's included with the REED R4000SD
- Data Logging Vane Thermo-Anemometer
- Vane Probe
- Hard Carrying Case
- Batteries
Measure wind speed with the R4000SD Data Logging Vane Thermo-Anemometer
REED air velocity meters (also known as anemometers) are built to suit various air flow applications that require a high accuracy instrument capable of calculating air volume and air temperature. The R4000SD Data Logging Vane Thermo-Anemometer features an integrated SD memory card that measures and records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input in fpm, m/s, kph, mph and knots.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R4000SD
- HVAC/R and refrigeration servicing
- Detecting filter blockage
- Condensers and chillers
