REED R3100SD Data Logging Conductivity/TDS/Salinity Meter

Model: R3100SD | UPC: 800837004680

Real-time data logger with integrated SD memory card measures/records conductivity, total dissolved solids (TDS) and salt levels in water with automatic temperature compensation.

REED R3100SD Offers

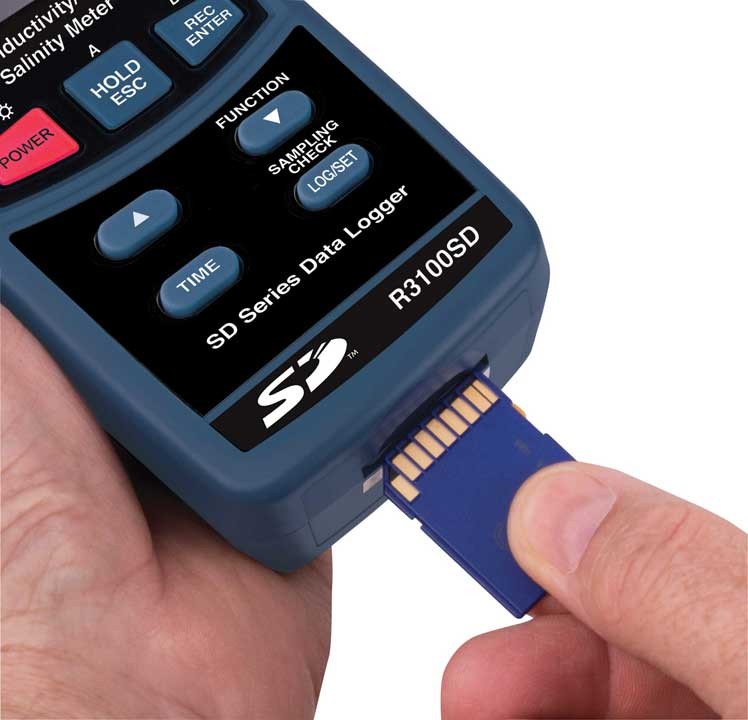

The R3100SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

Measures conductivity, total dissolved solids (TDS) and salt levels in water
Automatic temperature compensation
Real time data logger with integrated SD memory card (optional)
User selectable sampling rate
Easy-to-read backlit LCD display
Data hold and Min/Max functions
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED R3100SD Specifications

Conductivity
Measuring Range	200μS/cm, 2mS/cm, 20mS/cm, 200mS/cm
Accuracy	±(2%FS +1 dgt)
Resolution	0.1μS, 0.001mS, 0.01mS, 0.1mS
TDS (Total Dissolved Solids)
Measuring Range	200, 2000, 20,000, 200,000 ppm
Accuracy	±(2%FS +1 dgt)
Resolution	0.1, 1, 10, 100 ppm
Salinity
Measuring Range	0 to 12% (% weight)
Accuracy	±0.5% salt
Resolution	0.01% salt
Temperature	Measuring Range: 32 to 140°F (0 to 60°C) Accuracy: ±1.5°F (±0.8°C) Resolution: ±0.1°F (±0.1°C)
General Specifications
Display	Dual Display, LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Sampling Rate	Yes (1 second to 8 hours, 59 minutes and 59 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
Battery Life	Sampling Time Dependent
Product Certifications	CE
Operating Temperature	Meter: 32 to 122°F (0 to 50°C) Probe: 32 to 140°F (0 to 60°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 80%
Dimensions	7 x 2.7 x 1.9" (177 x 68 x 45mm)
Weight	1.1lb (515g)

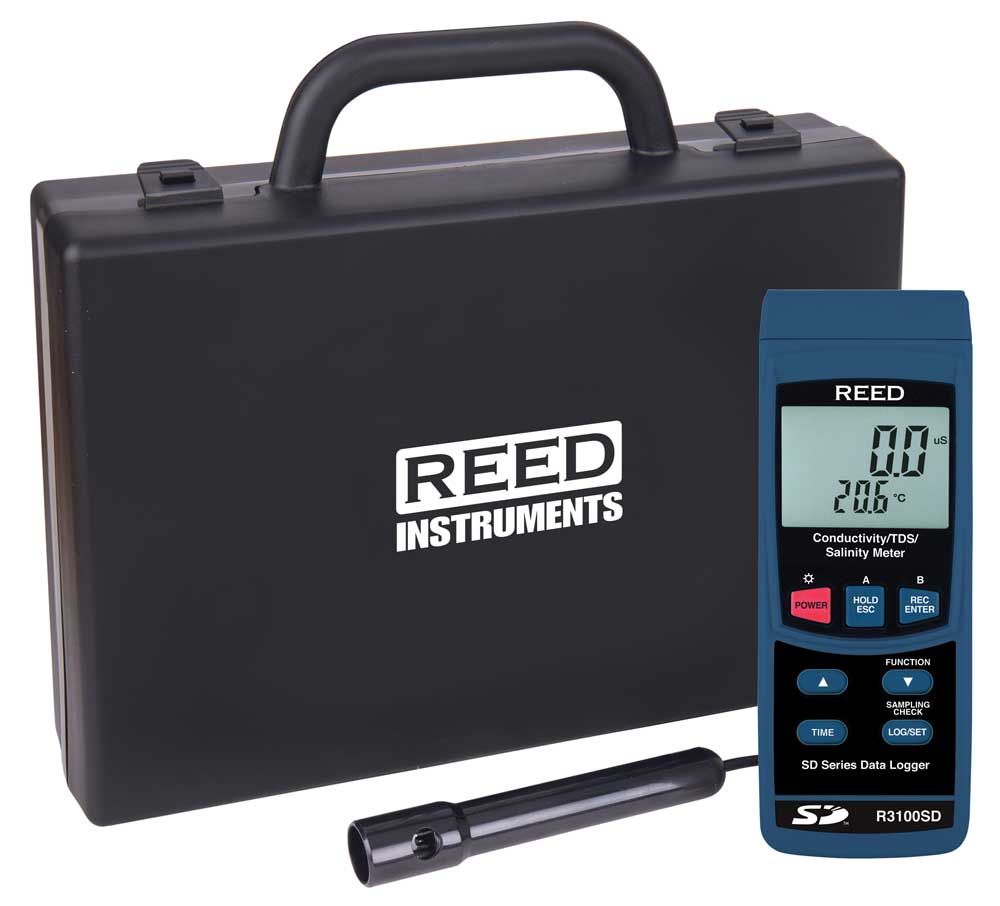

What's included with the REED R3100SD

Data Logging Conductivity/TDS/Salinity Meter
Conductivity/TDS/Salt Probe
Hard Carrying Case
Batteries

Dive into the R3100SD Data Logging Conductivity/TDS/Salinity Meter

Water quality meters are used every day in wastewater plant laboratories, production facilities and aquariums to ensure quality standards are met. The R3100SD Data Logging Conductivity/TDS/Salinity Meter is a real-time data logger with integrated SD memory card that measures/records conductivity, total dissolved solids (TDS) and salt levels in water. This meter also features an easy-to-read backlit LCD display, keypad with data hold and Max/Min functions and the ability to automatically record by selecting a desired sampling rate from 1 to 3600 seconds.

Meet the SD Series Family of Real-Time Data Loggers

Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
