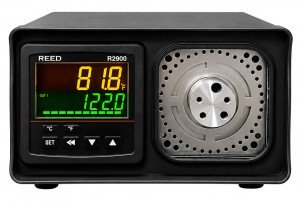

REED R2900 Dry Block Calibrator, 91 to 572°F (33 to 300°C)
Model: R2900 | UPC: 800837007292
REED R2900 Dry Block Calibrator, 91 to 572°F (33 to 300°C)
Model: R2900 | UPC: 800837007292
Designed to calibrate RTDs, thermocouples, and small bimetal thermometers.
REED R2900 Offers
This Dry Block Calibrator delivers precise temperature calibration within a broad range of 91 to 572°F (33 to 300°C).
The R2900 has been designed with multiple aperture options in order to meet both industrial and laboratory requirements. Ideal for calibrating RTDs, thermocouples, and small bimetal thermometers, this dry block offers a versatile and efficient solution for maintaining accuracy in temperature measurement devices.
Features
- Designed to calibrate RTDs, thermocouples, and small bimetal thermometers
- 91 to 572°F (33 to 300°C)
- Dual LED display allow simultaneous monitoring of set and actual temperatures
- Accommodates multiple probe sizes with ⌀3.5mm (x2), ⌀4.2mm, ⌀5mm, and ⌀6.8mm apertures
- User selectable °F or °C
REED R2900 Specifications
| Temperature Range | 91 to 572°F (33 to 300°C) |
| Accuracy | ≤212°F (≤100°C): ±1.6°F (0.8°C) 212 to 392°F (100 to 200°C): ±3.2°F (1.6°C) 392 to 572°F (200 to 300°C): ±5.6°F (2.8°C) |
| Stability | ≤212°F (≤100°C): ±0.2°F (0.1°C) 212 to 392°F (100 to 200°C): ±0.4°F (0.2°C) 392 to 572°F (200 to 300°C): ±0.8°F (0.4°C) |
| Resolution | 0.1°F (0.1°C) |
| Heating Time | Approx. 30 mins from 91 to 572°F (33 to 300°C) |
| Cooling Time | Approx. 30 mins from 572 to 122°F (300 to 100°C) |
| Well Depth | 3.54" (90 mm) |
| Aperture Diameter | ⌀3.5 mm(2), ⌀4.2 mm, ⌀5 mm, ⌀6.8 mm |
| Display | Dual LED |
| Power Supply | 110 V AC, 2.5 A |
| Product Certifications | CE |
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 15 to 80% |
| Dimensions | 7.1 x 4.5 x 8.8" (180 x 114 x 233 mm) |
| Weight | 6.6 lbs (3 kg) |
What's included with the REED R2900
- Power Cord
Ideal Applications for the REED R2900
- Calibrating thermocouples and RTDs to ensure precise temperature control in manufacturing and production machinery
- Maintaining accurate temperature conditions for experiments in research and testing environments by calibrating sensors
- Verifying and calibrating temperature-sensitive equipment for compliance in food safety and quality control processes
- Ensuring efficient heating and cooling operations by calibrating thermocouples and RTDs used in HVAC systems
- Validating temperature accuracy in drug production and storage through calibration of critical sensors
- Supporting the calibration of temperature sensors used in power generation and utilities for operational consistency
