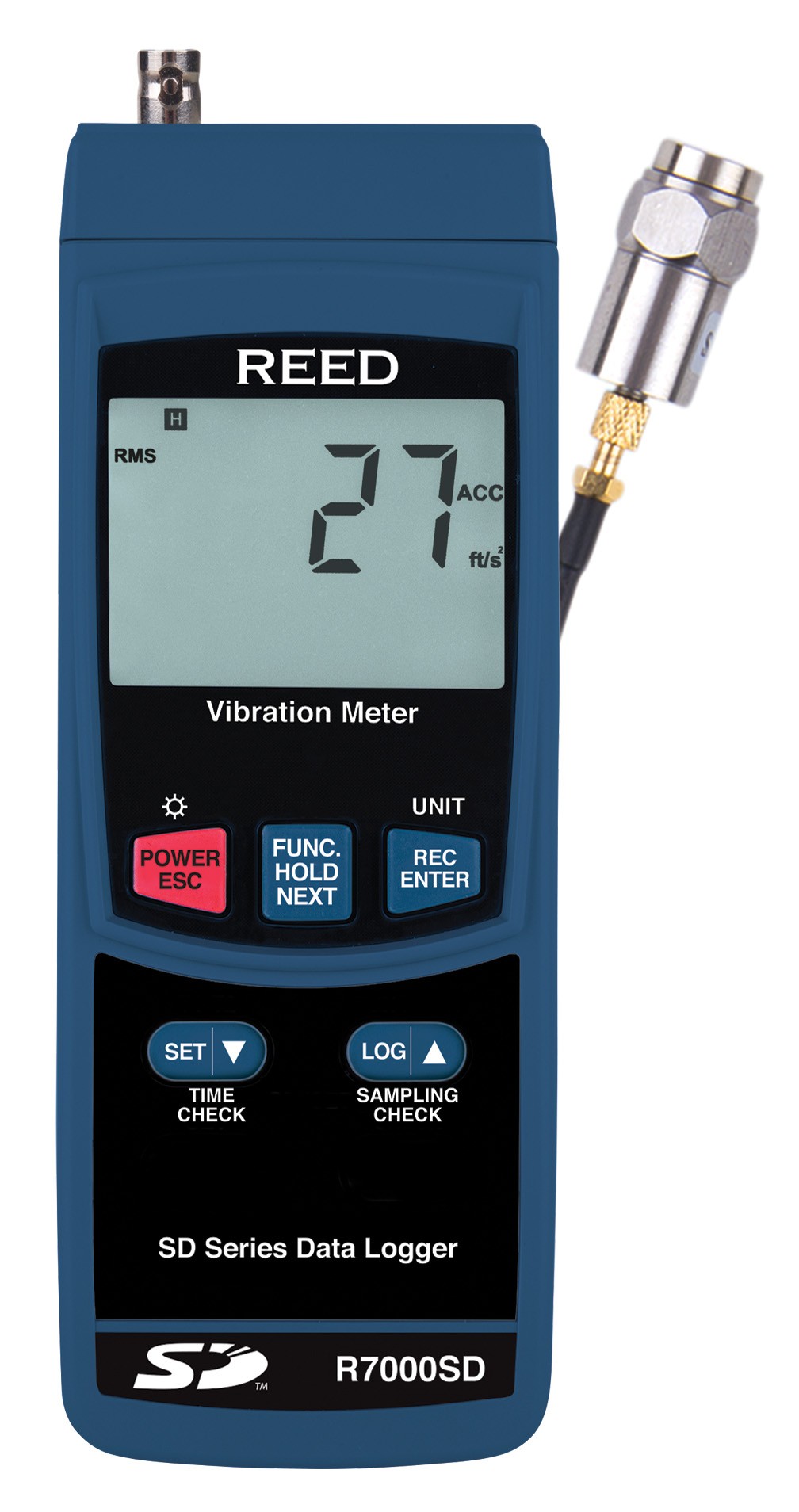

REED R7000SD Data Logging Vibration Meter
Model: R7000SD | UPC: 800837004864
REED R7000SD Data Logging Vibration Meter
Model: R7000SD | UPC: 800837004864
Real-time data logger with integrated SD memory card measures/records velocity and acceleration to determine vibration levels in machinery.
REED R7000SD Offers
The R7000SD measures velocity and acceleration to determine vibration levels in machinery while meeting ISO2954 standards and features RMS, Peak hold, Data hold, Max/Min functions and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
Features
- Measures velocity and acceleration to determine vibration level
- User selectable unit of measure (metric or imperial)
- RMS, Peak hold, Data hold and Max/Min functions
- 10Hz to 1kHz frequency range
- Basic accuracy of ±5%
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Meets ISO 2954 standards
- Low battery indicator and auto shut off
REED R7000SD Specifications
| Acceleration | |
| Measuring Ranges | 0.5 to 199.9m/s2 0.05 to 20.39g 2 to 656ft/s2 |
| Accuracy | ±(5% + 5 dgt) |
| Resolution | 0.1m/s2 0.01g 1ft/s2 |
| Velocity | |
| Measuring Ranges | 0.5 to 199.9mm/s 0.05 to 19.99cm/s 0.02 to 7.87in/s |
| Accuracy | ±(5% + 5 dgt) |
| Resolution | 0.1mm/s 0.01cm/s 0.01in/s |
| General Specifications | |
| Response Time | 1 second |
| Frequency Range | 10Hz to 1KHz |
| Display | 4-digit dual LCD |
| Backlit Display | Yes |
| RMS, Peak and Max Hold Measurements | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Zero Adjustment | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Probe Cable Length | 47.2" (1.2m) |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 85% |
| Dimensions | Instrument: 9.7 x 2.7 x 1.8" (203 x 76 x 38mm) Probe: 1.5 x 0.6" (37 x 16mm) |
| Weight | Instrument: 17.3oz (515g) Probe: 3.5oz (99g) |
What's included with the REED R7000SD
- Data Logging Vibration Meter
- Vibration Probe with 47.2" (1.2m) Cable
- Hard Carrying Case
- Batteries
Vibration screening made easy with the REED R7000SD Data Logging Vibration Meter

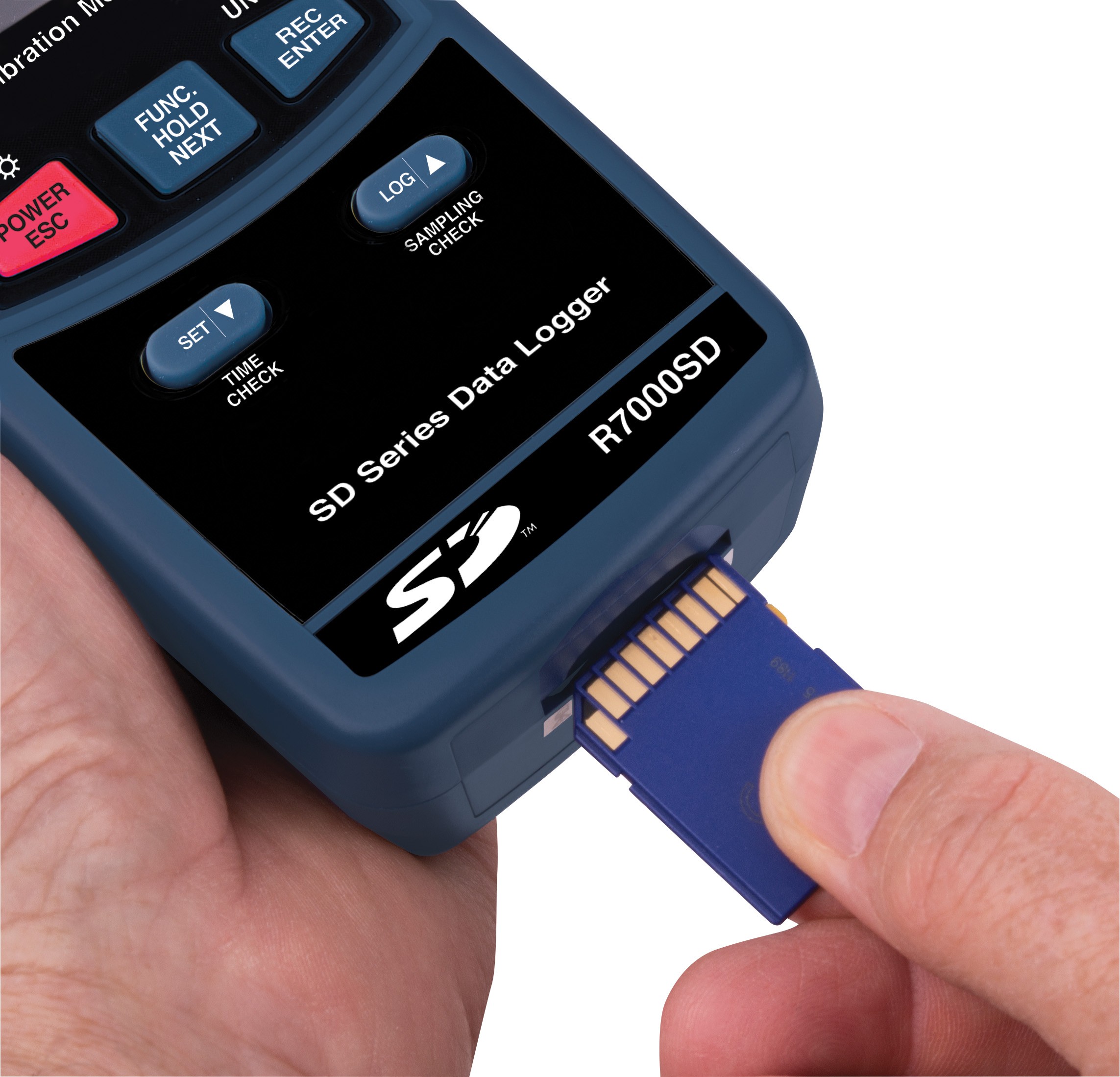

Vibration screening is one of the most effective ways to detect and prevent equipment failure or downtime and in worst cases, personal harm. Screen for most faults including imbalance, misalignment, looseness and late-stage bearing wear, providing warning of an impending failure or downtime. A data logging vibration meter (like the REED R7000SD) that measures velocity and acceleration to determine vibration levels in machinery is the perfect tool to monitor vibration. Save yourself a lot of work with the data logging features of this model. As a data logger, its capacity to automatically monitor and record environmental parameters over time, allow conditions to be measured, documented, analyzed and validated in 3 easy steps. Check out how in this quick video… Record data, save it on an SD card and quickly generate an Excel file - See 1:01. 1. Insert memory card 2. Record the needed data 3. Insert memory card in PC and open with Excel The REED R7000SD Data Logging Vibration Meter comes complete with a vibration probe, hard carrying case, and batteries. Not to mention a full list of optional accessories… View the complete list of accessories at 1:35. We know you want to know more about this meter! View a quick list of the specifications at 1:41.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R7000SD
- Evaluation of rotational industrial equipment (fans, pumps, turbines, compressors, conveyors, motors and bearings)
- Equipment shock and pulsation checks
- Preventative maintenance programs
- Power hand tools and transportation equipment
