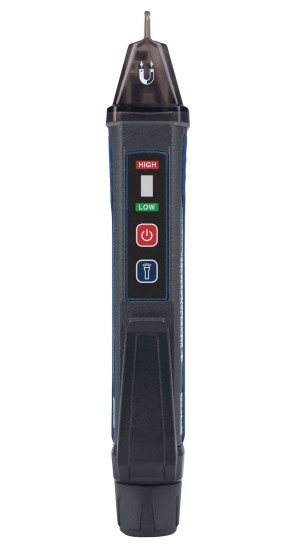

REED R5120 Non-Contact Voltage and Magnetic Field Detector-

REED R5120 Non-Contact Voltage and Magnetic Field Detector-REED R5120 3

REED R5120 Non-Contact Voltage and Magnetic Field Detector-REED R5120 4

◀ ▶

datasheet manual

Ask an Expert

REED R5120 Non-Contact Voltage and Magnetic Field Detector

Model: R5120 | UPC: 800837005960

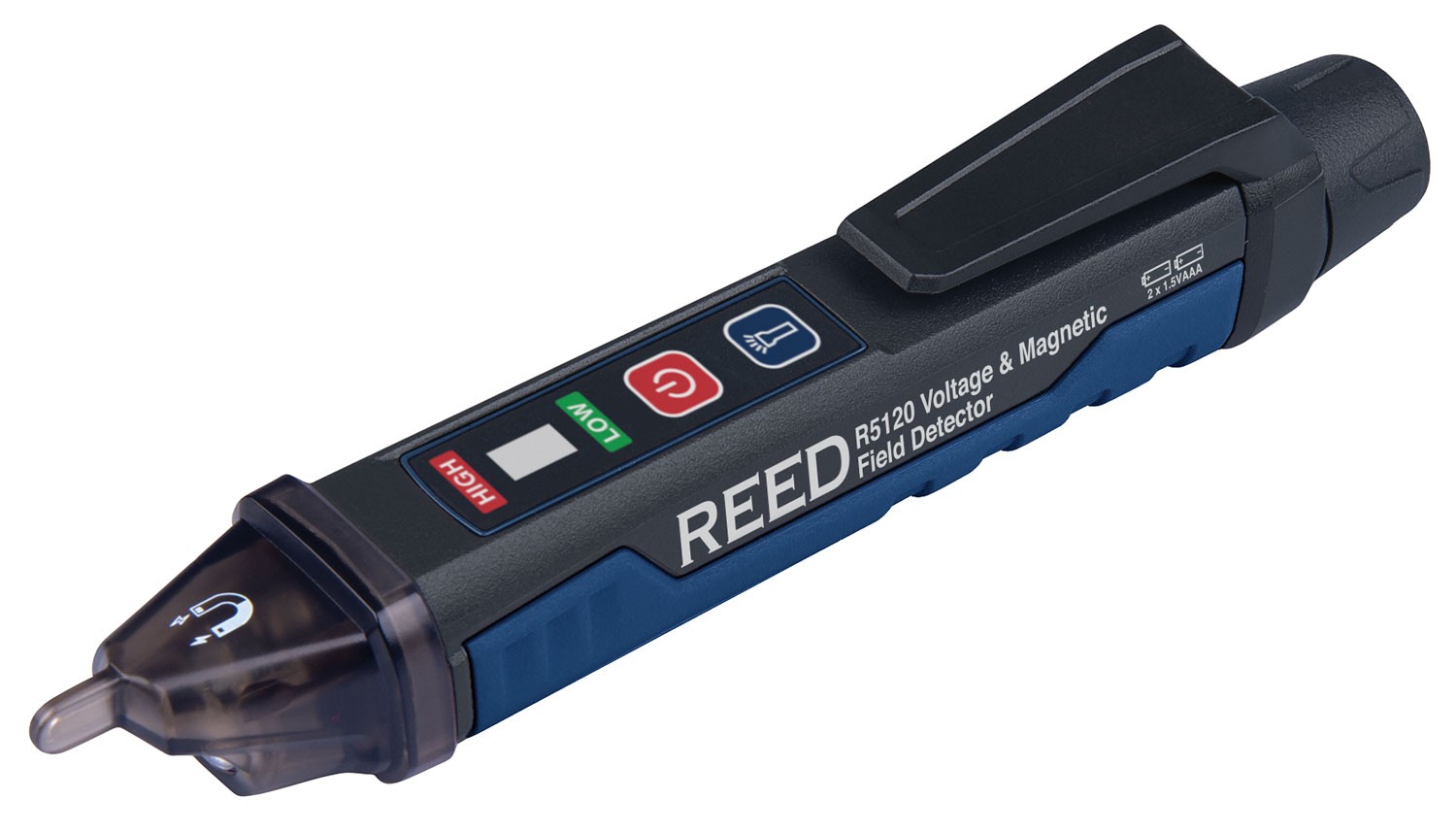

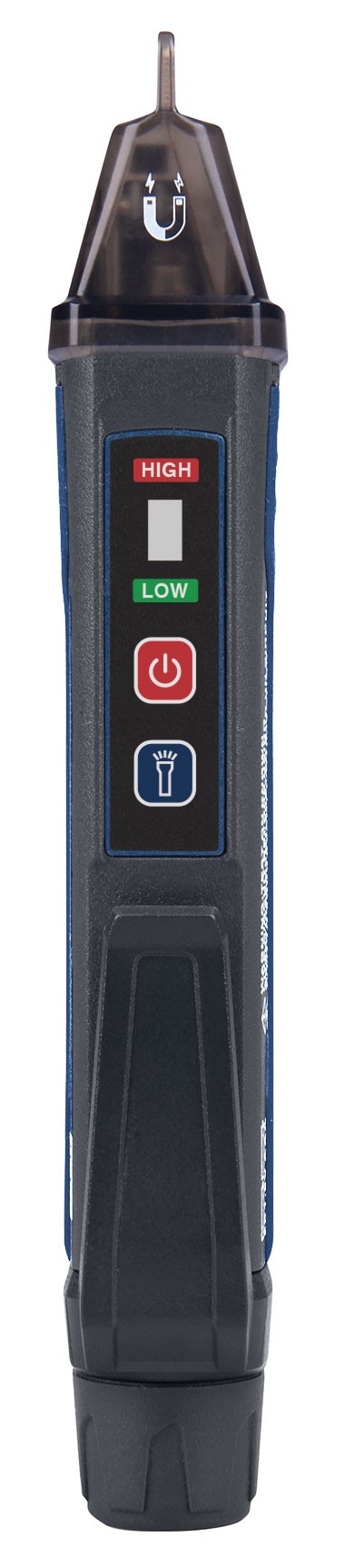

AC voltage and magnetic field detector with built-in flashlight.

REED R5120 Offers

This Voltage Detector has the ability to detect the presence of AC voltage from a safe distance. The R5120 also features a magnetic field detector to determine whether or not components are working properly. Two voltage ranges allow it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring.

Features

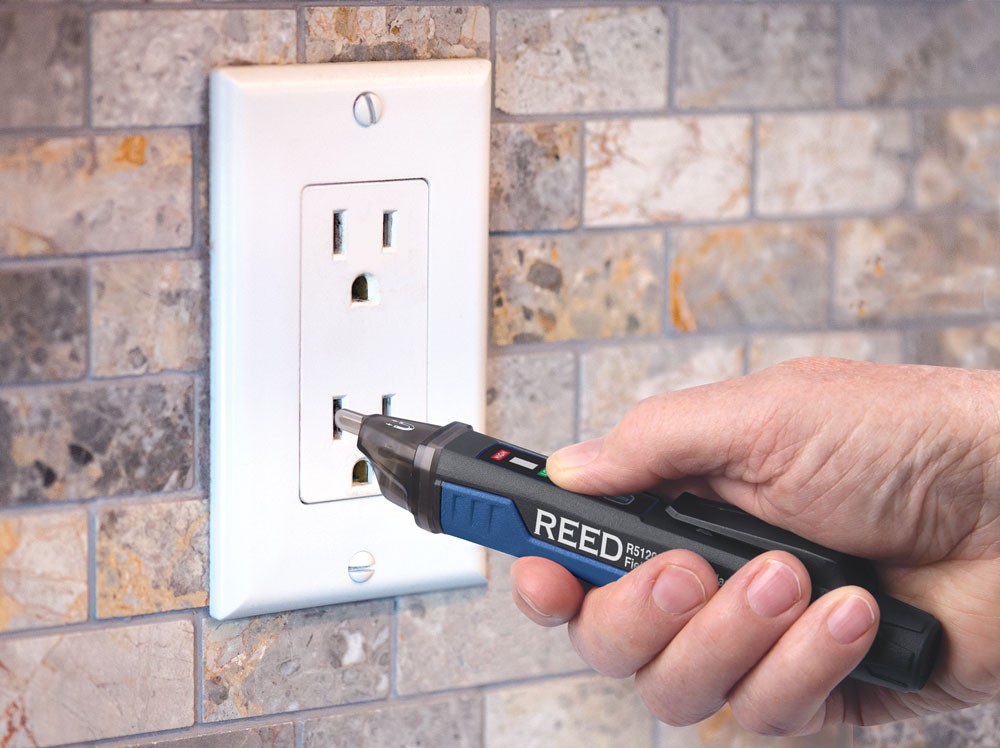

Check receptacles or insulated wire for presence of AC voltage
Quickly determine the presence of magnetic fields
Double insulated housing for increased safety
Audible (buzzer) and visual (LED) indicators

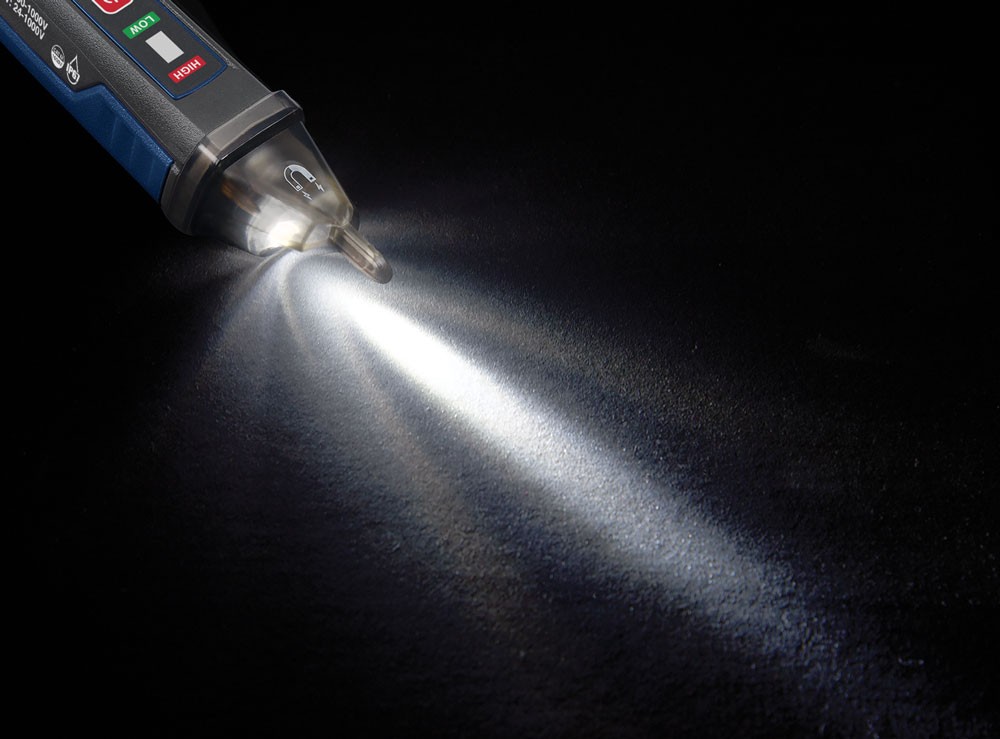

Built-in flashlight
Pocket clip
Auto shut-off
Cat. IV 1000V safety rating

REED R5120 Specifications

Voltage Range	Low voltage mode: 24 to 1000VAC High voltage mode: 90 to 1000VAC
Frequency Range	50 to 60Hz
Magnetic Field Detection	Yes
Built-in Flashlight	Yes
Pocket Clip	Yes
Alarm	Yes (audio/visual)
Auto Shut-off	Yes (after 5 minutes)
Drop Tested	Yes, 6.6' (2m)
Low Battery Indicator	Yes
Power Supply	2 x AAA batteries
Overvoltage Category	CAT. IV 1000V
Product Certifications	CE, IP67, ETL (Conforms to UL STD 61010-1, 61010-2-030, Certified to CSA STD C22.2 No. 61010-1, 61010-2-030)
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 122°F (-20 to 50°C)
Operating Humidity Range	0 to 80%
Maximum Operating Altitude	6561' (2000m)
Dimensions	6.3 x 1 x 0.9" (160 x 25 x 22mm)
Weight	2.5oz (72g)

What's included with the REED R5120

Non-Contact Voltage and Magnetic Field Detector
Batteries

REED R5120 Non-Contact Voltage and Magnetic Field Detector

The REED R5120 is a versatile non-contact AC voltage and magnetic field detector equipped with a built-in flashlight for added convenience in dark or tight spaces. Designed with safety and functionality in mind, this tool allows users to detect the presence of AC voltage without making direct contact—perfect for electricians, maintenance professionals, and DIYers alike.

Ideal Applications for the REED R5120

Determine presence of AC Voltage before working on a circuit
Magnetic field detection quickly determines if components are properly working (i.e. Solenoid valves, relays, contactors, permanent magnets, and electromagnets)
