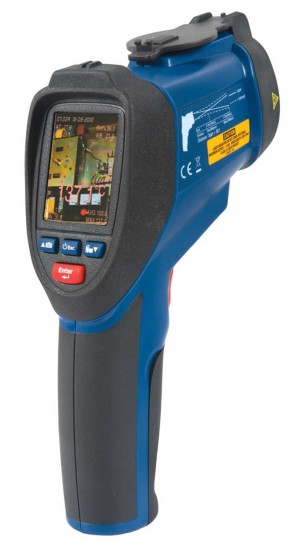

REED R2020 Video Infrared Thermometer, 50:1, 3992°F (2200°C)
Model: R2020 | UPC: 800837001009
REED R2020 Video Infrared Thermometer, 50:1, 3992°F (2200°C)
Model: R2020 | UPC: 800837001009
Built-in camera capable of taking pictures and recording video. Easily review saved data on the 2.2" color TFT LCD or transfer information to a computer with the included USB cable (no software required).
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R2020 Offers
This Video Infrared Thermometer combines the accuracy and convenience of a traditional infrared thermometer with the visual advantage of a digital camera. The R2020 is capable of measuring high temperatures up to 3992°F (2200°C) and includes a number of features including ambient temperature, humidity, dew point and wet bulb temperature measurements.
This instrument can also be mounted to a tripod and setup to continuously monitor an application while graphing live results on-screen.
Features
- Dual lasers assist with target area identification
- 50:1 distance to spot size ratio
- Take photos and record video with built-in camera
- Datalogging capabilities include on-screen graphing with time and date stamp
- Digitally adjustable emissivity
- Type K thermocouple input for contact measurement
- Ambient air temperature, humidity, dew point and wet bulb temperature measurement
- Max, min, avg and differential readings
- High and low alarms
- Trigger lock feature for continuous monitoring
- Export data to PC with included USB cable (no software required)
REED R2020 Specifications
| IR Temperature | |
| Range | -58 to 3992°F (-50 to 2200°C) |
| Accuracy | -58 to 68°F (-50 to -20°C): ± 6.3°F(3.5°C) 68 to 932°F (20 to 500°C ): ±1% rdg. +1.8°F (1.0°C) 932 to 1832°F (500 to 1000°C): ±1.5% rdg. 1832 to 3992°F (1000 to 2200°C): ±2.0% rdg. |
| Resolution | 0.1°F (0.1°C) |
| Contact Type K T/C Temperature | |
| Range | -58 to 2498°F (-50 to 1370°C) |
| Accuracy | -58 to 32°F (-50 to 0°C): ±4. 5°F (2.5°C) 32 to 2498°F (0 to 1370°C): ±0.5% rdg. + 2.7°F (1.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Ambient Temperature | |
| Range | 32 to 122°F (0 to 50°C) |
| Accuracy | 50 to 104°F (10 to 40°C): ±0.9°F (0.5°C) >104°F (40°C): ±1.8°F (1.0°C) |
| Dewpoint and Wet Bulb Temperature | |
| Range | 32 to 122°F (0 to 50°C) |
| Accuracy | <40°C: ±0.9°F (0.5°C) >40°C: ± 1.8°F (1.0°C) |
| Relative Humidity | |
| Range | 0 to 100% RH |
| Accuracy | 0 to 20%: ±5% 20 to 40%: ±3.5% 40 to 60%: ±3% 60 to 80%: ±3.5% 80 to 100%: ±5% |
| General Specifications | |
| Optical Resolution (D:S) | 50:1 |
| Dual Laser | Yes |
| Spectral Response | 8 to 14µm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 150ms |
| Display Size/Type | 2.2" TFT Color LCD |
| Backlit Display | Yes |
| Display Hold | Yes |
| High/Low Alarms | Yes (Audible (beep) and visual (on-screen)) |
| Max/Min | Yes |
| Average and Differential | Yes |
| Datalogging Capabilities | Yes |
| F/C Switchable | Yes |
| Trigger Lock | Yes |
| Autoshut off | Yes (adjustable 3,15,60mins) |
| Internal Memory | Yes (72mb), Expandable with micro SD card |
| Thermocouple Input | Yes |
| Tripod Mountable | Yes |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Power Supply | Li-Ion rechargeable battery |
| Battery Life | Approx. 4 hours continuous use |
| Battery Charge Time | Approx. 2 hours |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-90% |
| Dimensions | 8.1 x 2.4 x 6.1" (205 x 62 x 155mm) |
| Weight | 14.5 oz (410g) |

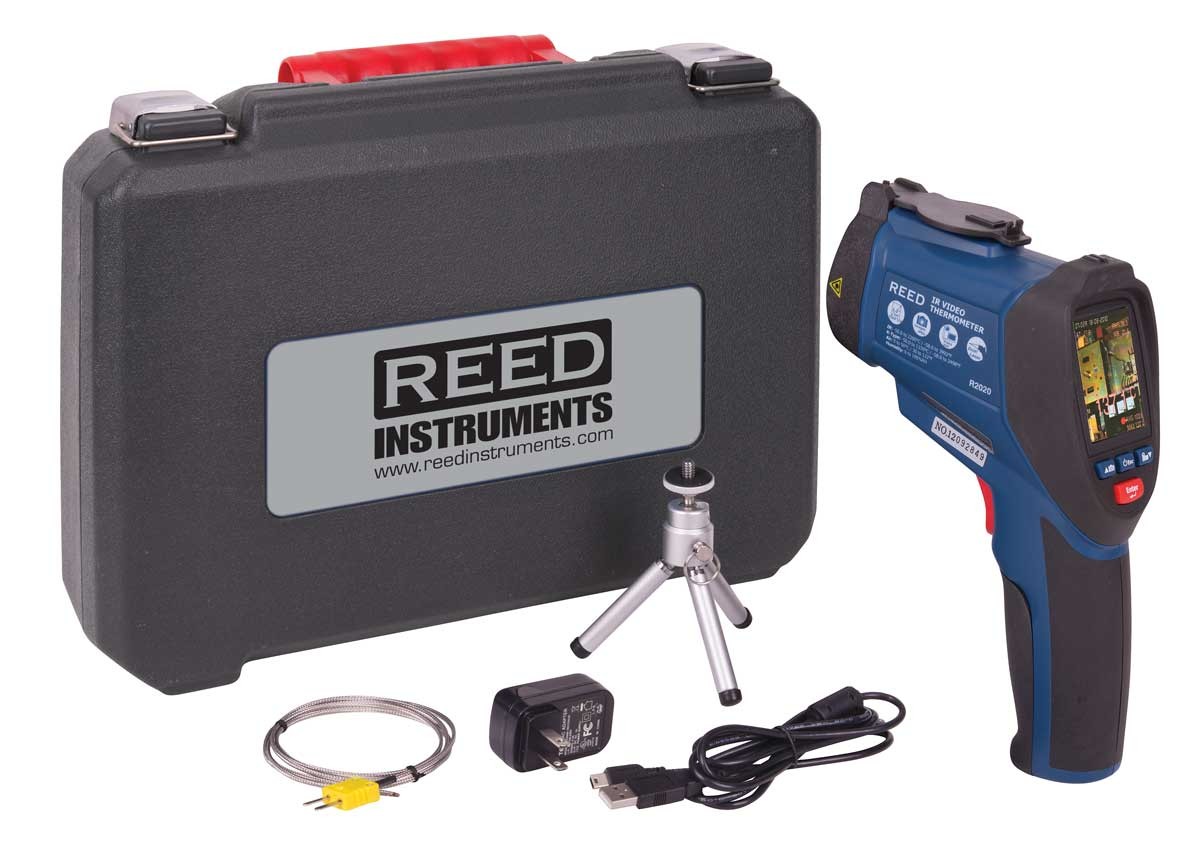

What's included with the REED R2020
- Video Infrared Thermometer
- Type K Thermocouple Probe
- AC Adapter
- USB Adapter
- Mini-Tripod
- Li-ion Rechargeable Battery
- Hard Carrying Case
Ideal Applications for the REED R2020
- Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
- Calibration and control of heater and oven temperatures
- Monitoring materials in processes involving heating and/or cooling
- Quality control monitoring
- Research and development applications
- Automotive diagnostics
- Conduct HVAC/R energy audits to determine leaks, infiltration
