REED R8800 Voltage/Current Calibrator
Model: R8800 | UPC: 800837001528
REED R8800 Voltage/Current Calibrator
Model: R8800 | UPC: 800837001528
The Current/Voltage Calibrator can bring measured values as close as possible to the true value, and provides a precision source for current and voltage measurements.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R8800 Offers
This voltage/current calibrator calibrates and measures process signals. The R8800 is able to power and measure a two-wire current loop and features an easy-to-read backlit LCD display for use in dimly lit environments.
Features
- Measure and calibrate current signals
- Power or measure two-wire current loops
- Easy-to-read backlit LCD display
- Cat. III 600V safety rating
REED R8800 Specifications
| Source and Measure (mA) | |
| Measuring Range | 0 to 19.99mA 0 to 24mA |
| Accuracy | ±(0.25% FS + 1 dgt.) ±(0.5% FS + 1 dgt.) |
| Resolution | 0.01mA 0.1mA |
| Source (mV) | |
| Measuring Range | -199.9mV to 199.9mV |
| Accuracy | ±(0.25% FS + 1 dgt.) |
| Resolution | 0.1mV |
| General Specifications | |
| Range Selection | Manual |
| Display | LCD |
| Backlit Display | Yes |
| Display Hold | Yes |
| Kick Stand | Yes |
| Power Supply | 9V battery |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 5.9 x 2.8 x 1.6" (150 x 70 x 40mm) |
| Weight | 8.2oz (232g) |

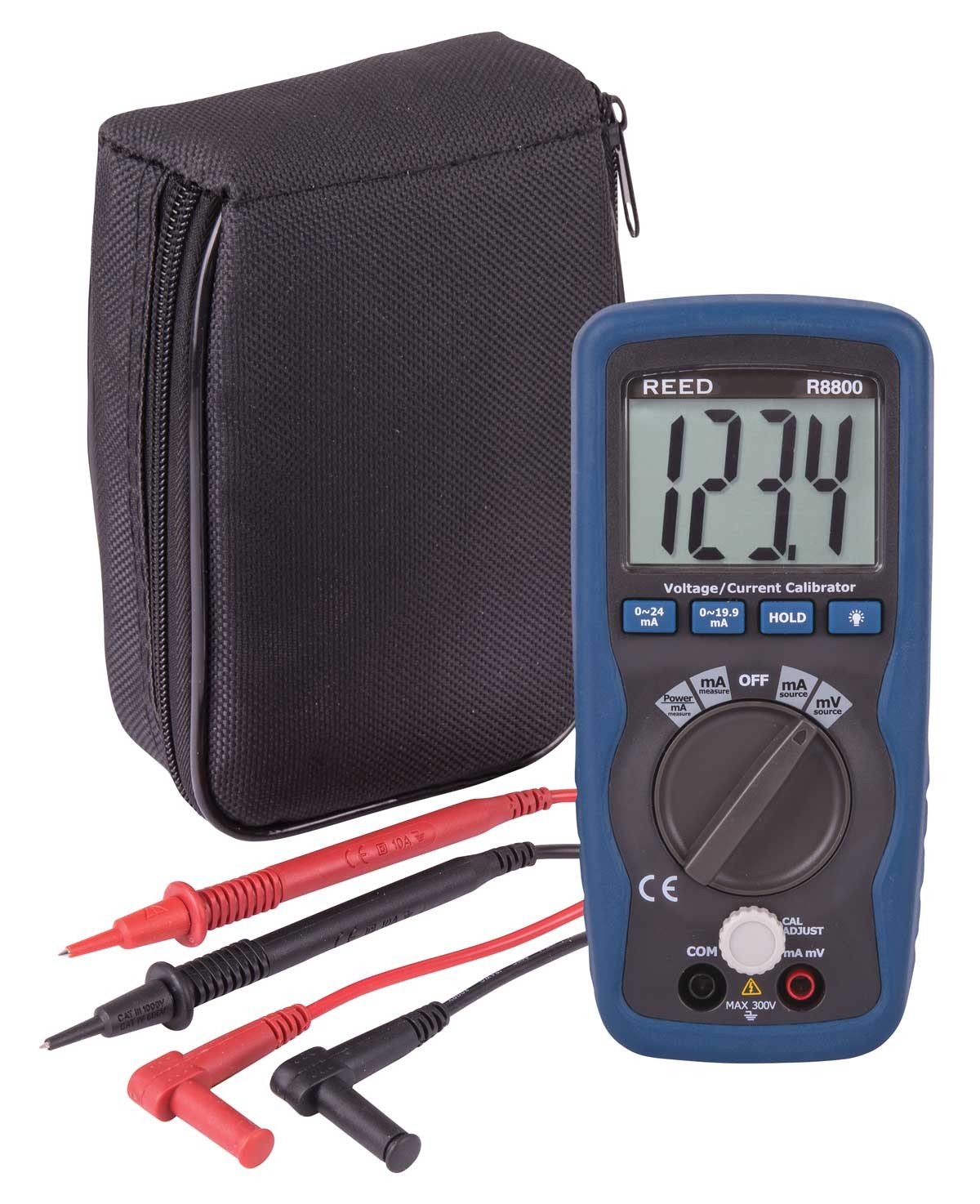

What's included with the REED R8800
- Voltage/Current Calibrator
- Test Leads
- Soft Carrying Case
- Battery
Ideal Applications for the REED R8800
- Research and development
- Semiconductor and process control
- Calibrating voltage input signal conditioners
- Testing valve positioners and field testing loop powered isolators
datasheet for the REED R8800 Voltage/Current Calibrator
manual for the REED R8800 Voltage/Current Calibrator
