REED R8500 Recordable Video Inspection Camera
Model: R8500 | UPC: 800837002822
REED R8500 Recordable Video Inspection Camera
Model: R8500 | UPC: 800837002822
8mm camera diameter and 2.7" color TFT LCD monitor. Saves high resolution images and records video.
REED R8500 Offers

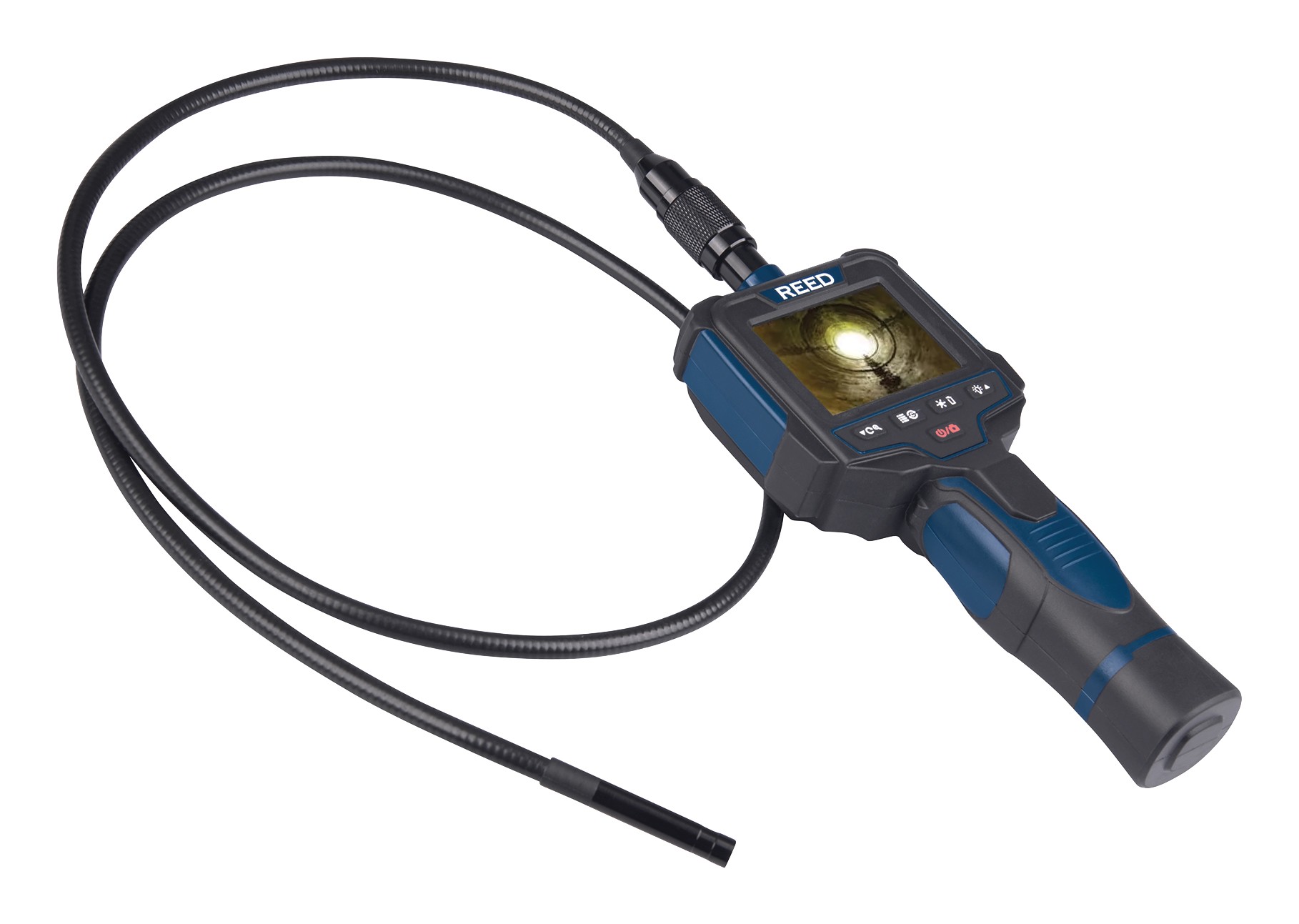

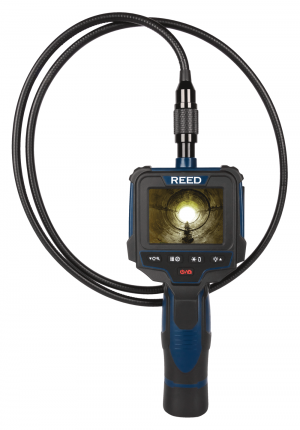

This high resolution video inspection camera features a 39" (1m) gooseneck cable with 8mm camera. The R8500 is capable of saving images and recording video on an external memory card (sold separately). The R8500 includes a camera mountable magnet, hook and mirror to assist with specific applications.
Features
- Camera and video functions save high resolution images and video
- Comfortable pistol grip design
- High resolution 2.7" color LCD monitor

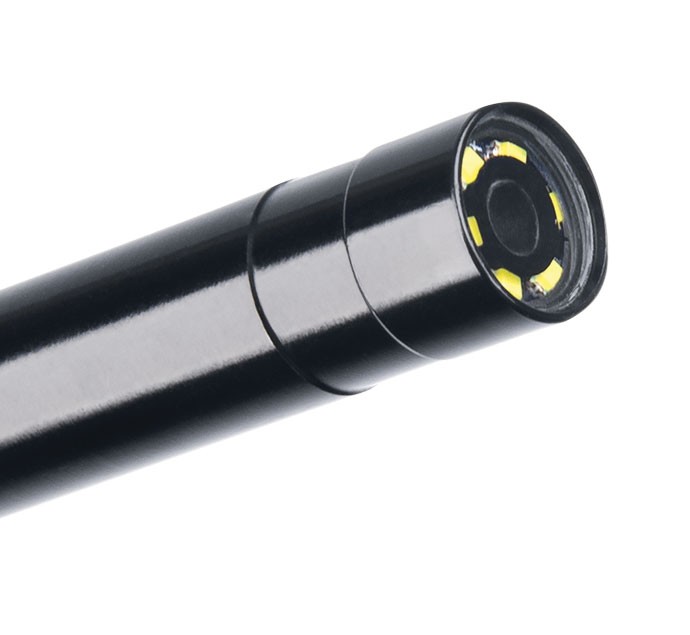

- 8mm waterproof (IP67) camera head
- Gooseneck cable retains configured shape
- Cable expandable up to 30ft. (~9m) with extensions (optional)
- Six high visibility LED lights provide illumination in dimly lit environments
- Expandable memory up to 32Gb (SD card sold separately)
- Mirror rotation and Picture-in-Picture functions
- Low battery indicator and auto shut off
REED R8500 Specifications
| Camera | |
| Lens Sensor Resolution | 640 x 480 |
| Camera Diameter | 0.31" (8mm) |
| Short Distance Focus | 1.18 to 3.15" (3 to 8cm) |
| Depth of Field | 10mm to infinity |
| Viewing Angle | 30mm to 80mm |
| FOV | 54° |
| General Specifications | |
| Display | 2.7" Color TFT LCD |
| Display Resolution | 320 x 240 |
| LCD Brightness Adjustment | Yes (12 levels) |
| Frames per Second (FPS) | 30 |
| Standard Gooseneck/Cable Length | 39" (1m) |
| Rotate Display | Yes (180°) |
| Playback | Photo (JPEG) and Video (AVI) |
| Digital Zoom | 6x |
| Memory | SD Card (up to 32Gb) |
| Picture-in-Picture Mode | Yes |
| Time and Date Stamp | Yes |
| Data Output | USB / SD Card |
| Camera LEDs | Yes (6 white LEDs) |
| Camera LED Brightness Adjustment | Yes (12 levels) |
| Low Battery Indicator | Yes |
| Power Supply | 4 AA Batteries |
| Auto Power Off | Yes (Adjustable 5, 10, 15, 20min) |
| Product Certifications | CE, IP67 |
| Operating Temperature | -4 to 158°F (-20 to 70°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Dimensions | 9 x 3.5 x 1.7" (230 x 90 x 42mm) |
| Weight | 7.4oz (210g) |
What's included with the REED R8500
- Video Borescope
- 8mm Camera Head
- Magnet, Hook and Mirror Attachments
- Batteries
- USB Cable
- Hard Carrying Case
R8500 Recordable Video Inspection Camera
Ideal Applications for the REED R8500
- Building and home inspection
- Pest control
- HVAC/R and refrigeration
- Visual inspections of aircraft engines
- Steam turbines
- Automotive and truck engines
- Manufacturing of machined or cast parts
- Inspection of critical interior surfaces for burrs, surface finish or complete through-holes
