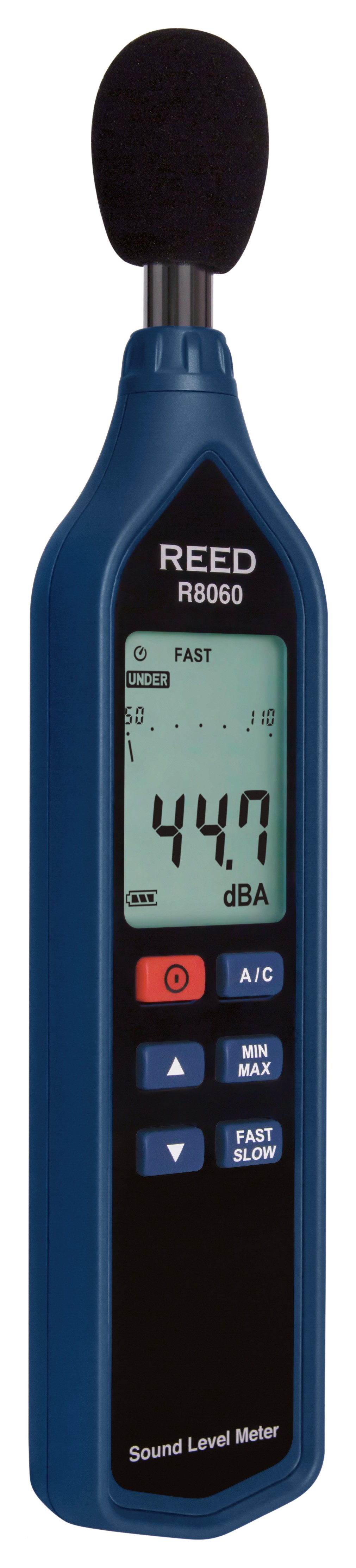

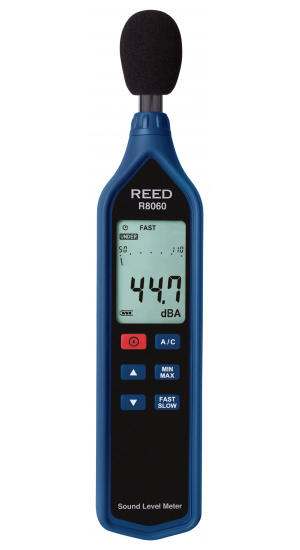

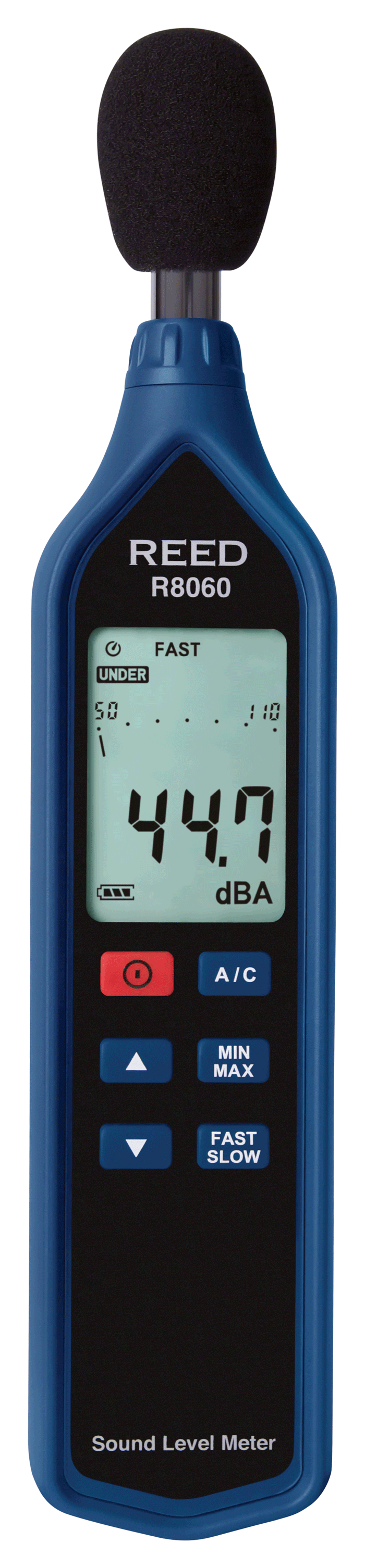

REED R8060 Sound Level Meter with Bargraph
Model: R8060 | UPC: 800837001498
REED R8060 Sound Level Meter with Bargraph
Model: R8060 | UPC: 800837001498
Triple range type 2 sound level meter with LCD display, on-screen digital analog bargraph and AC/DC output for connection to chart recorders and dataloggers.
REED R8060 Offers
This sound level meter meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.
Features
- High accuracy of ±1.4dB meets Type 2 standards
- Triple range measurement (60dB dynamic range)
- A & C frequency weighting
- Fast & Slow time weighting
- Easy-to-read LCD display
- Digital analog bargraph
- Min/Max hold
- AC/DC output signal for use with dataloggers
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R8060 Specifications
| Measuring Ranges | 30 to 130dB Low: 30 to 90dB Med: 50 to 110dB High: 70 to 130dB |
| Dynamic Range | 60dB (in each range) |
| Accuracy | ±1.4dB |
| Resolution | Digital: 0.1dB Analog: 2dB |
| Response Time | Digital: 500ms Analog: 100ms |
| Frequency Range | 20Hz to 8kHz |
| Frequency Weighting | A, C |
| Time Weighting | Fast/Slow (125ms and 1s) |
| Microphone | 0.5" (12.7mm) electret condenser |
| Digital Analog Bargraph | Yes (30 segment) |
| Display | 4-digit LCD |
| Min | Yes |
| Max | Yes |
| Alarm Indicators | Under and Over (visual on-screen) |
| Auto Shut-off | Yes (after 30 mins/off) |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 9V battery |
| Output | Yes (AC/DC) |
| Battery Life | Approx 50 hours |
| Product Certifications | CE, IEC 61672-1 Class 2 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Dimensions | 10.2 x 2.2 x 1" (258 x 55 x 25mm) |
| Weight | 6.5oz (185g) |

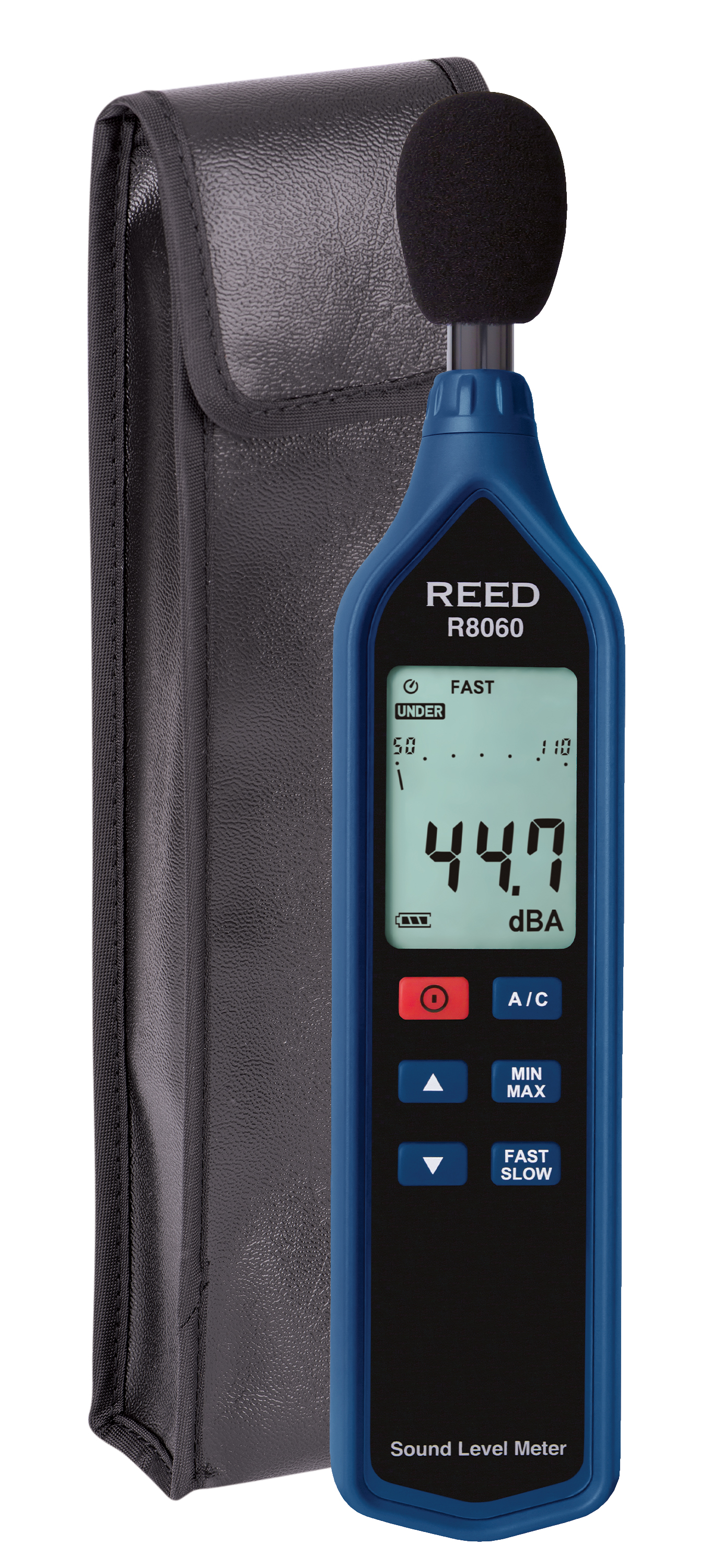

What's included with the REED R8060
- Sound Level Meter
- Windshield Ball
- Soft Carrying Case
- Battery
R8060 Sound Level Meter
This sound level meter provides accurate and fast responding triple range. It features a digital analog bargraph, an easy-to-read LCD display, A & C frequency weighting, as well as data hold and min/max hold functions. It is also compatible with the R8090 Sound Level Calibrator (sold separately).
How To: Calibrate your Sound Level Meter
Calibration is vital in ensuring that your sound level meter is in proper working condition when measuring noise. For the purpose of this video, we'll be using the R8080 Sound Level Meter and the R8090 Sound Level Calibrator. These steps will work for most sound level meters.
Comparing the REED line of Sound Level Meters: Which one is best for you?
Sound level meters are used every day by industrial maintenance teams as part of their preventative maintenance programs; health & safety departments who record acoustic levels during environmental impact studies and inspectors when auditing work environments to ensure safe conditions.
Ideal Applications for the REED R8060
- Preventative Maintenance
- Industrial Machinery/Equipment
- Construction Sites
- Ensuring Safe Working Conditions
- Public Venues / Concerts
- Code Enforcement
- Traffic
- Appliance Noise Testing
