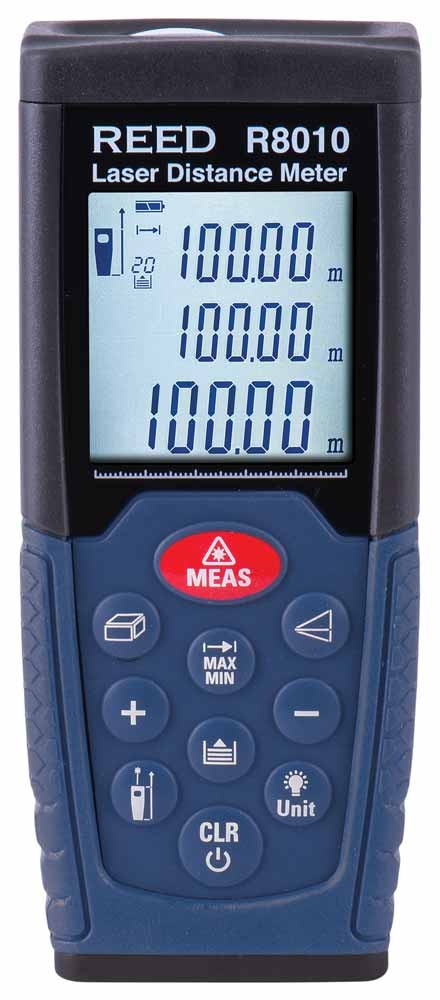

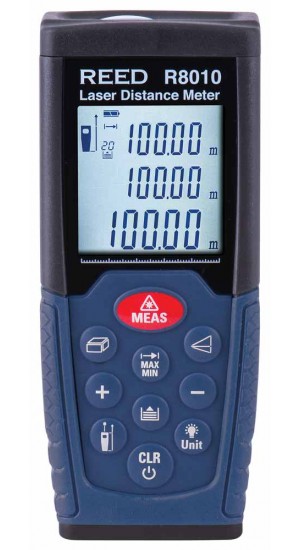

REED R8010 Laser Distance Meter, 328' (100m)
Model: R8010 | UPC: 800837004246
REED R8010 Laser Distance Meter, 328' (100m)
Model: R8010 | UPC: 800837004246
Dust and splash-proof (IP54), designed for one-handed operation.
REED R8010 Offers
This laser distance meter measures up to 328 feet (100 meters) and features a multi-line LCD display and the ability to calculate area, volume and sum of lengths. The R8010 is capable of retaining maximum and minimum readings and up to 20 measurements in memory.
Features
- Designed for one-handed operation
- User selectable unit of measure (imperial/metric)
- Laser target pointer
- Reference point selection (front or rear of instrument)
- Backlit multi-line LCD display
- Calculates Area, Volume and Sum of Lengths
- Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
- Max/Min functions
- Continuous measurement mode
- Internal memory saves up to 20 readings
- Dust and splash-proof (IP54)
- Low battery indicator and auto shut off
REED R8010 Specifications
| Measuring Range | 1.92" to 328' (5cm to 100m) |
| Accuracy |
±0.0018in/ft (±0.15mm/m) The standard level of uncertainty up to 10m is +/-1.5mm. After 10m, environmental factors can lead to the accuracy increasing by +/-0.15mm every meter. |
| Measuring Units | Meters, Inches, Feet |
| Sensor Type | Laser |
| Laser Type | 630 to 670nm, <1mW |
| Display | LCD (Multi-Line) |
| Backlit Display | Yes |
| Start Point Selection | Yes (Front/Back) |
| Reading Mode | 2 (Single/Continuous) |
| Maximum and Minimum Functions | Yes |
| Calculation Functions | Addition, Subtraction, Area, Volume, Sum of Lengths, 2 Point Indirect (Pythagoras), 3 Point Indirect |
| Internal Memory | Yes (Up to 20 Readings) |
| Response Time | 2 secs |
| Auto Shut-Off | Yes (After 3 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AAA Batteries |
| Battery Life | Up to 4,000 Measurements |
| Laser Class | Class II |
| Product Certifications | CE, RoHS, IP54 |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | <95% RH |
| Dimensions | 4.5 x 1.9 x 1.1" (110 x 46 x 28 mm) |
| Weight | 3.5oz (100g) |

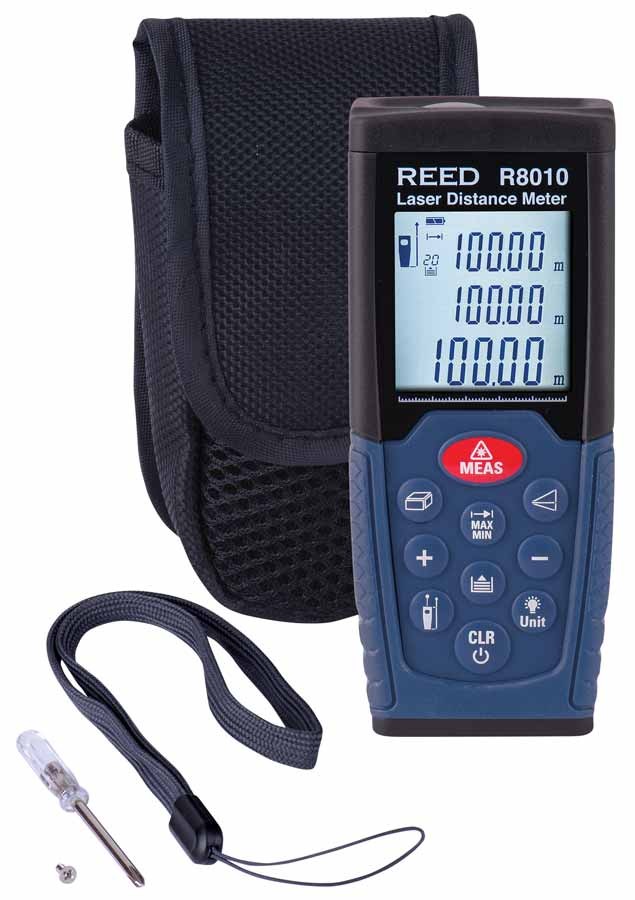

What's included with the REED R8010
- Laser Distance Meter
- Soft Carrying Case
- Wrist Strap
- Screwdriver
- 2 x AAA Batteries
R8010 Laser Distance Meter
Ideal Applications for the REED R8010
- Measuring conduit and wire lengths
- Light Retrofitting Projects
- Piping/exhausts/ventilation and equipment installation
- Conduit layout and installation
- Air ventilation and duct work positioning
- Air volume calculations
- Hot/cold water piping locations
- Determining wire length and duct sizing
- Floor plans
- Network room layout
