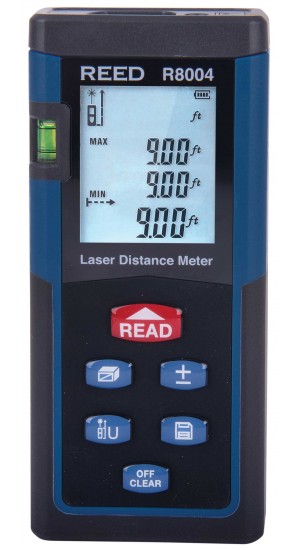

REED R8004 Laser Distance Meter, 131' (40m)
Model: R8004 | UPC: 800837004260
REED R8004 Laser Distance Meter, 131' (40m)
Model: R8004 | UPC: 800837004260
Designed for one handed operation, internal memory saves up to 30 measurements.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R8004 Offers
This laser distance meter measures up to 131 feet (40 meters) and features a backlit multi-line LCD display and the ability to calculate area, volume and sum of lengths. The R8004 is capable of retaining maximum and minimum readings and up to 30 measurements in memory.
Features
- Designed for one-handed operation
- User selectable unit of measure (imperial/metric)
- Laser target pointer
- Reference point selection (front or rear of instrument)
- Backlit multi-line LCD display
- Area, Volume and Max/Min functions
- Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
- Integrated bubble level
- Continuous measurement mode
- Internal memory saves up to 30 readings
- Low battery indicator and auto shut off
REED R8004 Specifications
| Measuring Range | 131' (40m) |
| Accuracy | ±(5.0mm+d x 5/100000) |
| Measuring Units | m, in, ft |
| Sensor Type | Laser |
| Laser Type | 630 to 670nm, <1mW |
| Display | LCD (multi-line) |
| Backlit Display | Yes |
| Start Point Selection | Yes (Front/Back) |
| Reading Mode | 2 (Single/Continuous) |
| Maximum and Minimum Functions | Yes |
| Calculation Functions | Addition, Subtraction, Area, Volume, Sum of Lengths, 2 point indirect (pythagoras), 3 point indirect |
| Internal Memory | Yes (up to 30 readings) |
| Response Time | 2 seconds |
| Auto Shut-off | Yes (after 150 seconds) |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AAA Batteries |
| Laser Class | Class II |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | <85% RH |
| Dimensions | 4.4 x 1.9 x 1.1" (112 x 50 x 25mm) |
| Weight | 3.5oz (100g) |

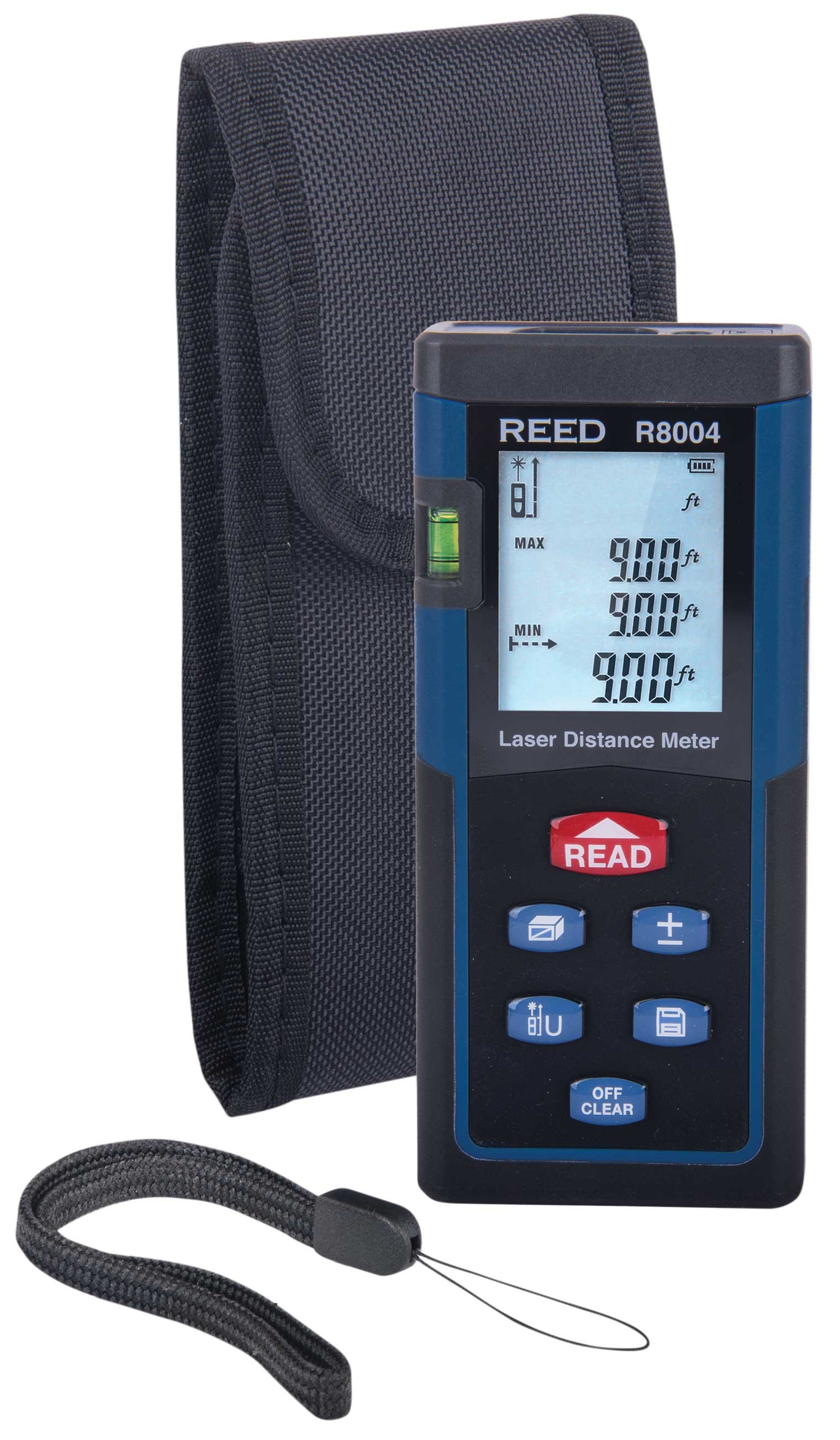

What's included with the REED R8004
- Laser Distance Meter
- Carrying Case
- Batteries
R8004 Laser Distance Meter
Ideal Applications for the REED R8004
- Measuring conduit and wire lengths
- Light retrofitting projects
- Piping/exhausts/ventilation and equipment installation
- Conduit layout and installation
- Air ventilation and duct work positioning
- Air volume calculations
- Hot/cold water piping locations
- Determining wire length and duct sizing
- Floor plans
- Network room layout
