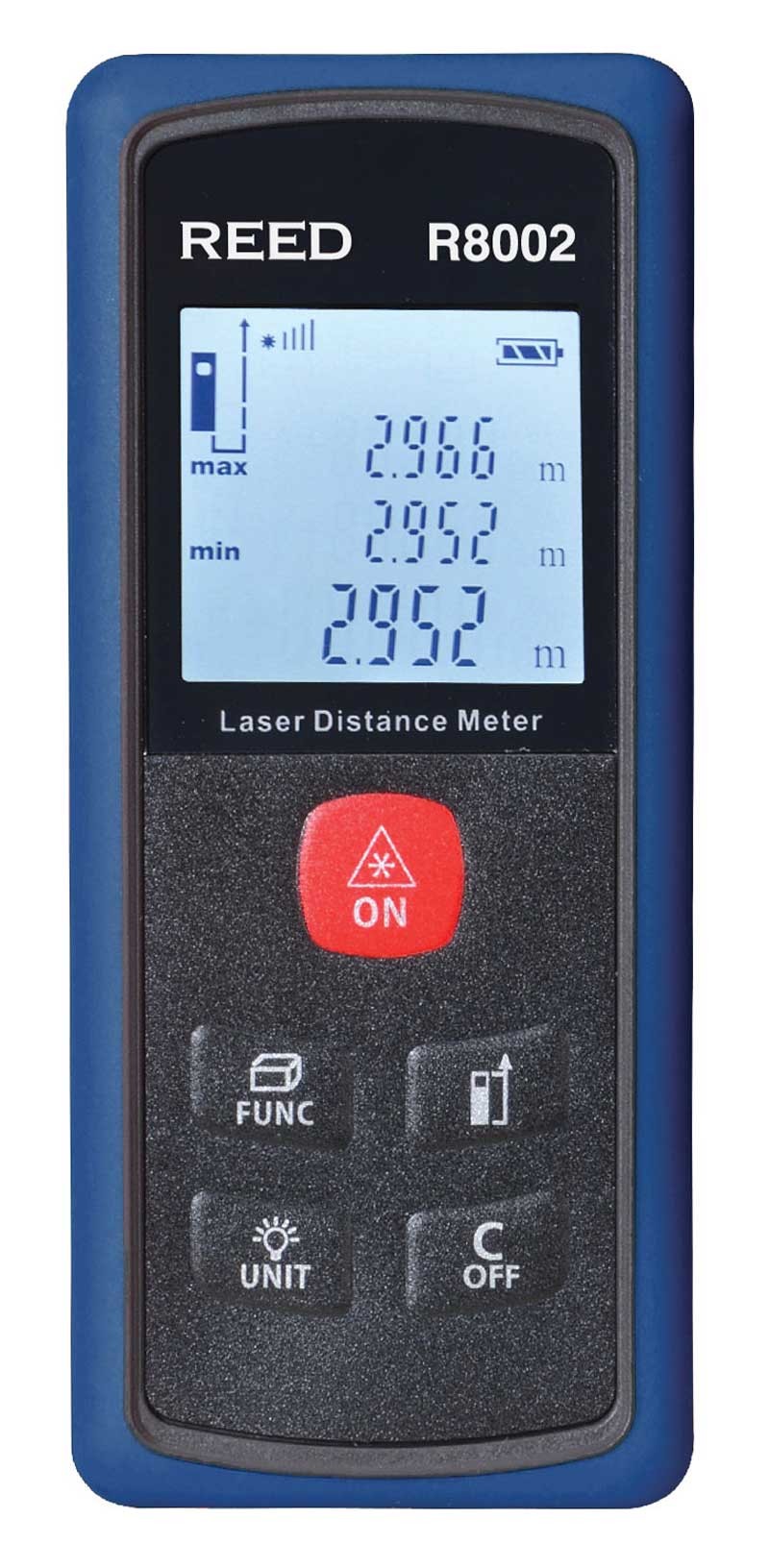

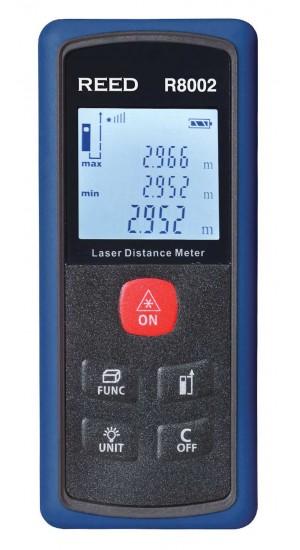

REED R8002 Laser Distance Meter, 148' (45m)
Model: R8002 | UPC: 800837001467
REED R8002 Laser Distance Meter, 148' (45m)
Model: R8002 | UPC: 800837001467
Designed for one handed operation, internal memory saves last 10 measurements.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R8002 Offers
This laser distance meter measures up to 148 feet (45 meters) and features a multi-line LCD display and the ability to calculate area and volume. The R8002 is capable of retaining maximum and minimum readings and memory automatically saves the last 10 readings.
Features
- Designed for one-handed operation
- User selectable unit of measure (imperial/metric)
- Laser target pointer
- Reference point selection (front or rear of instrument)
- Backlit multi-line LCD display
- Area, Volume and Max/Min functions
- Addition, Subtraction and indirect 2 /3 point (pythagoras) calculations
- Max/Min functions
- Continuous measurement mode
- Internal memory saves up to 10 last readings
- Low battery indicator and auto shut off
REED R8002 Specifications
| Measuring Range | 0 to 148' (0 to 45m) |
| Accuracy | ≤10m: ±2.00mm >10m: ±2mm ±0.05 (x distance in metres -10) |
| Sensor Type | Laser |
| Display | LCD (multi-line) |
| Backlit Display | Yes |
| Start Point Selection | Yes (Front/Back) |
| Reading Mode | 2 (Single/Continuous) |
| Max/Min Functions | Yes |
| Calculation Functions | Addition, Subtraction, Area, Volume, 2 point indirect (pythagoras), 3 point indirect |
| Internal Memory | Yes (up to 10 readings) |
| Low Battery Indicator | Yes |
| Auto Shut-off | Yes |
| Power Supply | 2 AAA Batteries |
| Laser Class | Class II |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 45 to 90% |
| Dimensions | 4.5x 1.9 x 1.1" (110 x 45 x 27 mm) |
| Weight | 4.8oz (135g) |
What's included with the REED R8002
- Laser Distance Meter
- Batteries
Ideal Applications for the REED R8002
- Measuring conduit and wire lengths
- Light Retrofitting Projects
- Piping/exhausts/ventilation and equipment installation
- Conduit layout and installation
- Air ventilation and duct work positioning
- Air volume calculations
- Hot/cold water piping locations
- Determining wire length and duct sizing
- Floor plans
- Network room layout
