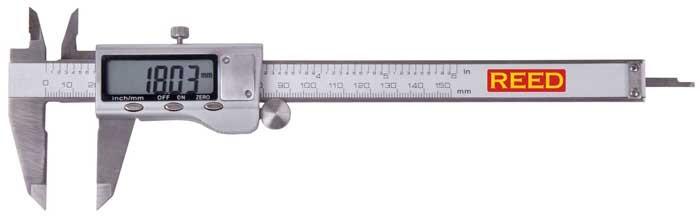

REED R7400 Digital Caliper, 6" (150mm)

Model: R7400 | UPC: 800837000385

REED R7400 Digital Caliper, 6" (150mm)

Model: R7400 | UPC: 800837000385

Rugged electronic caliper made of hardened steel.

REED R7400 Offers

This digital caliper has a 6-digit LCD display, zero adjustment button and lock screw for accurate measurements.


  • Easy-to-read 6-digit LCD display
  • User selectable unit of measure (in/mm)
  • Zero adjustment button
  • Lock screw to hold slide in position
  • Hardened stainless steel head and body
  • Low battery indicator and auto shut off

REED R7400 Specifications

Measuring Range 0 to 6" (0 to 150mm)
Accuracy ±0.001" (.03mm)
Resolution 0.0005" (0.01mm)
Display 6-digit LCD
Zero Button Yes
Auto Shut Off Yes
Low Battery Indicator Yes
Power Supply 1.5V Cell (LR44)
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 0 to 80%
Dimensions 9.3 x 3 x 0.6" (235 x 75 x 15mm)
Weight 5.6oz (160g)

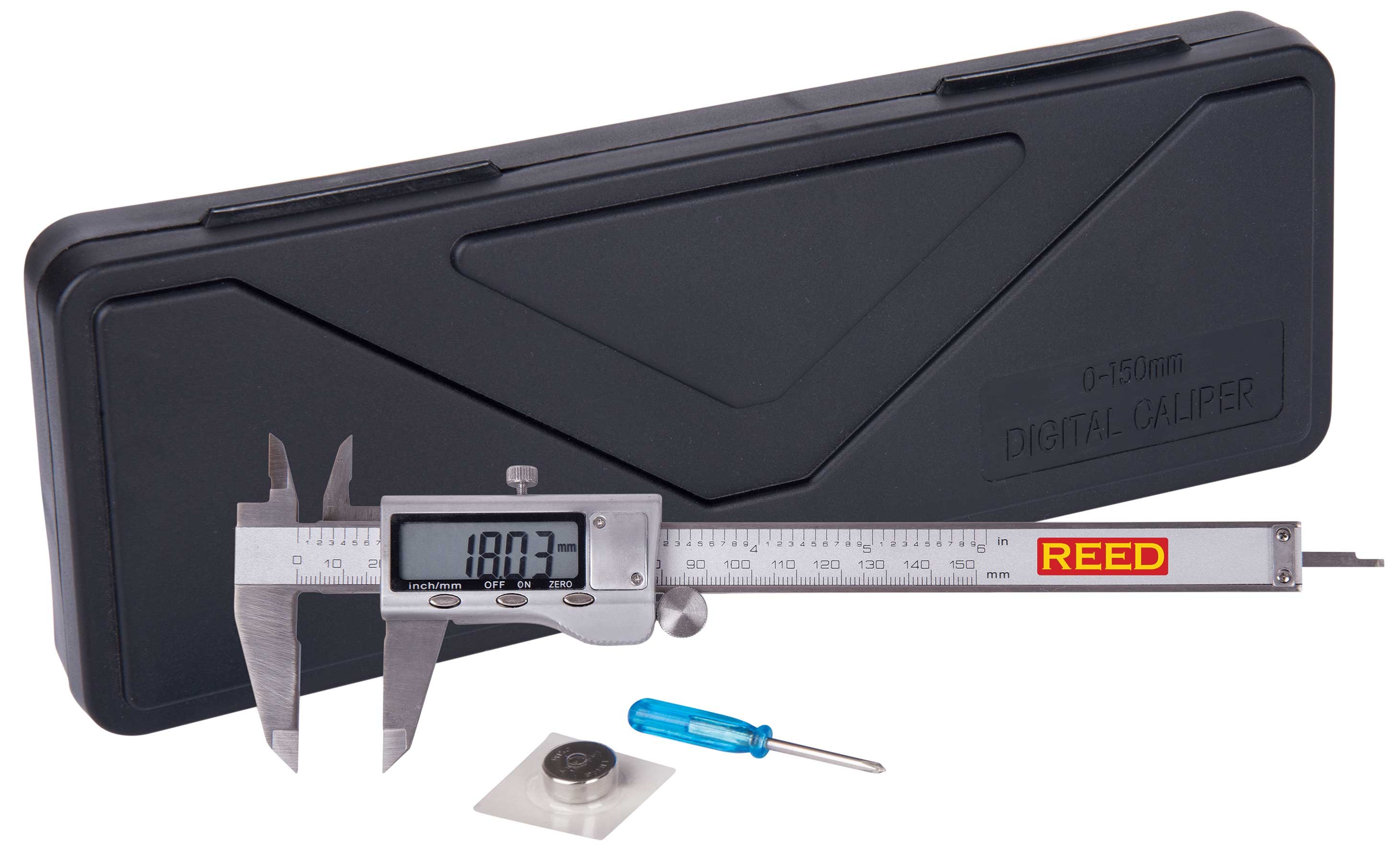

What's included with the REED R7400

  • Digital Caliper
  • Battery
  • Screwdriver
  • Hard Carrying Case

R7400 Digital Caliper

This digital caliper features an easy-to-read 6-digit LCD display, a hardened stainless steel head and body, user selectable unit of measure (in/mm) and a zero adjustment button. Use the lock screw to hold slide in position!

Ideal Applications for the REED R7400

  • Fabricating
  • QA departments
  • General industrial use
Calibration Lab
When you purchase a REED product it comes included with a one year warranty. We back our products.
