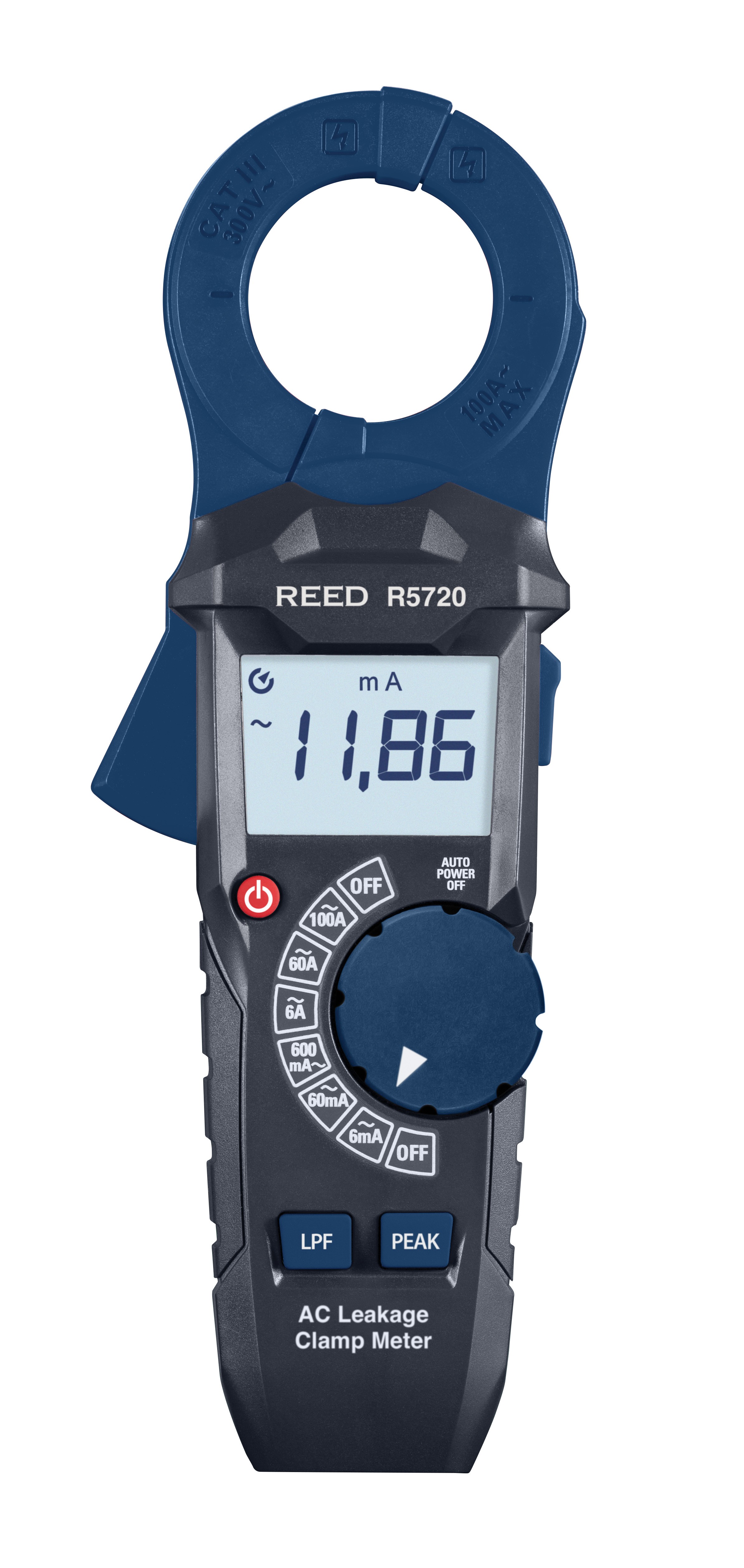

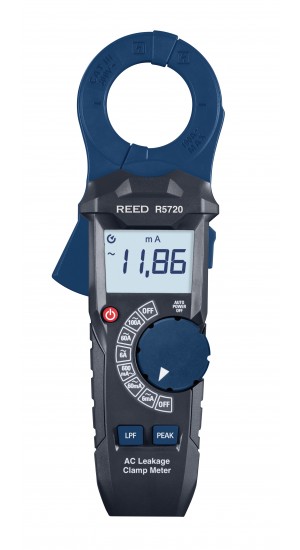

REED R5720 AC Leakage Clamp Meter
Model: R5720 | UPC: 800837007179
REED R5720 AC Leakage Clamp Meter
Model: R5720 | UPC: 800837007179
This AC leakage current tester features a large 6,000 count LCD display, low resolution and True RMS capability.
REED R5720 Offers
This AC Leakage Clamp Meter is a professional-grade tool designed for precise AC current measurements, supporting ranges from 6 microamps to 100 amps. The R5720 offers high accuracy, low resolution and a low pass filter for measuring variable frequency equipment.
Features
- Measures AC current from 6mA to 100A
- 6000 count backlit LCD display
- 1.26" (32mm) jaw size opening
- True RMS AC measurements
- Built-in LED flashlight
- Low battery and over range indicators
- Cat. III 300V
REED R5720 Specifications
| AC TRMS Current | |
| Range | 100.0 A, 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA |
| Accuracy (50/60Hz) | 100.0 A, 60.00 A: ±(1.5% rdg. +8 dgt.) 6.000 A, 600.0 mA, 60.00 mA: ±(1.0% rdg. +5 dgt.) 6.000 mA: ±(1.0% rdg. +8 dgt.) |
| Accuracy (>60Hz<1kHz) | 100.0 A: ±(3.5% rdg. +8 dgt.) 60.00 A: ±(3.0% rdg. +8 dgt.) 6.000 A, 600.0 mA, 60.00 mA: ±(3.0% rdg. +5 dgt.) 6.000 mA: ±(3.0% rdg. +8 dgt.) |
| Resolution | 100 mA, 10 mA, 1 mA, 0.1 mA, 10 μA, 1 μA |
| AC TRMS Current with Low Pass Filter (LPF) | |
| Range | 100.0 A, 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA |
| Accuracy (50/60Hz) | 100.0 A: ±(2.0% rdg. +8 dgt.) 60.00 A, 6.000 A, 600.0 mA, 60.00 mA, 6.000 mA: ±(1.5% rdg. +8 dgt.) |
| Resolution | 100 mA, 10 mA, 1 mA, 0.1 mA, 10 μA, 1 μA |
| General Specifications | |
| AC Frequency | 50 Hz to 1 kHz |
| Range Selection | Manual |
| Over Range Indication | Yes ("OL") |
| True RMS | Yes |
| Low Pass Filter (LPF) | Yes |
| Display | 6,000 count LCD display |
| Backlit Display | Yes |
| Display Hold | Yes |
| Peak Max/Min | Yes |
| Integrated Flashlight | Yes |
| Auto Shut-Off | Yes (after 15 mins) |
| Power Supply | 3 x AAA Batteries |
| Low Battery Indicator | Yes |
| Jaw Opening | 1.26" (32 mm) |
| Overvoltage Category | CAT. III 300V |
| Product Certifications | CE |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 9.1 x 3.0 x 1.5" (232 x 77 x 39 mm) |
| Weight | 9.6 oz (271 g) |
What's included with the REED R5720
- Carrying Case
- Batteries
Ideal Applications for the REED R5720
- Measuring leakage current in electrical circuits and systems
