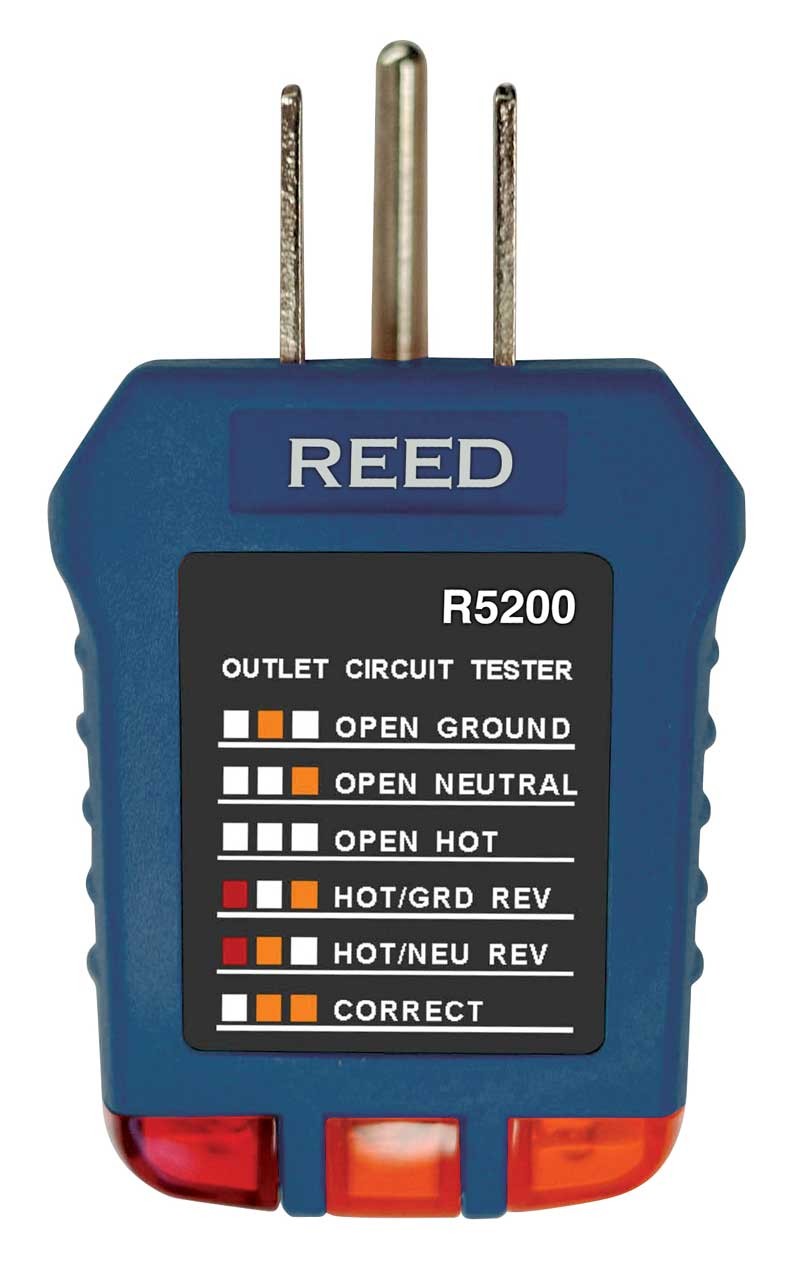

REED R5200 Receptacle Tester

Model: R5200 | UPC: 800837001320

REED R5200 Receptacle Tester

Model: R5200 | UPC: 800837001320

Detects common 3-wire receptacle issues.

Sorry! This product has been discontinued.

The REED R5200 Receptacle Tester has been discontinued, it has been replaced by the REED R5210 Receptacle Tester with GFCI

REED R5200 Offers

This outlet tester quickly identifies faulty wiring. Simply plug the instrument into the receptacle under test and match the light pattern to the printed chart to determine the fault.


  • Compact design
  • Detects most common 3-wire receptacle issues
  • LED indicators identify 5 wiring faults
  • Status indicator chart
  • CE and UL approved
  • Durable plastic housing

REED R5200 Specifications

Voltage Range 110 to 125V AC
Frequency Range 50 to 60Hz
Current Max 15A
Receptable Compatibility 3-wire
Product Certifications CE, UL
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity 0 to 85%
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 3 x 2 x 1" (75 x 51 x 25mm)
Weight 1oz (23g)

What's included with the REED R5200

  • REED R5200 Receptacle Tester
  • Ideal Applications for the REED R5200

    Test 3-wire receptacles for faulty wiring.
