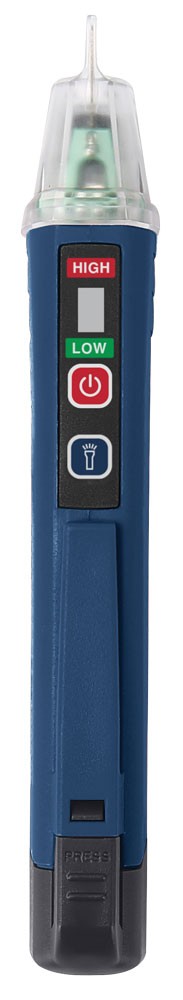

REED R5110 Non-Contact Voltage Detector with Flashlight
Model: R5110 | UPC: 800837005892
REED R5110 Non-Contact Voltage Detector with Flashlight
Model: R5110 | UPC: 800837005892
AC Voltage Dectector with built-in flashlight and pocket clip.
REED R5110 Offers
This Voltage Detector has the ability to detect the presence of AC voltage from a safe distance. The R5110 features two voltage ranges allowing it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring.
Features
- Suitable for receptacles or against insulated wire
- Double insulated housing for increased safety
- Audible (buzzer) and visual (LED) indicators
- Built-in flashlight
- Pocket clip
- Auto shut off
- Cat. IV 1000V safety rating
REED R5110 Specifications
| Voltage Range | Low voltage mode: 24 to 1000VAC High voltage mode: 90 to 1000VAC |
| Frequency Range | 50 to 60Hz |
| Built-in Flashlight | Yes |
| Pocket Clip | Yes |
| Alarm | Yes (audio/visual) |
| Auto Shut-off | Yes (after 5 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AAA batteries |
| Overvoltage Category | CAT. IV 1000V |
| Product Certifications | CE, ETL |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Humidity Range | 0 to 80% |
| Maximum Operating Altitude | 6561' (2000m) |
| Dimensions | 5.9 x 0.9 x 0.7" (150 x 23 x 18mm) |
| Weight | 1.8 oz (50g) |
What's included with the REED R5110
- Non-Contact Voltage Detector
- Batteries

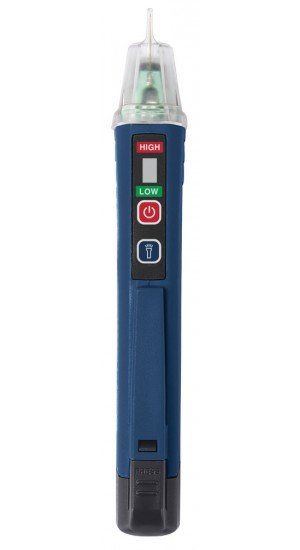

REED R5110 Non-Contact Voltage Detector with Flashlight
Detect the presence of AC voltage safely and easily with the R5110. This non-contact detector is suitabe for receptacles and against insulated wire. In addition, it features audible and visual alarms indicators using a buzzer and LED respectively when voltage is present. The R5110 even allows you to work in low-lit environments because it has a built-in flashlight.
datasheet for the REED R5110 Non-Contact Voltage Detector with Flashlight
manual for the REED R5110 Non-Contact Voltage Detector with Flashlight
