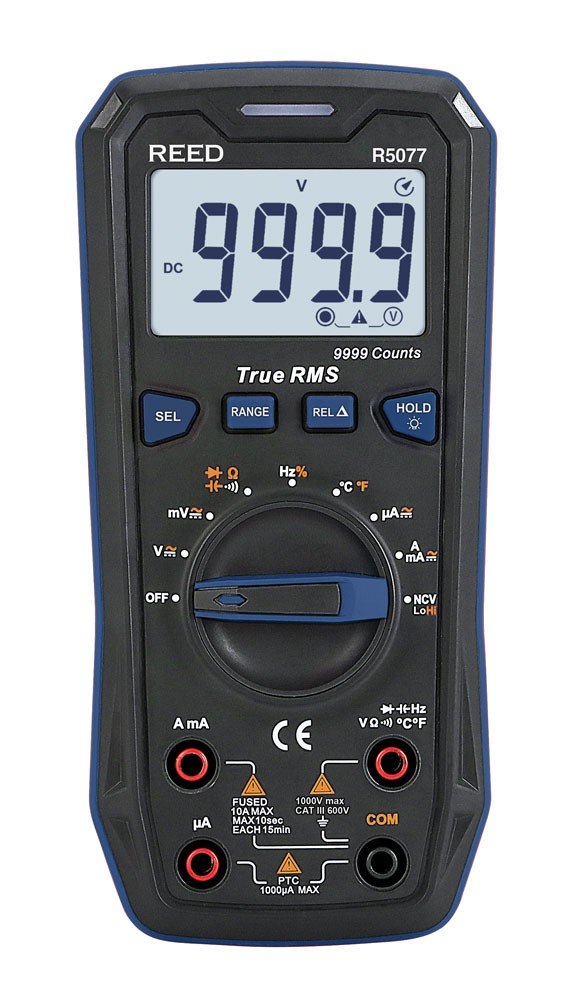

REED R5077 True RMS Digital Multimeter, AC/DC 1000 V
Model: R5077 | UPC: 800837006974
REED R5077 True RMS Digital Multimeter, AC/DC 1000 V
Model: R5077 | UPC: 800837006974
True RMS multimeter measures AC/DC voltage, current, frequency, resistance, capacitance, and temperature, and features a built-in non-contact voltage detector.
REED R5077 Offers
The R5077 Multimeter is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance, and temperature. Built with a non-contact voltage detector, this instrument ensures added safety and convenience, while its rugged, double-molded plastic housing provides durability in various environments.
Features
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Built-in non-contact voltage detector and rugged double molded plastic housing
- Diode check and continuity functions
- Relative and data hold functions
- Backlit LCD and low battery indicator
- CAT III. 600V safety rating
REED R5077 Specifications
| AC/DC Voltage | |
| Range | AC/DC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V |
| Accuracy | AC: 9.999mV, 99.99mV ±(1% rdg. + 3 dgt.) 999.9mV, 9.999V, 99.99V, 999.9V ±(0.8% rdg. + 3 dgt.) DC: 9.999mV, 99.99mV ±(0.7% rdg. + 8 dgt.) 999.9mV, 9.999V, 99.99V, 999.9V ±(0.5% rdg. + 3 dgt.) |
| Resolution | AC/DC: 0.001mV, 0.01mV, 0.1mV, 0.001V, 0.01V, 0.1V |
| AC/DC Current | |
| Range | AC/DC: 999.9µA, 999.9mA, 9.999A |
| Accuracy | AC: 999.9µA ±(1.0% rdg. + 3 dgt.) 999.9mA, 9.999A ±(1.2% rdg. + 3 dgt.) DC: 999.9µA ±(0.8% rdg. + 3 dgt.) 999.9mA, 9.999A ±(1.0% rdg. + 3 dgt.) |
| Resolution | AC/DC: 0.1µA, 0.1mA, 0.001A |
| Resistance | |
| Range | 999.9Ω, 9.999KΩ, 99.99KΩ, 999.9KΩ, 9.999MΩ, 99.99MΩ |
| Accuracy | 999.9Ω, 9.999KΩ, 99.99KΩ, 999.9KΩ: ±(0.8% rdg. + 2 dgt.) 9.999MΩ: ±(1.5% rdg. + 3 dgt.) 99.99MΩ: ±(2.0% rdg. + 5 dgt.) |
| Resolution | 0.1Ω, 0.001KΩ, 0.01KΩ, 0.1KΩ, 0.001MΩ, 0.01MΩ |
| Capacitance | |
| Range | 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF |
| Accuracy | 9.999nF: (±4%+10 dgt.) 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF: ±(4.0% rdg. + 5 dgt.) 9.999mF: ±(10% rdg.) |
| Resolution | 0.001nF, 0.01nF, 0.1nF, 0.001µF, 0.01µF, 0.1µF, 0.001mF |
| Frequency | |
| Range | 99.99Hz to 9.999MHz |
| Accuracy | ±(0.1% rdg. + 5 dgt.) |
| Resolution | 0.01Hz to 0.001MHz |
| Temperature | |
| Range | -40 to 1832°F (-40 to 1000°C) |
| Accuracy | ±(2.5% rdg. + 5°F) ±(2.0% rdg. +5°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging |
| True RMS | Yes |
| Display | 9,999 count LCD Display |
| Display Hold | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Backlit Display | Yes |
| Continuity Check | Audible signal if resistance ≤30Ω |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Non-Contact Voltage Detector | Yes |
| Magnetic Hanging Strap Compatible | Yes (R5900 sold separately) |
| Kick Stand | Yes |
| Auto Power Off | Yes (after 15 minutes) |
| Power Supply | 3x AA Batteries |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE, UKCA, ETL |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 7.4 x 3.5 x 2.2" (187 x 88 x 56mm) |
| Weight | 14oz (400g) |
What's included with the REED R5077
- Test Leads
- Thermocouple Wire Probe (Type K)
- Batteries
Ideal Applications for the REED R5077
- Troubleshooting electrical systems in residential, commercial, and industrial settings
- Performing routine maintenance checks on electrical equipment
- Testing and diagnosing issues in various types of machinery and appliances
- Verifying electrical connections and installations for safety compliance
- Conducting repairs and maintenance on HVAC and automotive systems
- Supporting educational and laboratory environments for electronics training and experiments
- Assisting in general DIY electrical projects and repairs around the home
