REED R5055 1000A True RMS Digital Clamp Meter
Model: R5055 | UPC: 800837005588
REED R5055 1000A True RMS Digital Clamp Meter
Model: R5055 | UPC: 800837005588
AC/DC Clamp Meter with analog bargraph, backlight, min/max function, built-in non-contact voltage (NCV) detector and contact thermometer.
REED R5055 Offers
This auto ranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle, contact temperature and up to 3000A AC with optional 18" flexible current probe (R5065). Featuring a 6000 count backlit LCD display with a 31-segment analog bargraph and double molded plastic housing. The R5055 keeps track of min/max readings and includes low pass filter and Low impedance (LoZ) mode.
Features
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature
- 6000-count backlit LCD display and analog bargraph
- Flexible current probe can expand AC current measurements up to 3000A; (R5065, sold separately)
- Ergonomic design fits in your hand and can be used while wearing protective gloves
- Built-in LED flashlight
- Low battery and over range indicators
- Built-in non-contact voltage detector with LED indicator
- True RMS voltage and current for accurate measurements
- Low Pass Filter and Low Impedance (LoZ) modes
- Min/Max, display hold and relative mode
- Diode test and continuity check functions
- Durable double molded plastic housing
- Cat. III 1000V, Cat. IV 600V safety rating
REED R5055 Specifications
| AC/DC Current | |
| Range | 60, 600, 1000A |
| Accuracy | AC/DC: ±(2% rdg. +5 dgt.) |
| Resolution | 0.01, 0.1, 1A |
| AC/DC Voltage | |
| Range | AC: 6, 60, 600, 1000V DC: 600mV, 6, 60, 600, 1000V |
| Accuracy | AC: ±(1.0% rdg. +8 dgt.) DC: ±(0.5% rdg. +5 dgt.) |
| Resolution | 0.1mV, 0.001V, 0.01V, 0.1V, 1V |
| Resistance | |
| Range | 600Ω, 6, 60, 600kΩ, 6, 60MΩ |
| Accuracy | ±(1% rdg. +2 dgt.) |
| Resolution | 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ |
| Capacitance | |
| Range | 60, 600.0nF, 6, 60, 600μF, 6, 60mF |
| Accuracy | ±(4.0% + 5) |
| Resolution | 0.01nF, 0.1nF, 0.001μF, 0.01μF, 0.1μF, 0.001mF, 0.01mF |
| Frequency | |
| Range | 10Hz, 1MHz |
| Accuracy | ±(0.1% rdg. +3 dgt.) |
| Resolution | 0.01Hz, 1kHz |
| Low Pass Filter (LPF) AC Voltage | |
| Range | 600, 1000V |
| Accuracy | ±(2% rdg. +5 dgt.) |
| Resolution | 0.1, 1V |
| Low Impedance (LoZ) AC Voltage | |
| Range | 600, 1000V |
| Accuracy | ±(2% rdg. +5 dgt.) |
| Resolution | 0.1, 1V |
| Temperature | |
| Range | -40 to 1832°F (-40 to 1000°C) |
| Accuracy | ±(1.0% rdg. + 4°F) ±(1.0% rdg. + 2°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging/Manual |
| Low Impedance (LoZ) | Yes |
| Low Pass Filter (LPF) | Yes |
| True RMS | Yes |
| Display | 6000 count LCD display |
| Display Hold | Yes |
| Max/Min | Yes |
| Peak Hold | N/A |
| Zero Push Button Adjustment | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Backlit Display | Yes |
| Analog Bargraph | Yes (31-segment) |
| Continuity Check | Audible signal if resistance ≤30Ω |
| Duty Cycle | Yes |
| Non-Contact Voltage Detector | Yes |
| Built-In Flashlight | Yes |
| Kick Stand | N/A |
| Autoshut Off | Yes (after 15 mins) |
| Flexible Current Probe (optional) | Yes (R5065, Extends to 3000A) |
| Power Supply | 3 x AAA batteries |
| Low Battery Indicator | Yes |
| Jaw Opening | 1.7" (42mm), up to 1500 MCM |
| Overvoltage Category | CAT. III 1000V, CAT. IV 600V |
| Product Certifications | CE, ETL |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Dimensions | 10.7 x 3.2 x 1.7" (272 x 81 x 43.5mm) |
| Weight | 15.8oz (447g) |

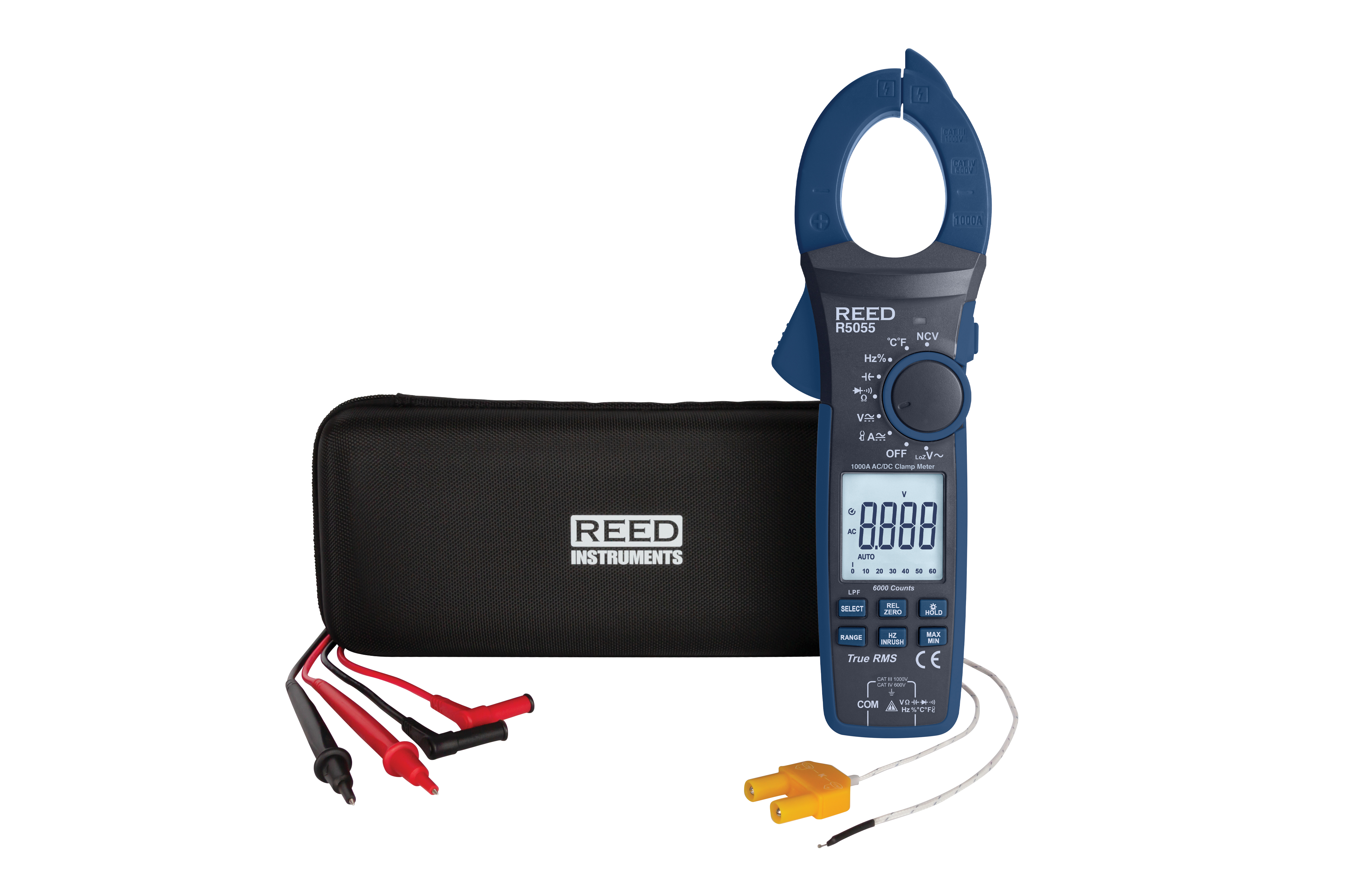

What's included with the REED R5055
- AC/DC True RMS Clamp Meter
- Type K Thermocouple
- Test Leads
- Carrying Case
- Batteries
REED R5055 True RMS Digital Clamp Meter
Industrial maintenance teams love the R5055 true RMS digital clamp meter because it can perform a variety of measurements using only one tool! The R5055 can measure AC/DC current and voltage, resistance, frequency, capacitance, duty cycle, contact temperature, and up to 3000 A AC with the optional R5065 18" (45.72 cm) flexible current probe. Not only that, but it also features a 6000-count backlit LCD with a 31-segment analog bar graph and double molded plastic housing, keeps track of minimum/maximum readings, has a built-in LED flashlight, and includes a low pass filter and Low impedance (LoZ) mode.
