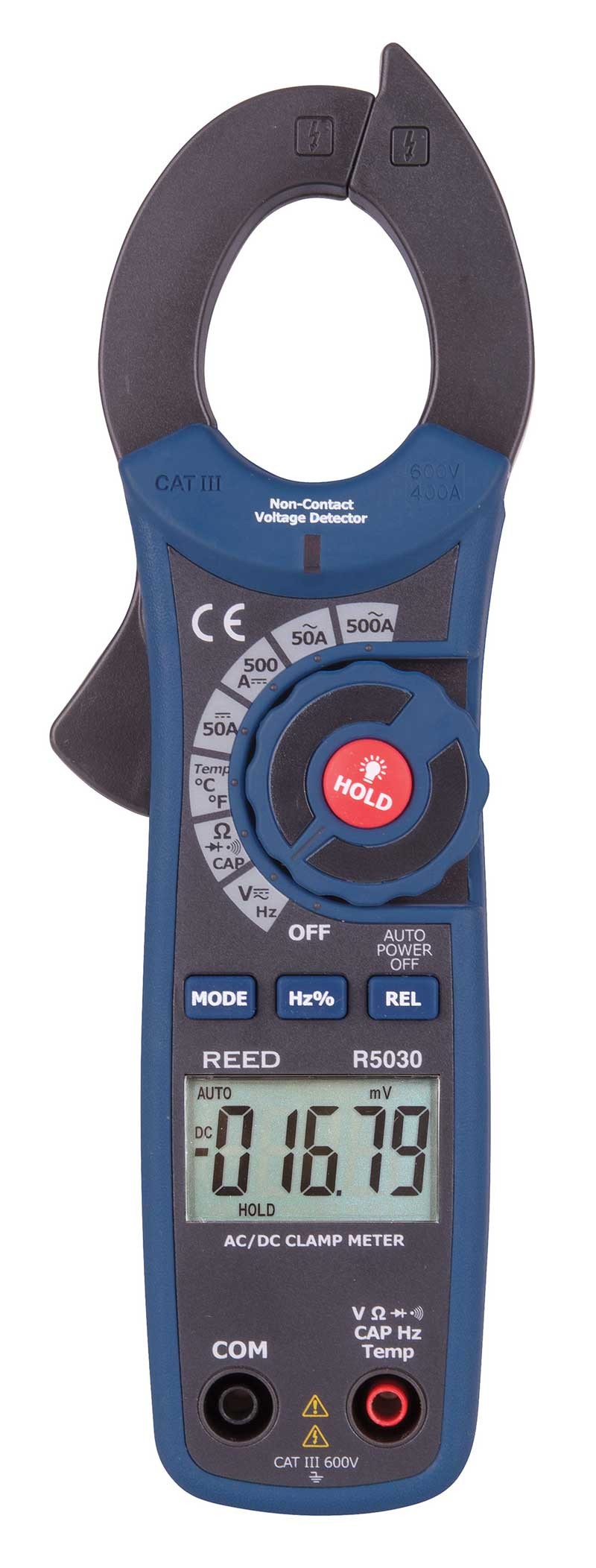

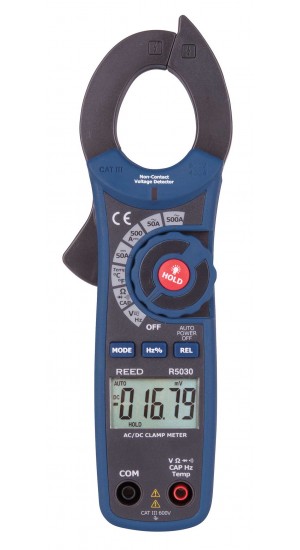

REED R5030 500A True RMS AC/DC Clamp Meter with NCV
Model: R5030 | UPC: 800837001283
REED R5030 500A True RMS AC/DC Clamp Meter with NCV
Model: R5030 | UPC: 800837001283
Compact AC/DC clamp meter with backlit display, built-in non-contact voltage (NCV) detector and contact thermometer.
REED R5030 Offers
This compact autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display, double molded plastic housing, the R5030 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.
Features
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
- 50000-count backlit LCD display with low battery and overrange indicators
- Built-in non-contact voltage detector with LED indicator
- True RMS AC measurements
- Display hold and relative mode
- Diode test and continuity check functions
- Durable double molded plastic housing
- Cat. III 600V safety rating
REED R5030 Specifications
| AC/DC Current | |
| Range | 50, 500A |
| Accuracy | AC: ±(2.8% rdg. +30 dgt.) DC: ±(2.5% rdg. +30 dgt.) |
| Resolution | 0.01, 0.1, 1A |
| AC/DC Voltage | |
| Range | AC: 500mV, 5, 50, 500, 750V DC: 500mV, 5, 50, 500, 1000V |
| Accuracy | AC: ±(1.0% rdg. +30 dgt.) DC: ±(0.1% rdg. +4 dgt.) |
| Resolution | AC/DC: 0.1mV, 0.001, 0.01, 0.1, 1V |
| Resistance | |
| Range | 500Ω, 5, 50, 500kΩ, 5, 50MΩ |
| Accuracy | ±(1.0% rdg. +4 dgt.) 0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ |
| Capacitance | |
| Range | 500, 5000nF, 50, 500µF, 5mF |
| Accuracy | ±(3.5% rdg. +10 dgt.) |
| Resolution | 0.01, 0.1nF, 0.01, 0.1μF, 0.1mF |
| Frequency | |
| Range | 10kHz |
| Accuracy | ±(0.5% rdg. +10 dgt.) |
| Resolution | 0.001Hz |
| Temperature | |
| Range | -148 to 1832°F (-100 to 1000°C) |
| Accuracy | ±(1.0% rdg. + 4.5°F) ±(1.0% rdg. + 2.5°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging / Manual |
| True RMS | Yes |
| Display | 50,000 count LCD display |
| Display Hold | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Backlit Display | Yes |
| Continuity Check | Audible signal if resistance <35Ω |
| Duty Cycle | Yes |
| Non-Contact Voltage Detector | Yes |
| Autoshut off | Yes (after 15 mins) |
| Power Supply | 2 x AAA |
| Low Battery Indicator | Yes |
| Jaw Opening | 1.2" (30mm), up to 350 MCM |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 7.9 x 2.6 x 1.5" (200 x 66 x 37 mm) |
| Weight | 8.1oz (230g) |

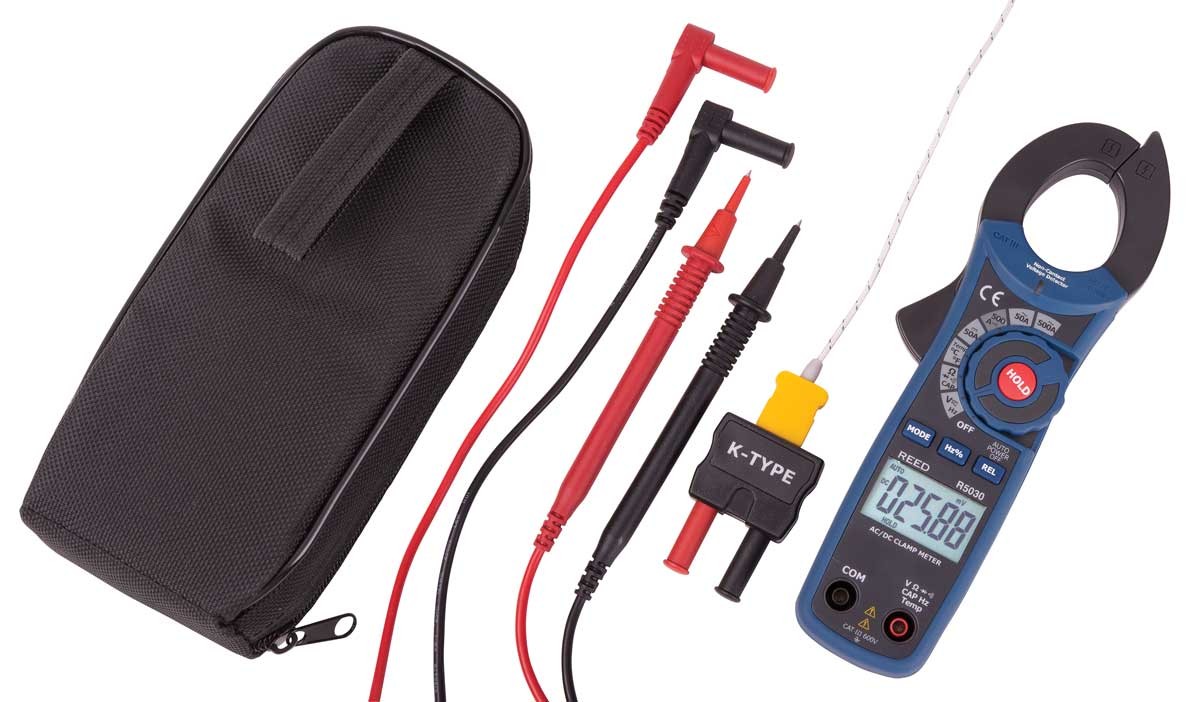

What's included with the REED R5030
- AC/DC True RMS Clamp Meter
- Test Leads
- Thermocouple Wire Probe
- Thermocouple Adapter
- Batteries
- Soft Carrying Case
How To: Use a Line Splitter to Measure Current/Amperage
A quick and easy step-by-step guide on how to measure the current from your outlets using a line splitter. For the purpose of this video, we'll be using the R5400 AC Line Splitter and the R5020 AC Clamp Meter. These steps will work for most line splitters.
Ideal Applications for the REED R5030
Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.
Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems.
