REED R4000SD-KIT2 Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter
Model: R4000SD-KIT2 | UPC: 800837005724
REED R4000SD-KIT2 Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter
Model: R4000SD-KIT2 | UPC: 800837005724

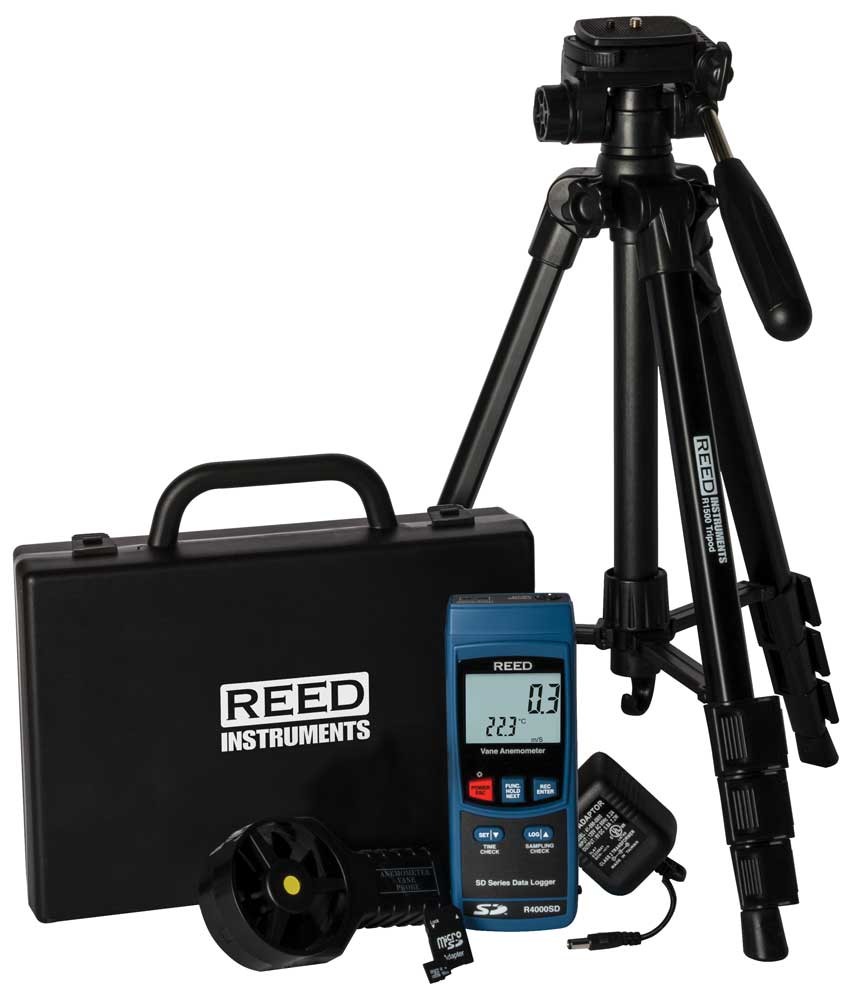

The R4000SD-KIT2 comes equipped with the required tools for continuous long-term monitoring. This kit includes a Data Logging Vane Thermo-Anemometer (R4000SD), Tripod (R1500), 16GB Micro SD Memory Card with adapter (RSD-16GB) and AC Power Adapter (RSD-ADP-NA).
This REED R4000SD-KIT2 Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter Includes
REED R4000SD Data Logging Vane Thermo-Anemometer
Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.
REED R1500 Tripod
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
REED RSD-16GB Micro SD Memory Card w/ Adapter, 16GB
For use with REED SD Series Data Loggers.
REED RSD-ADP-NA AC Adapter, 110V
For use with REED SD Series Data Loggers.
Measure wind speed with the R4000SD Data Logging Vane Thermo-Anemometer
REED air velocity meters (also known as anemometers) are built to suit various air flow applications that require a high accuracy instrument capable of calculating air volume and air temperature. The R4000SD Data Logging Vane Thermo-Anemometer features an integrated SD memory card that measures and records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input in fpm, m/s, kph, mph and knots.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R4000SD-KIT2
- HVAC/R and refrigeration servicing
- Detecting filter blockage
- Condensers and chillers
datasheet for the REED R4000SD-KIT2 Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter
manual for the REED R4000SD-KIT2 Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter
Brochure of our REED Industrial Maintenance productsBrochure of our REED Facilities and Building Maintenance productsBrochure of our REED Industrial Maintenance products
Click on a category to view a selection of compatible accessories with the REED R4000SD-KIT2 Data Logging Vane Thermo-Anemometer with Tripod, SD Card and Power Adapter.
REED R4000SD-PROBE Replacement Rotating Vane Probe
Model: R4000SD-PROBE
For use with REED R4000SD & SD-4207 Data Logging Vane Thermo-Anemometers.
REED R2970 Type K Pipe Clamp Thermocouple Probe
Model: R2970
This Type-K pipe clamp thermocouple probe is designed to easily grip pipes for quick temperature measurements. The R2970 features a spring-loaded jaw for a secure grip on pipes up to 1.4" (35mm) in diameter.
REED LS-182 Type K Female Connector
Model: LS-182
This type k female connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-182 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED LS-181 Type K Male Connector
Model: LS-181
This type k male connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-181 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED TP-01 Type K Beaded Wire Probe
Model: TP-01
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications.
REED R2960 Type K Needle Tip Probe
Model: R2960
Medium gauge hypodermic needle tip, used to pierce and measure food, rubbers and solids.
REED R2950 Type K Immersion Probe
Model: R2950
This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels.
REED R2940 Type K Air/Gas Probe
Model: R2940
Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts.
REED R2930 Type K Right Angle Surface Probe
Model: R2930
This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The R2930 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.
REED R2920 Type K Surface Probe
Model: R2920
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.
REED R2980 Type K Air Oven/Freezer Thermocouple Probe
Model: R2980
Versatile air probe specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers. The R2980 features a stainless-steel shield to protect the sensor from touching surfaces and conveying a false measurement.
REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB
Model: RSD-16GB
For use with REED SD Series Data Loggers.
REED R8888 Medium Hard Carrying Case
Model: R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.
REED CA-05A Medium Soft Carrying Case
Model: CA-05A
Features a main instrument compartment and a side pouch for accessories.
REED R1500 Tripod
Model: R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
