REED R2450SD Data Logging Thermometer
Model: R2450SD | UPC: 800837004529
REED R2450SD Data Logging Thermometer
Model: R2450SD | UPC: 800837004529
Real-time data logger with integrated SD memory card measures/records up to 4 separate temperature measurements simultaneously as well as temperature differential. Accepts Type K, J , R, S, E, T thermocouples and RTD probes.
REED R2450SD Offers

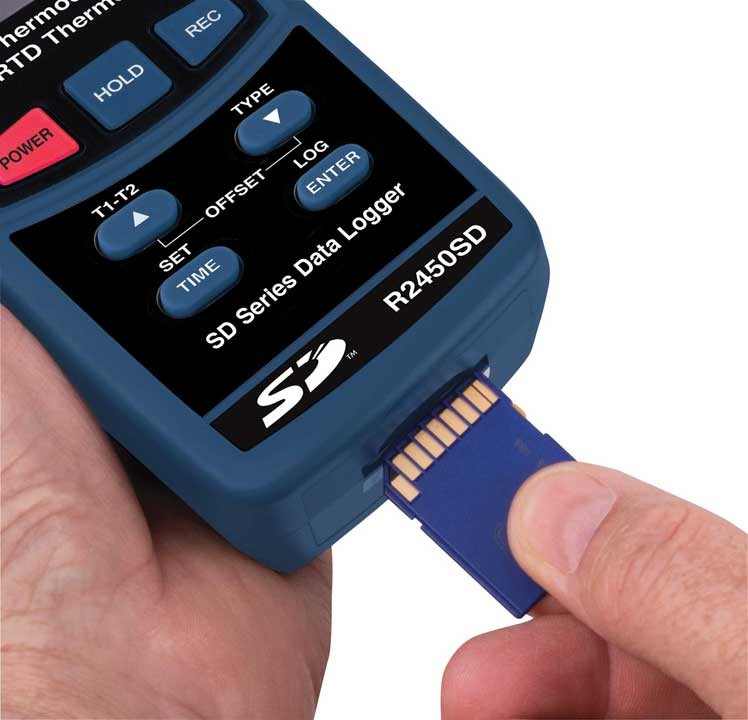

The R2450SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring on up to 4 separate channels.
Features

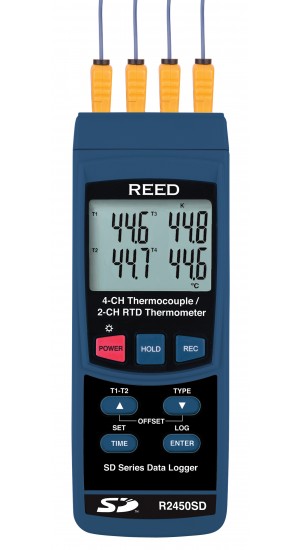

- Displays up to 4 separate measurements simultaneously
- Accepts Type K, J , R, S, E, T thermocouples and RTD probes
- Temperature differential (T1-T2), Max/Min and Data hold functions
- User selectable °C, °F
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R2450SD Specifications
| Measurement Range | |
| Type K | -148 to 2372°F (-100 to 1300°C) |
| Type J | -148 to 2102°F (-100 to 1150°C) |
| Type T | -148 to 752°F (-100 to 400°C) |
| Type E | -148 to 1652°F (-100 to 900°C) |
| Type R | 32 to 3092°F (0 to 1700°C) |
| Type S | 32 to 2732°F (0 to 1500°C) |
| RTD Pt100 Ohm | -327.9 to 1562°F (-199.9 to 850°C) |
| Accuracy | |
| Type K | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 999.9°F, ±(0.4% + 1°F) 1000 to 2372°F, ±(0.4% + 2°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 999.9°C, ±(0.4% + 0.5°C) 1000 to 1300°C, ±(0.4% + 1°C) |
| Type J | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 999.9°F, ±(0.4% + 1°F) 1000 to 2102°F, ±(0.4% + 2°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 999.9°C, ±(0.4% + 0.5°C) 1000 to 1150°C, ±(0.4% + 1°C) |
| Type T | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 752.0°F, ±(0.4% + 1°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 400.0°C, ±(0.4% + 0.5°C) |
| Type E | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 999.9°F, ±(0.4% + 1°F) 1000 to 1652°F, ±(0.4% + 2°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 900.0°C, ±(0.4% + 0.5°C) |
| Type R | 32 to 3092°F, ±(0.5% + 5°F) 0 to 1700°C, ±(0.5% + 3°C) |
| Type S | 32 to 2732°F, ±(0.5% + 5°F) 0 to 1500°C, ±(0.5% + 3°C) |
| RTD Pt100 Ohm | -327.0 to 999.9°F, ±(0.4% + 1.8°F) 1000 to 1562°F, ±(0.4% + 2°F) -199.9 to 850.0°C, ±(0.4% + 1°C) |
| Resolution | |
| Type K | 0.1°F (0.1°C) 1°F (1°C) ≥ 1000° |
| Type J | 0.1°F (0.1°C) 1°F (1°C) ≥ 1000° |
| Type T | 0.1°F (0.1°C) |
| Type E | 0.1°F (0.1°C) 1°F ≥ 1000° |
| Type R | 1°F (1°C) |
| Type S | 1°F (1°C) |
| RTD Pt100 Ohm | 0.1°F (0.1°C) 1°F ≥ 1000° |
| General Specifications | |
| Resolution | 0.1 or 1°F/°C |
| Type | 4-Channel Thermocouple, 2-Channel RTD |
| Response Time | 1x/second |
| Display | Quad Display, LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Differential Measurement (T1-T2) | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | Less than 85% RH |
| Dimensions | 7.0 x 2.7 x 1.8" (177 x 68 x 45mm) |
| Weight | 0.6lbs (268g) |

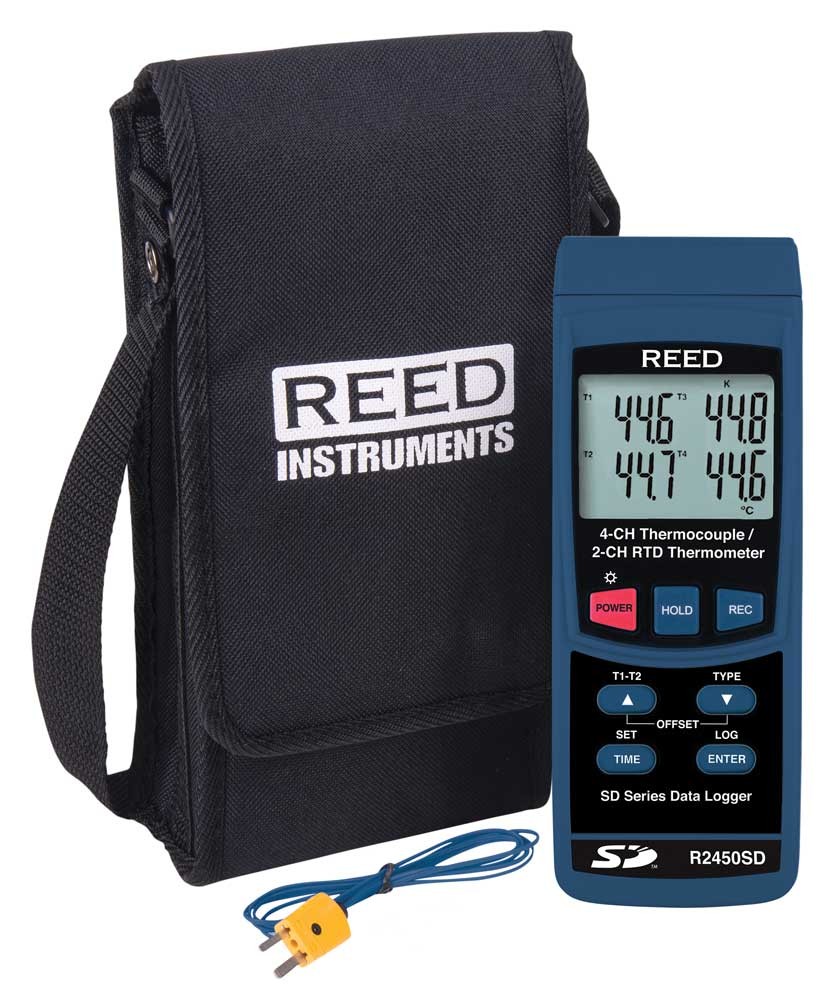

What's included with the REED R2450SD
- Data Logging Thermometer
- Beaded Wire Probe
- Soft Carrying Case
- Batteries
Record and log temperature with the REED R2450SD Data Logging Thermometer
A temperature data logger is great for recording temperatures over a period of time. The R2450SD features an easy-to-read backlit LCD display, keypad with data hold and Max/Min functions and the ability to record up to 4 separate temperature measurements simultaneously.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R2450SD
- Medical
- Pharmaceutical
- Environmental monitoring
- Industrial and commercial temperature applications
- R&D and educational establishments
- Food service
datasheet for the REED R2450SD Data Logging Thermometer
manual for the REED R2450SD Data Logging Thermometer
Brochure of our REED Food Service products
Click on a category to view a selection of compatible accessories with the REED R2450SD Data Logging Thermometer.
REED CA-05A Medium Soft Carrying Case
Model: CA-05A
Features a main instrument compartment and a side pouch for accessories.
REED R8888 Medium Hard Carrying Case
Model: R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.
REED R2950 Type K Immersion Probe
Model: R2950
This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels.
REED R2940 Type K Air/Gas Probe
Model: R2940
Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts.
REED R2930 Type K Right Angle Surface Probe
Model: R2930
This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The R2930 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.
REED R2920 Type K Surface Probe
Model: R2920
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.
REED LS-182 Type K Female Connector
Model: LS-182
This type k female connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-182 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED LS-181 Type K Male Connector
Model: LS-181
This type k male connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-181 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED R2980 Type K Air Oven/Freezer Thermocouple Probe
Model: R2980
Versatile air probe specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers. The R2980 features a stainless-steel shield to protect the sensor from touching surfaces and conveying a false measurement.
REED R2970 Type K Pipe Clamp Thermocouple Probe
Model: R2970
This Type-K pipe clamp thermocouple probe is designed to easily grip pipes for quick temperature measurements. The R2970 features a spring-loaded jaw for a secure grip on pipes up to 1.4" (35mm) in diameter.
REED TP-01 Type K Beaded Wire Probe
Model: TP-01
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.
REED R2960 Type K Needle Tip Probe
Model: R2960
Medium gauge hypodermic needle tip, used to pierce and measure food, rubbers and solids.
REED R1500 Tripod
Model: R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
REED R2450SD-RTD PT100 RTD Temperature Probe
Model: R2450SD-RTD
Optional RTD Temperature Probe for use with the REED R2450SD & SD-947 Data Logging Thermometers.
REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB
Model: RSD-16GB
For use with REED SD Series Data Loggers.
