REED R2160 Thermal Imaging Camera, 160x120

Model: R2160 | UPC: 800837005113

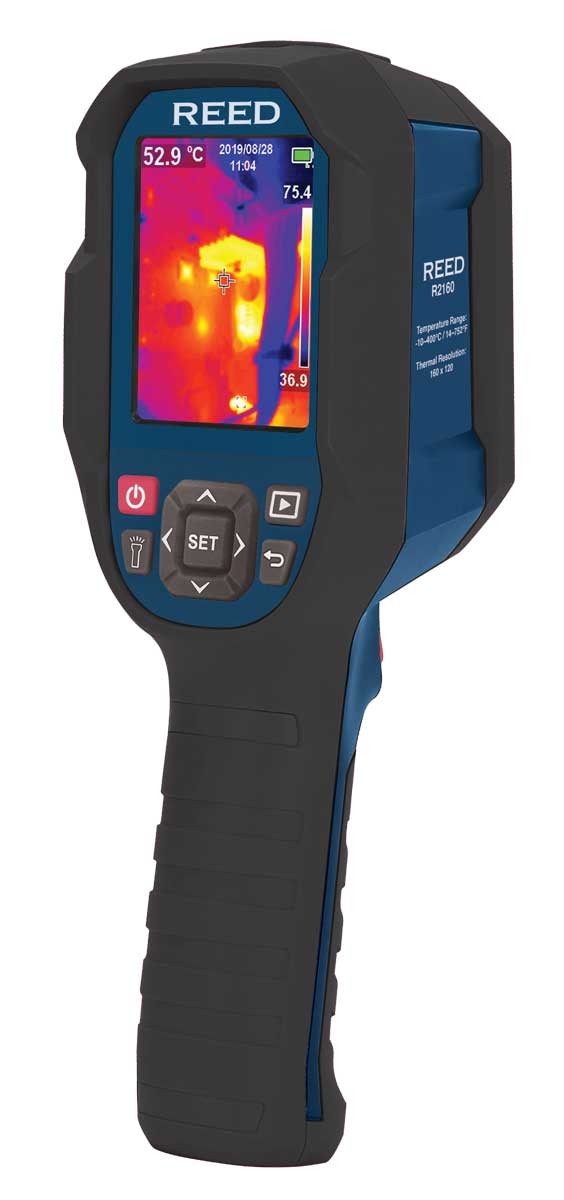

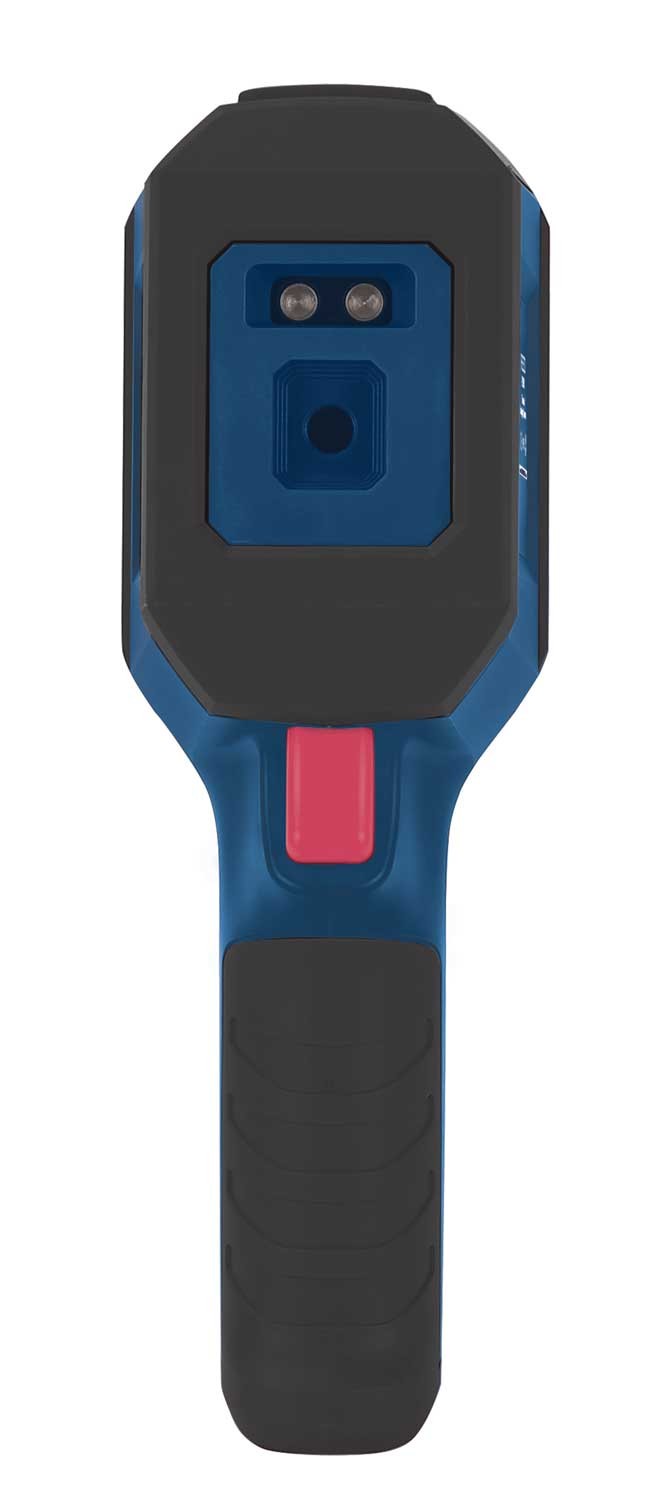

REED R2160 Thermal Imaging Camera, 160x120

Model: R2160 | UPC: 800837005113

Features a rugged IP65 rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity.

REED R2160 Offers

This thermal imaging camera features a 160 x 120 (19,200 pixels) infrared sensor that can detect temperatures between 14 to 752°F (-10 to 400°C). The R2160 has the ability to display hot and cold spot temperatures on a 2.8" color LCD and allows a user to choose from 5 different color palettes.

Features

  • 160 x 120 infrared resolution (19,200 pixels)
  • 2.8" color TFT Display
  • Built-in LED flashlight
  • Choice of 5 color palettes
  • High and Low temperature spot and alarm indicators
  • Dustproof and 6.5' (2m) drop tested
  • Rechargeable li-ion battery
  • Tripod mountable for continuous long-term monitoring
  • View stored data with included software
  • Low battery indication and auto shut off

REED R2160 Specifications

Imaging and Optical Specifications
Field of View (FOV) 56 x 42°
Minimum Focus Distance 0.82' (0.25m)
Spatial Resolution (IFOV) 11mrad
Thermal Sensitivity (NETD) <0.05°C (50mK)
Image Capture Frequency 9Hz
Focus Fixed
Measurement
Temperature Range 14 to 752°F (-10 to 400°C)
Accuracy ±3.6°F (2°C) or ±2% of reading
Resolution 0.1°F/°C
Detector Specifications
Detector Type Uncooled microbolometer, Focal plane array (FPA)
Spectral Range 8 to 14μm
IR Resolution 160 x 120 (19,200 pixels)
Image Presentation and Measurement Analysis
Display 2.8" color TFT
Color Palettes 5 (Iron/Rainbow/Gray/Red-White/White-Blue)
Center Spot Yes
Emissivity Adjustable (0.01 to 0.99)
Temperature Alarm Indicators High/Low (user adjustable)
Automatic Hot/Cold Detection Auto hot or cold spot-meter markers
General Specifications
Display Resolution 320 x 240 pixels
Image Format BMP
LED Flashlight Yes
External Memory Micro SD card
Auto Shut-Off Yes (user adjustable 5/10/30 minutes)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 3.7V/5000mAh rechargeable Li-ion battery
Battery Life Approximately 6 hours
Charging System In camera
Charge Time 4 hours
PC Connectivity USB Cable (Type-C)
Software Yes (download from website)
Software OS Compatability Windows 7/8/10
Supported Languages English and French
Product Certifications CE, IP65, 6.5' (2m) drop test
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Operating/Storage Humidity Range 10 to 90%
Maximum Operating Altitude 6561' (2000m)
Dimensions 9.3 x 3 x 3.4" (236 x 76 x 86mm)
Weight 1lbs (454g)

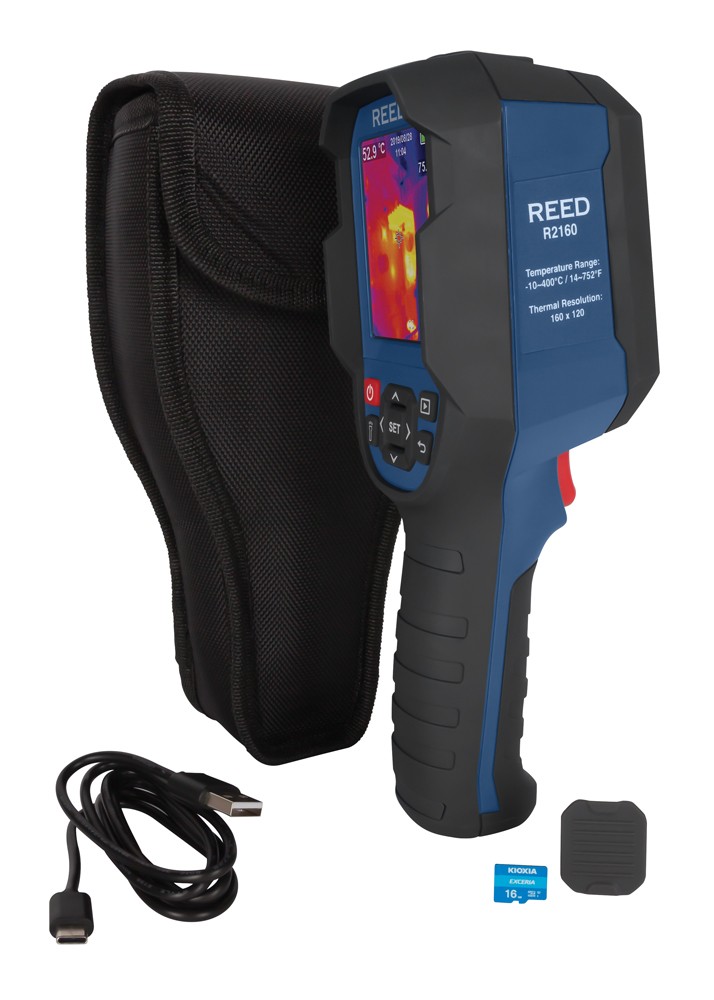

What's included with the REED R2160

  • Thermal Imaging Camera
  • USB Cable
  • Lens Cover
  • 16 GB Micro SD Card
  • Soft Carrying Case

Ideal Applications for the REED R2160

  • Home and building inspection
  • Plant and general maintenance

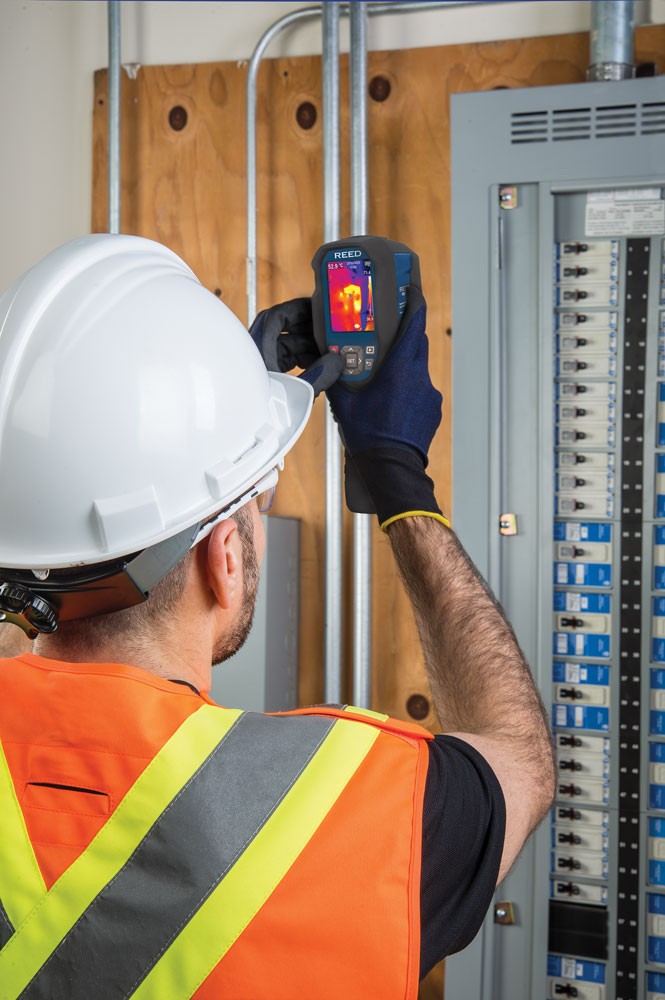

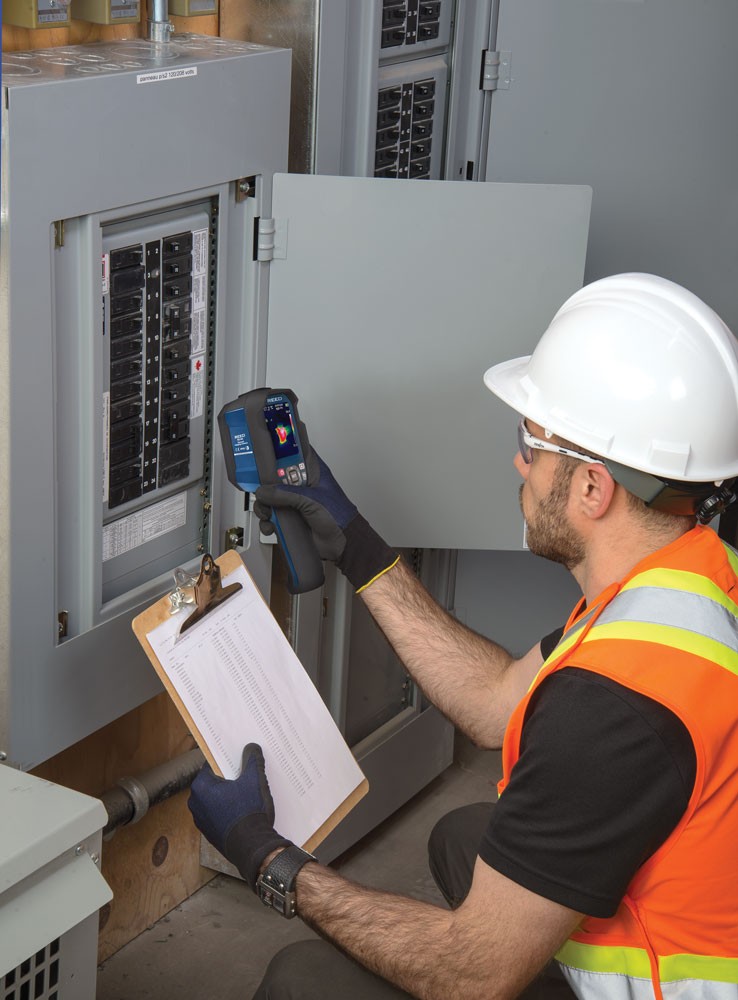

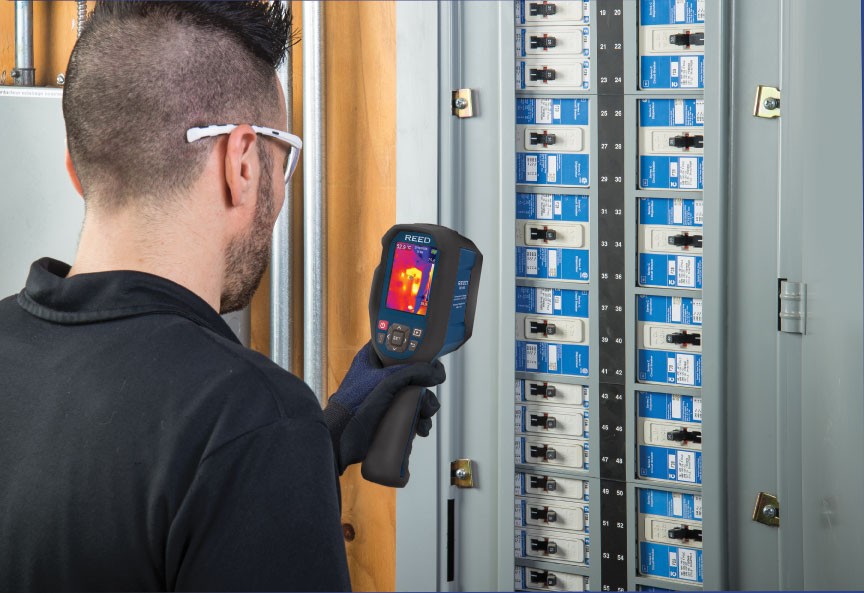

  • Electrical and mechanical inspection
  • Predictive maintenance
  • HVAC/R and plumbing
  • Equine and veterinary
  • Road construction
