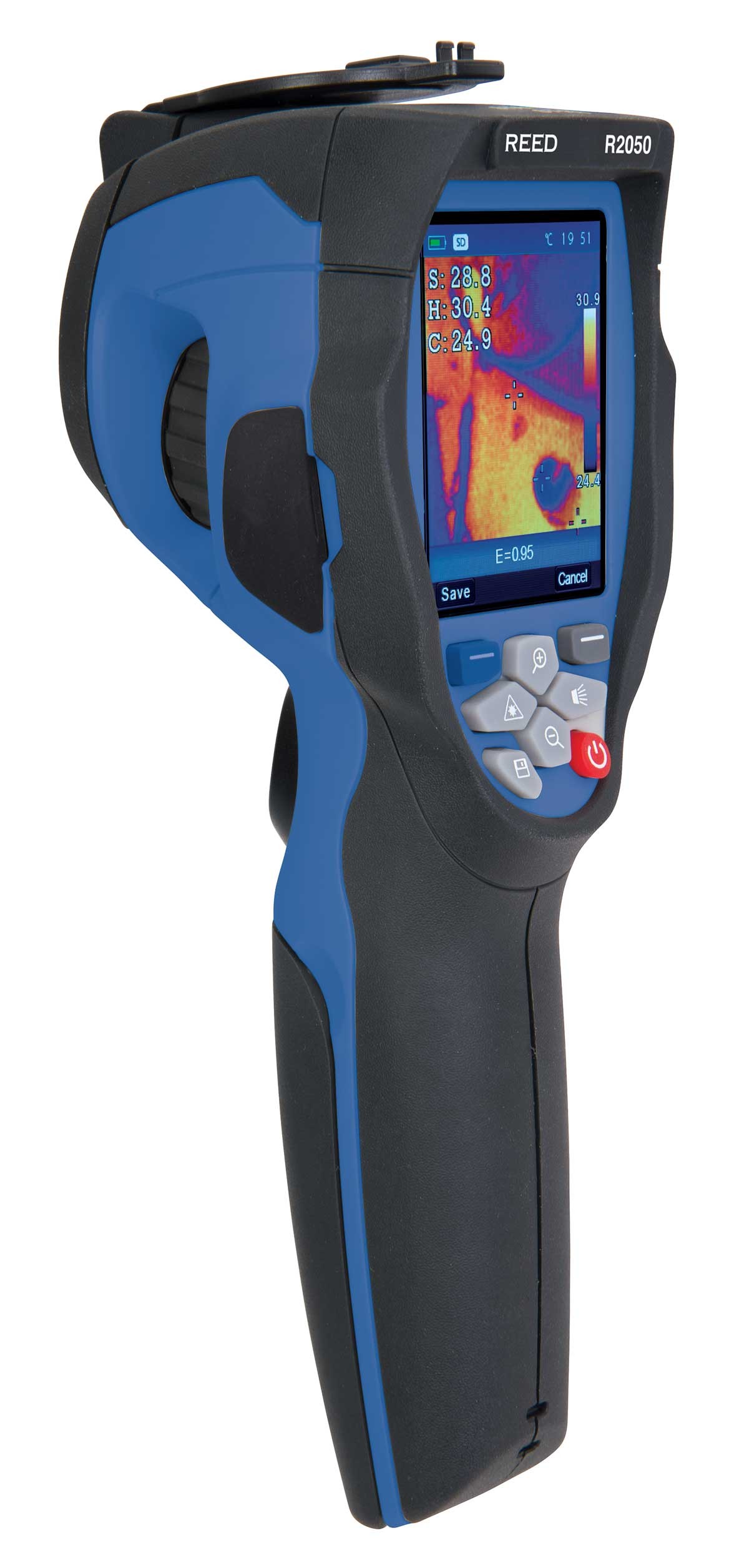

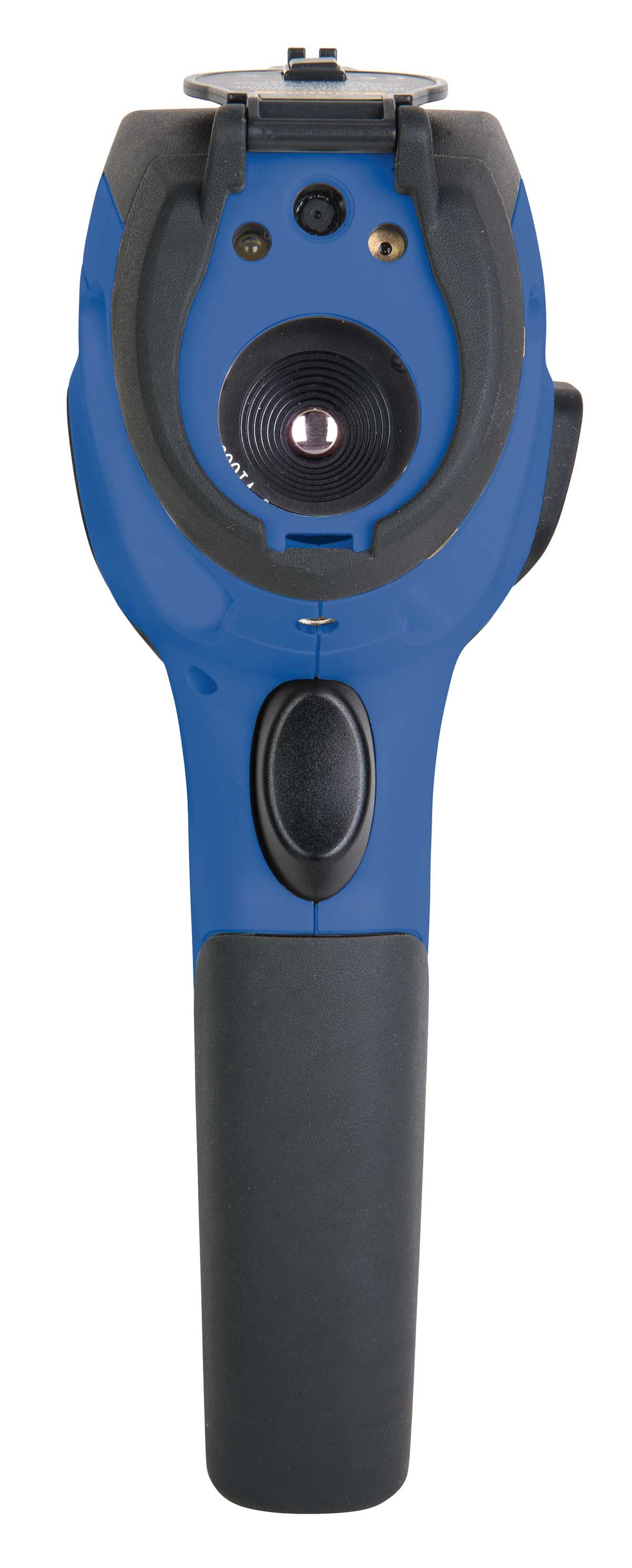

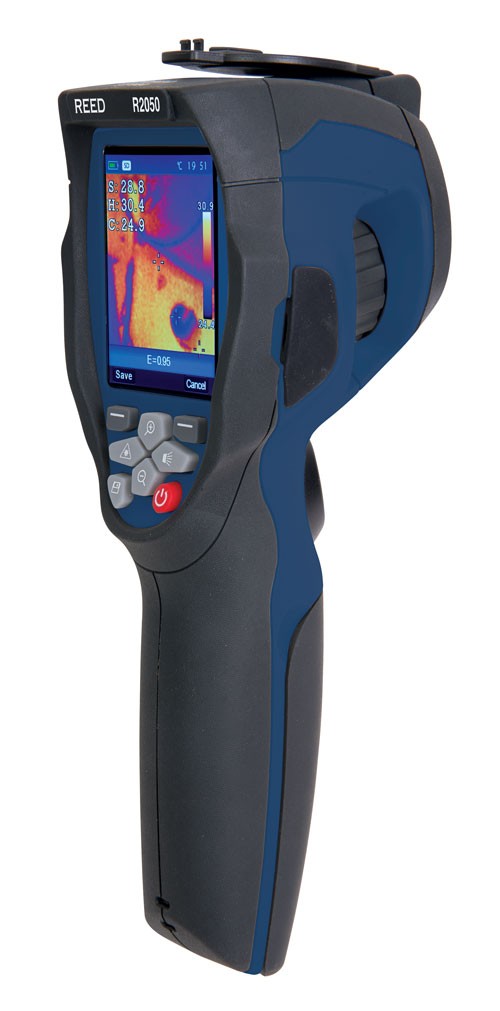

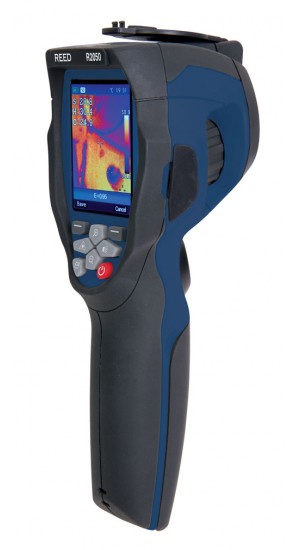

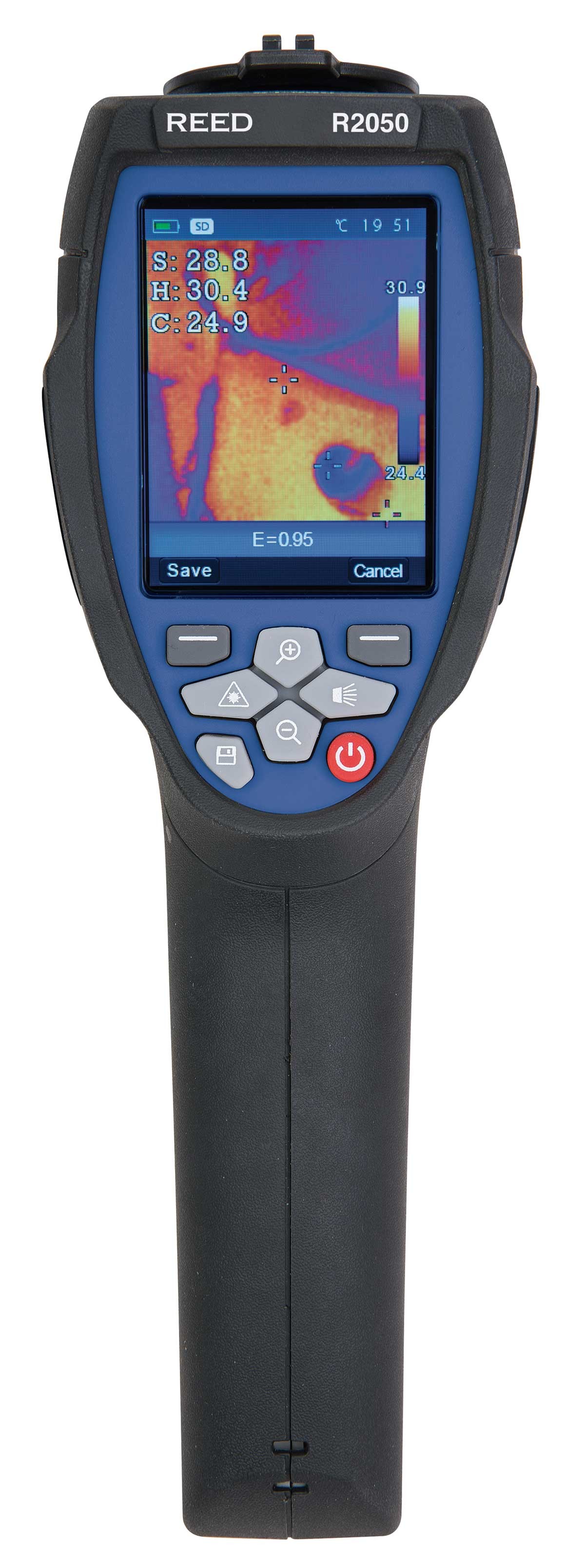

REED R2050 Thermal Imaging Camera, 6,400 Pixels (80 x 80)

Model: R2050 | UPC: 800837001016

REED R2050 Thermal Imaging Camera, 6,400 Pixels (80 x 80)

Model: R2050 | UPC: 800837001016

3 image modes (infrared/visual camera/picture in picture), choice of 4 color palettes.

Sorry! This product has been discontinued.

The REED R2050 Thermal Imaging Camera, 6,400 Pixels (80 x 80) has been discontinued, it has been replaced by the REED R2100 Thermal Imaging Camera

REED R2050 Offers

This entry-level thermal imaging camera features an 80 x 80 (6,400 pixels) infrared sensor that can detect temperatures between -4 to 662°F (-20 and 350°C). The R2050 is capable of displaying thermal and visual images on a vivid 2.8" LCD display and has the ability to take infrared and visual images and record video with audio (voice annotations).


  • 80 x 80 infrared resolution (6,400 pixels)
  • 2.8" color LCD display
  • Built-in laser and white LED flashlight
  • 5 megapixel digital camera
  • Video recording with voice annotations
  • 3 image modes (infrared/visual camera/picture in picture)
  • Choice of 4 color palettes
  • Automatic level and span function
  • HDMI output and expandable memory (Micro SD)
  • Rechargeable li-ion battery
  • Tripod mountable for continuous long-term monitoring
  • Low battery indicator and auto shut off

REED R2050 Specifications

Imaging and Optical
Field of View (FOV) 17°x 17°
Minimum Focus Distance 0.5m
Thermal Sensitivity (NETD) < 0.1°C @  +86°F (30°C) / 100 mK
Image Capture Frequency 50Hz
Focus Manual
Temperature Range Low Range: -4 to 302°F (-20 to 150°C)
High Range: 32 to 662°F (0 to 350°C)
Accuracy ±3.6°F (2°C) or ±2% of reading
Resolution 0.1 or 1°F/°C
Detector Type Uncooled microbolometer, Focal plane array (FPA)
Spectral Range 8 to 14μm
IR Resolution 80 x 80 (6,400 pixels)
Image Presentation
Display 2.8" color (240 X 320 pixels)
Image Modes IR image, visual image, picture in picture
Color Palettes 4 (Gray / Gray Inverted / Iron / Rainbow)
Measurement Analysis
Spot Meter Center
Emissivity Adjustable (0 to 1.00)
Automatic Hot/Cold Detection Auto hot or cold spotmeter markers
Measurement Corrections Emissivity, reflected temperature
General Specifications
Zoom 32x continuous, digital zoom
Digital Camera 5 Megapixels
Image Format JPEG on memory card >2000 pictures
Video Out HDMI
Video Camera and Annotations Yes
Laser Indicator Yes
LED Flashlight Yes
External Memory Micro SD card
Auto Shut-off Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply Rechargeable li-ion battery
Battery Life Approx. 4 hours
Charging System In Camera (AC Adapter)
PC Connectivity USB Cable
Software Yes (Included)
Software OS Compatibility Windows XP / 7 / 8 / 10
Supported Languages English, Chinese, French, German, Spanish
Laser Class II
Product Certifications CE, IP65, 6.6' (2m) drop test
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity Range 10 to 90%
Dimensions 8.8 x 3 x 7.8" (224 x 77 x 96mm)
Weight 1.1lbs (500g)

What's included with the REED R2050

  • Thermal Imager
  • Li-ion Battery
  • AC Adapter with plugs
  • Micro SD Card
  • USB and HDMI Cable
  • Earphones
  • Wrist Strap
  • Software
  • Soft Carrying Case

Introducing the R2050 Thermal Imaging Camera

With 80 x 80 pixels and many standout features at an exceptional price point

Ideal Applications for the REED R2050

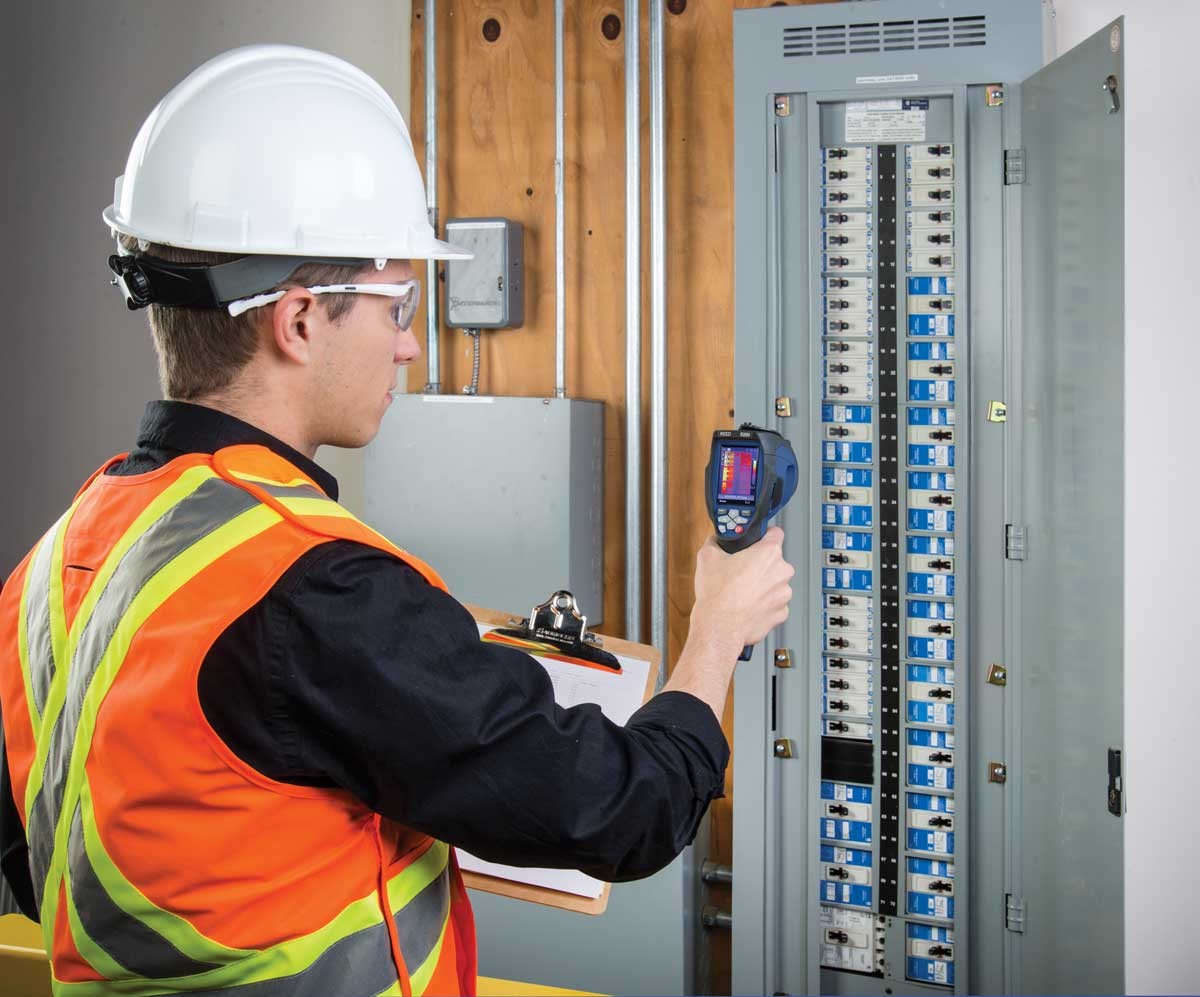

  • Electrical and Mechanical Inspection
  • Building inspection
  • Predictive maintenance
  • Equipment troubleshooting
