REED R1610 Thermo-Hygrometer, Bluetooth Smart Series
Model: R1610 | UPC: 800837006066
REED R1610 Thermo-Hygrometer, Bluetooth Smart Series
Model: R1610 | UPC: 800837006066
Real-time data logging Thermo-Hygrometer with Bluetooth 5.0 connectivity wirelessly connects to the REED Smart Series App.
REED R1610 Offers

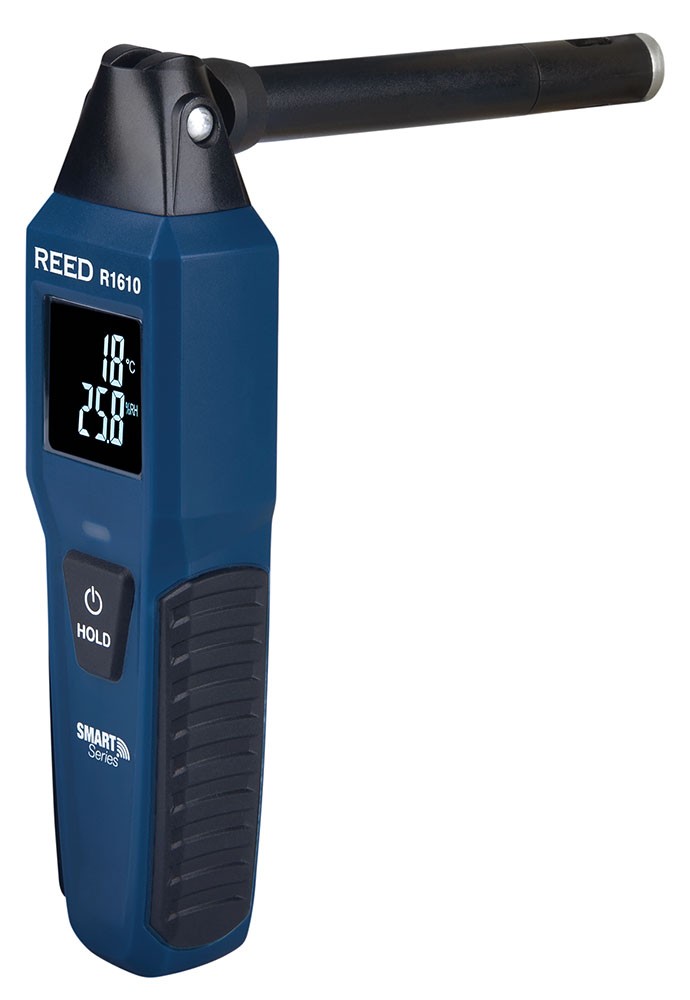

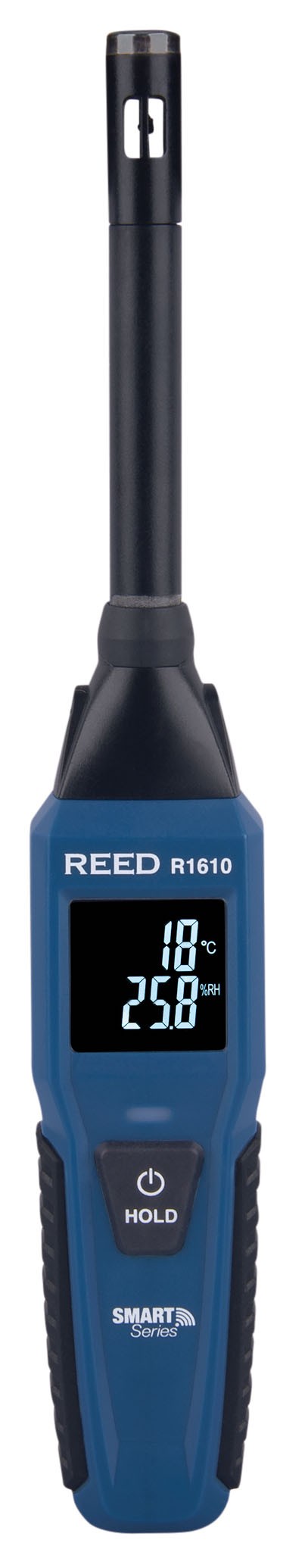

The R1610 is a compact thermo-hygrometer that measures ambient temperature and relative humidity. The instrument can be used either stand-alone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1610 can be set up to data log measurements over a given period.
Features
- Measures ambient temperature and humidity
- Easy to operate, designed for one-hand operation
- Bendable probe shaft enables easy access to ducts
- Integrated display provides flexibility for use without a mobile device
- Magnetic Backing allows the instrument to be mounted to metallic surfaces
- Data Hold function
- User selectable °C, or °F
- Low battery indicator and auto shut off
- Tripod mount for long-term monitoring
When used with the REED Smart Series App:
- Real-time data logger
- User-selectable sampling rate from 1 to 120 seconds
- Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
- Connect, measure and data log up to 6 instruments, simultaneously
- Easy setup with automatic app integration for compatible REED Smart Series instruments
- Export data via Excel or PDF and create custom reports that can be emailed from a mobile device
REED R1610 Specifications
| Temperature | |
| Measuring Range | -4 to 140°F (-20 to 60°C) |
| Accuracy | -4 to 32°F (-20 to 0°C): ±1.6°F (0.8°C) 32 to 140°F (0 to 60°C): ±1°F (0.5°C) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Range | 0 to 100% RH |
| Accuracy | 20 to 80% RH: ±3.5% rdg. 0 to 20% & 80 to 100% RH: ±5% rdg. |
| Resolution | 0.1% RH |
| General Specifications | |
| Display | Multi-Line Enhanced Black Twisted Nematic (EBTN) LCD |
| Display Size | 1.3" (34mm) |
| Backlit Display | Yes |
| Data Hold | Yes |

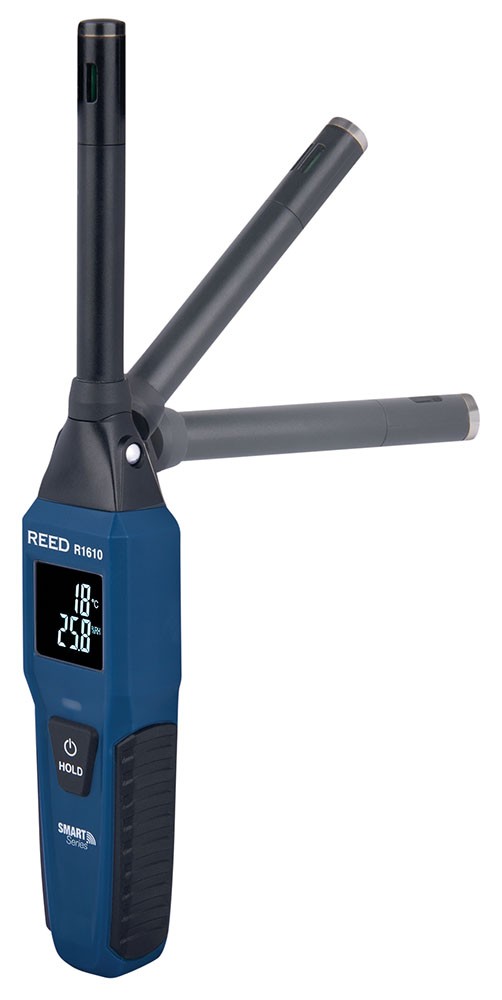

| Adjustable Flex Probe | Yes (90° swivel) |
| Probe Shaft Length | 3.7" (95mm) |
| Probe Diameter | 0.43" (11mm) |
| Data Logging Capabilities | Yes (with Smart Series App) |
| Real-Time Clock and Date Stamp | Yes (with Smart Series App) |
| Customizable Sampling Rate | Yes |
| Overrange Indicator | Yes |
| Auto Shut-Off | Yes (adjustable) |
| Tripod Mountable | Yes |
| Magnetic Backing | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AAA Batteries |
| Battery Life | Approx. 50 hours (sampling time dependent) |
| Connectivity | Bluetooth® 5.0 |
| Bluetooth® Range | Up to 246' (75m) |
| Max # of Connected Devices | 6 |
| Software | REED Smart Series App (iOS and Android) |
| App Supported Languages | English, French |
| Product Certifications | CE, UKCA, FCC, IC ID |
| Maximum Operating Altitude | 6561' (2000m) |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Storage Humidity Range | 10 to 90% |
| Dimensions | 9.4 x 1.5 x 1" (240 x 38 x 25mm) |
| Weight | 3.2oz (88g) |
What's included with the REED R1610
- Thermo-Hygrometer
- 4 x AAA Batteries
Ideal Applications for the REED R1610
- Environmental studies
- Food distribution
- HVAC/R system installation/evaluation
- Greenhouses and industrial spaces
- Saunas
- Humidors
- Museums
- Lab monitoring
REED Smart Series App
REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device.
App Features:
- Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
- Connect, measure, and data log up to 6 instruments, simultaneously
- Easy setup with automatic app integration (Bluetooth pairing not required)
- Measurement data is displayed as instrument readings, tables, or graphs
- Save data in PDF or Excel Format
- Create custom reports that can be saved on a mobile device or sent by email
REED Smart Series App Download
Depending on the device type, click the icons below to download the appropriate App.
