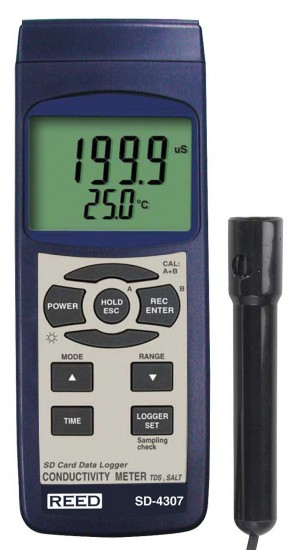

REED SD-4307 Data Logging Conductivity/TDS/Salinity Meter
Model: SD-4307 | UPC: 800837001887
REED SD-4307 Data Logging Conductivity/TDS/Salinity Meter
Model: SD-4307 | UPC: 800837001887
Real-time data logger with integrated SD memory card (optional) measures/records conductivity, total dissolved solids (TDS) and salt levels in water with automatic temperature compensation.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED SD-4307 Offers
This SD Series datalogger is capable of measuring conductivity, total dissolved solids (TDS) and salt levels in water. The SD-4307 features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using an SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.
Features
- Measures conductivity, total dissolved solids (TDS) and salt levels in water
- Automatic temperature compensation
- Real time datalogger with integral SD memory card (optional)
- User selectable sampling rate
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Optional PC software features live tracking via USB connection
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED SD-4307 Specifications
| Conductivity | |
| Measuring Range | 200µS/cm, 2mS/cm, 20mS/cm, 200mS/cm |
| Accuracy | ±(2% +1 dgt) |
| Resolution | 0.1µS, 0.001mS, 0.01mS, 0.1mS |
| TDS (Total Dissolved Solids) | |
| Measuring Range | 200, 2000, 20,000, 200,000 ppm |
| Accuracy | 0.1, 1, 10, 100 ppm |
| Resolution | ±(2% +1 dgt) |
| Salinity | |
| Measuring Range | 0-12% (% weight) |
| Accuracy | ±0.5% |
| Resolution | 0.0001 |
| General Specifications | |
| Display | Dual Display, LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s) |
| External Memory | Yes, expandable up to 16Gb with SD card (optional) |
| Auto Shut-off | Yes (after 10 mins/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA batteries or AC Adapter (optional) |
| Output | Yes |
| Battery Life | Sampling Time Dependent |
| PC Connectivity | USB Cable (optional) |
| Software | SW-U801-WIN Software (optional) |
| Software OS Compatibility | Windows XP / Vista / 7 |
| Product Certifications | CE |
| Operating Temperature | Meter: 32 to 122°F (0 to 50°C) Probe: 32 to 140°F (0 to 60°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-80% |
| Dimensions | 7 x 2.7 x 1.9" (177 x 68 x 45mm) |
| Weight | 1.1 lb (515g) |

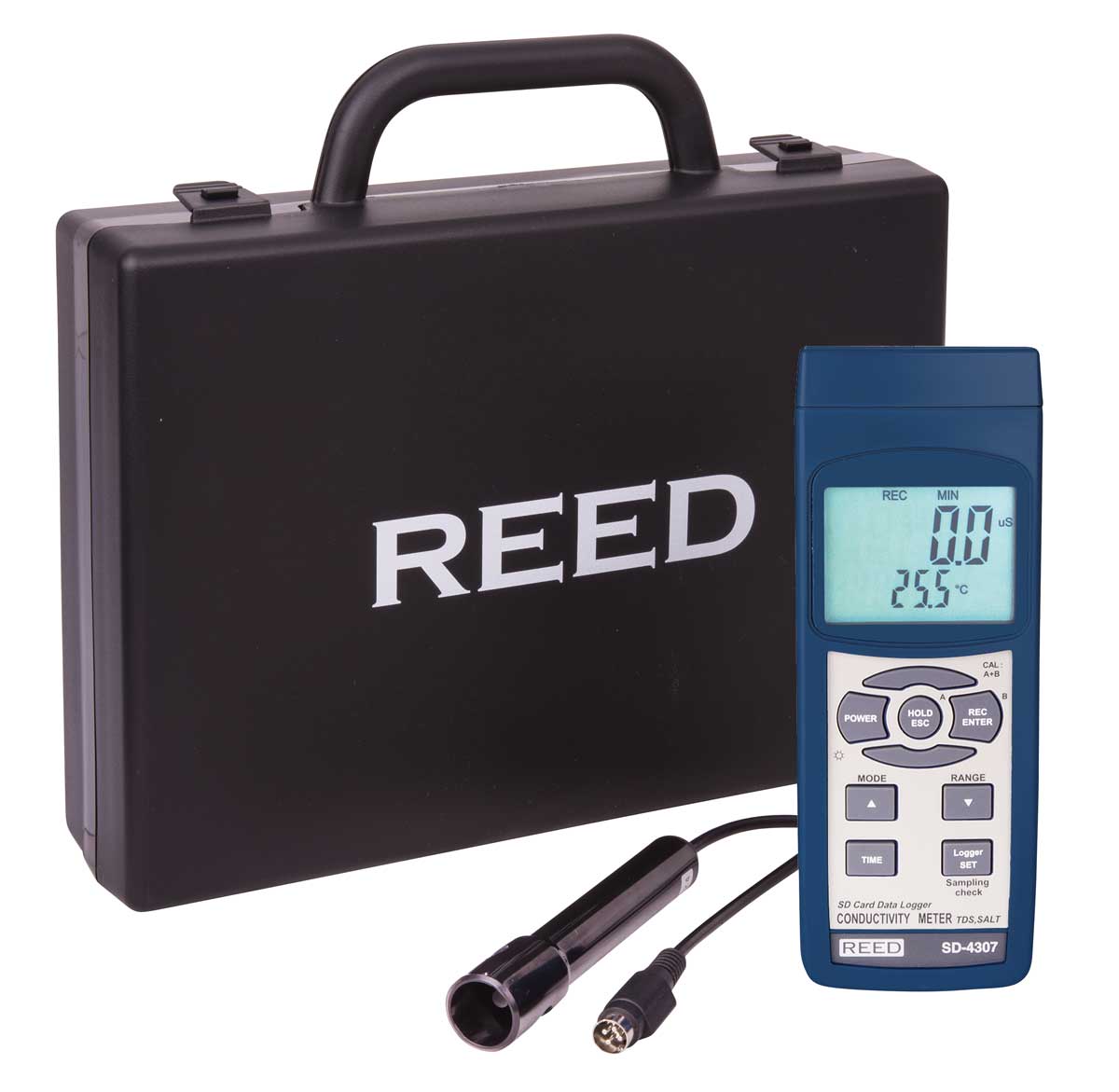

What's included with the REED SD-4307
- Conductivity/TDS/Salinity Datalogger
- Probe
- Hard Carrying Case
- Batteries
Ideal Applications for the REED SD-4307
- Water Conditioning
- General purpose pH measurement
- Aquariums
- Wastewater monitoring
- Beverage Production
