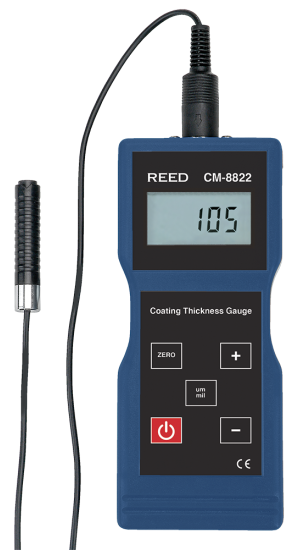

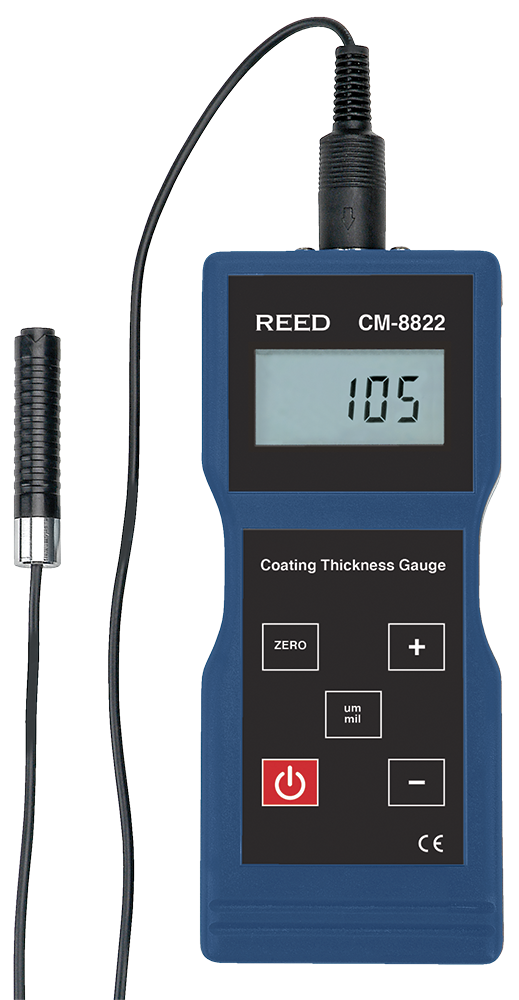

REED CM-8822 Coating Thickness Gauge
Model: CM-8822 | UPC: 800837000323
REED CM-8822 Coating Thickness Gauge
Model: CM-8822 | UPC: 800837000323
Quick responding, capable of measuring ferrous and non-ferrous substrates.
REED CM-8822 Offers
This coating thickness gauge includes ferrous and non-ferrous probes and features a zero button for quick adjustment in the field. The CM-8822 has a easy-to-read LCD display and basic accuracy of 3%.
Features
- Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates
- User selectable µm/mils
- Probe allows for readings in tight spaces
- Easy-to-read LCD display
- Automatic probe recognition
- Zero adjustment button
- Automatic calibration
- Low battery indicator
- Designed to meet ISO 2178 and ISO 2361 standards
REED CM-8822 Specifications
| Measuring Range | 0 to 40mils (0 to 1000µm) |
| Accuracy | <100µm: ±2µm >100µm: ±3% of rdg. |
| Resolution | 0.1µm (0 to 99.9µm) 1µm (<100µm) |
| Sampling Time | 1 second |
| Display | LCD |
| Zero Button | Yes |
| Length of Probes | 3' (36") |
| Power Supply | 4 x AA Batteries |
| Low Battery Indicator | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 20 to 90% |
| Dimensions | 6.3 x 2.7 x 1.25" (161 x 69 x 32mm) |
| Weight | 1.99lbs (0.9kg) |

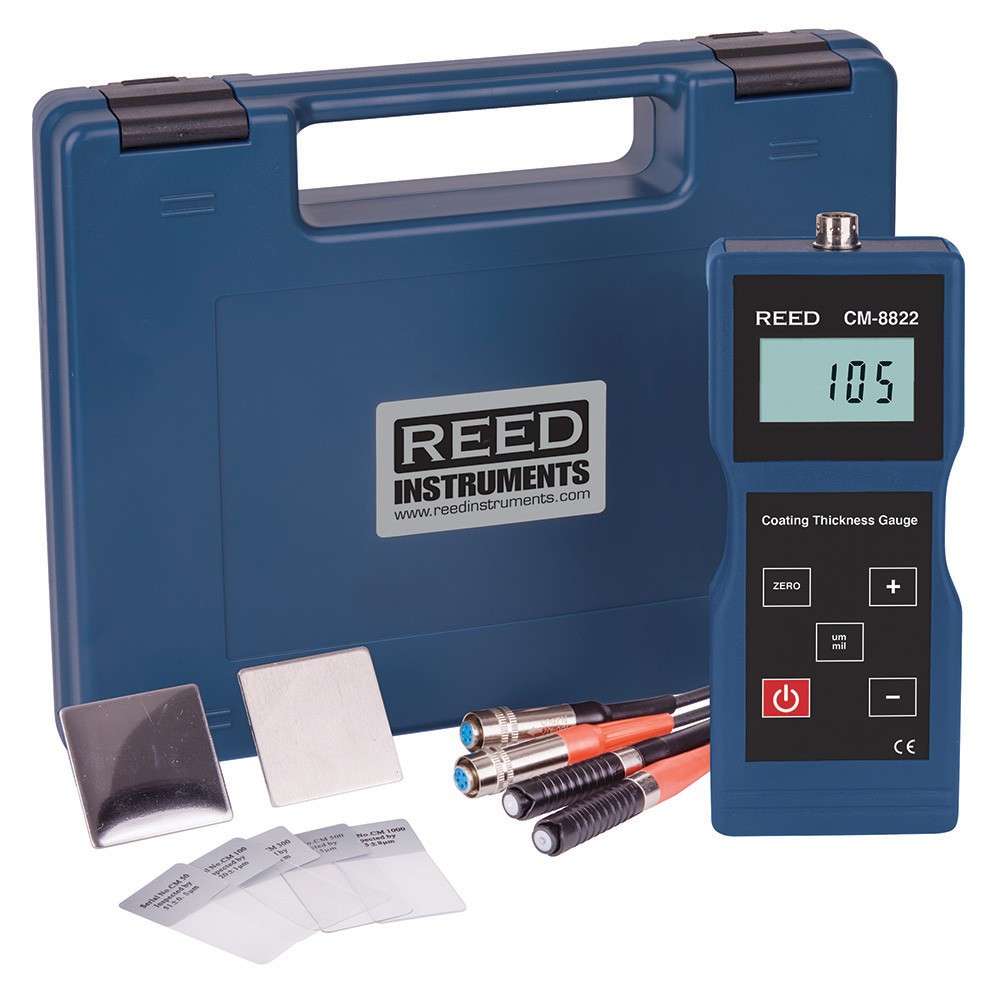

What's included with the REED CM-8822
- Coating Thickness Gauge
- Ferrous Probe
- Non-Ferrous Probe
- Calibration Standards
- Battery
- Hard Carrying Case
Ideal Applications for the REED CM-8822
- Verification of paint thickness
- Automotive industry
- Plating thickness
- Industrial manufacturing
