REED C-383 Combustible Gas Leak Detector
Model: C-383 | UPC: 800837000248
REED C-383 Combustible Gas Leak Detector
Model: C-383 | UPC: 800837000248
Tricolor LED bar indicator and 15", (390mm) gooseneck for hard to reach areas.
REED C-383 Offers
This combustible gas leak detector is capable of detecting a number of gases including: natural gas, methane, benzene, ethane, propane, butane, acetone, alcohol, ammonia, gasoline, jet fuel, industrial solvents, lacquer, paint thinner and naptha. The C-383 can detect leaks as small as 5ppm of gasoline.
Features
- Detects a wide range of combustible gases including: gasoline, propane, natural gas and fuel oil
- Quick response and high accuracy detects small leaks
- 15" (390mm) gooseneck for hard to reach areas
- Designed for one-handed operation
- Ambient concentration reset function
- User adjustable sensitivity (High/Low)
- Tricolor visual indicator
- Audible (buzzer) and visual (LED) alarm indicators
- Self test sequence on start-up
- Low battery indicator and auto shut off
- User replaceable sensor
REED C-383 Specifications
| Detected Gases | Natural Gas, Methane, Benzene, Ethane, Propane, Butane, Acetone, Alcohol, Ammonia, Gasoline, Jet Fuel, Industrial Solvents, Lacquer, Paint Thinner, Naptha |
| Sensitivity | 5ppm (Gasoline) |
| General Specifications | |
| Sensor Type | Heated semiconductor gas sensor |
| Display | Tricolor LED bar indicator |
| Alarm | Audible (buzzer) and Visual (bar indicator) |
| Sensitivity Settings | Low and High |
| Warm-up Time | 10 seconds |
| Response Time | Less than 1 second |
| Auto Shut-off | Yes (after 10 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 4 AA batteries |
| Battery Life | Approx. 40 hours |
| Product Certifications | CE, RoHS |
| Probe Length | 15" (390mm) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-70% |
| Dimensions | 8.5 x 2.6 x 2.2" (217 x 66 x 56mm) |
| Weight | 9.3 oz (265g) |

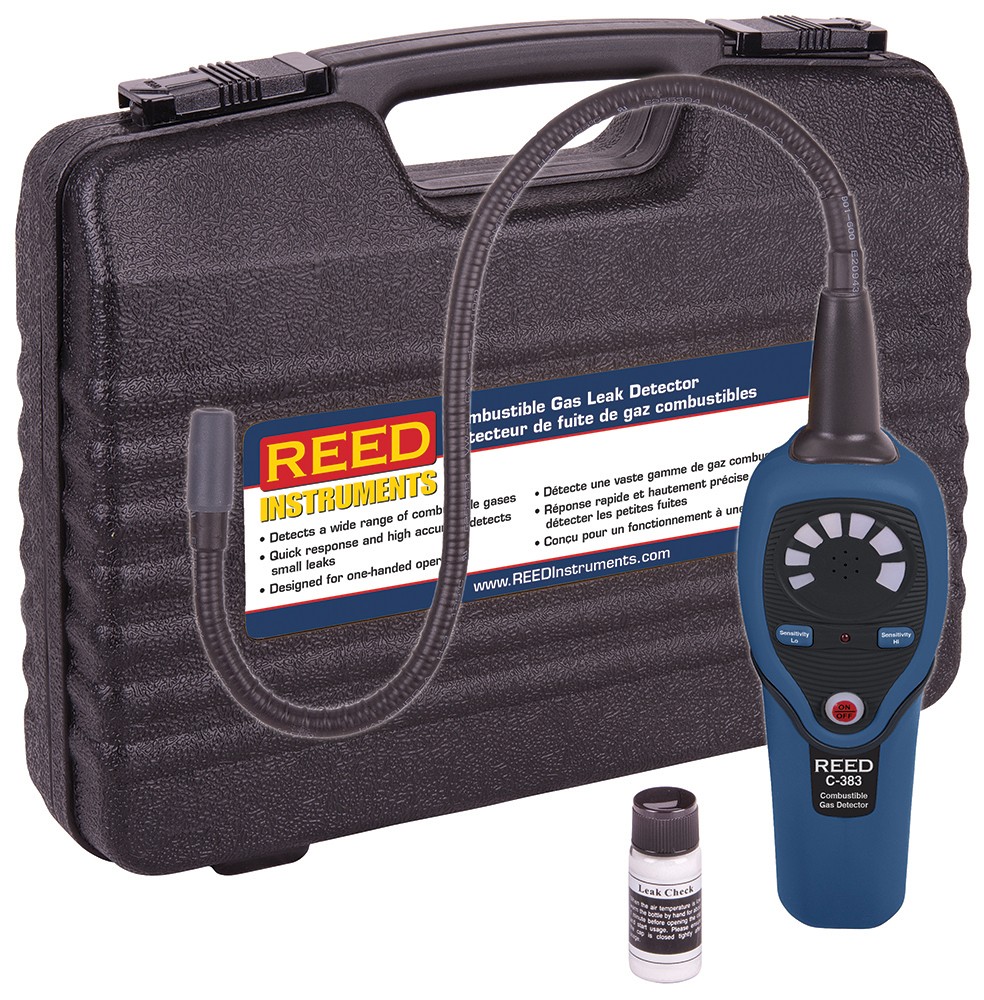

What's included with the REED C-383
- Combustible Gas Leak Detector
- Reference Leak Source
- Batteries
- Hard Carrying Case
REED C-383 Combustible Gas Leak Detector
Ideal Applications for the REED C-383
- Residential and commercial safety
- Detect combustibles and toxins in welding shops
- Detect hazardous vapors in wastewater treatment plants
- Confined spaces (i.e. tanks, pits, vessels and storage bins)
