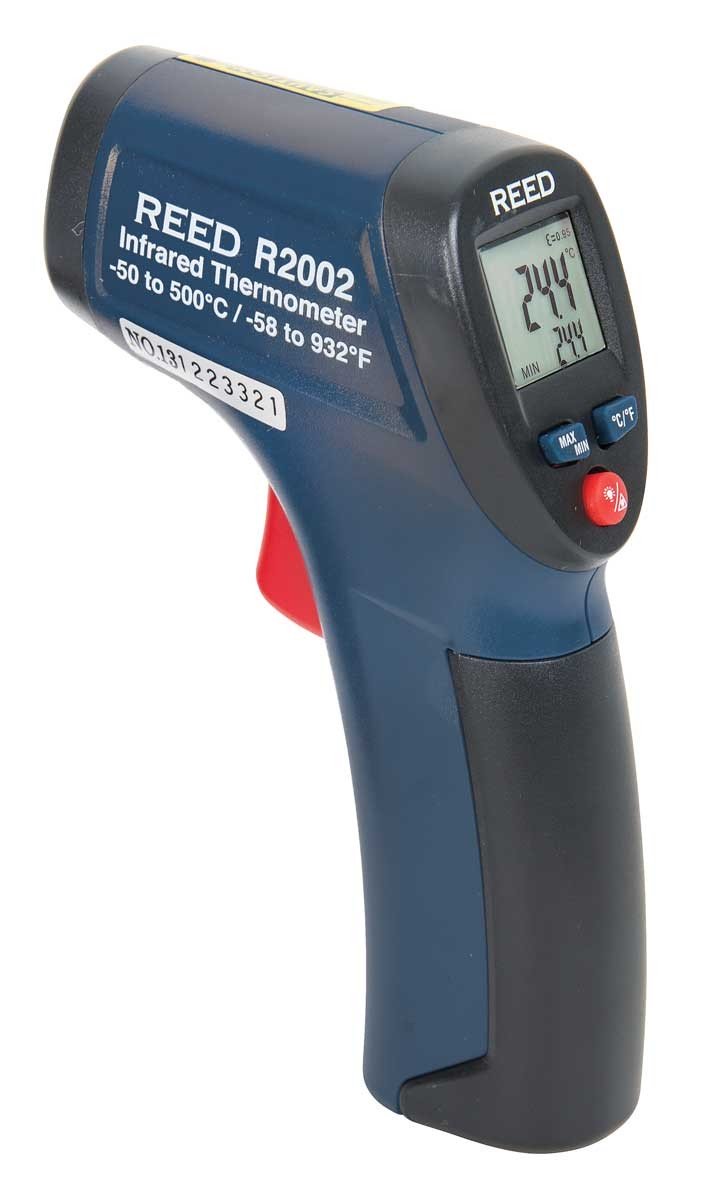

REED R2002 Compact Infrared Thermometer, 8:1, 932°F (500°C)

Model: R2002 | UPC: 800837000989

REED R2002 Compact Infrared Thermometer, 8:1, 932°F (500°C)

Model: R2002 | UPC: 800837000989

Pocket-sized infrared thermometer with backlit display and fixed emissivity will cover 90% of non-contact temperature applications.

Sorry! This product has been discontinued.

The REED R2002 Compact Infrared Thermometer, 8:1, 932°F (500°C) has been discontinued, it has been replaced by the REED R2310 Infrared Thermometer, 12:1, 1202°F (650°C)

REED R2002 Offers

This pocket-sized compact infrared thermometer features on screen min/max temperature readings and a backlit display allowing you to take measurements in low-light environments. The R2002 also features an 8:1 distance to spot ratio and is capable of measuring temperature applications up to 932°F (500°C).


  • Built-in laser pointer identifies target area
  • Compact size
  • 8:1 distance to spot size ratio
  • User selectable °F or °C
  • Fixed emissivity covers 90% of applications
  • Automatic data hold with on-screen min/max readings
  • Backlit display
  • Low battery indication and auto shut off

REED R2002 Specifications

Temperature Range -58 to 932°F (-50 to 500°C)
Accuracy ±2% of reading or 4°F (2°C)
Resolution 0.1°F (0.1°C)
Optical Resolution (D:S) 8:1
Spectral Response 6 to 14µm
Emissivity 0.95 (Fixed)
Response Time <1 sec
Display Size/Type 1" LCD
Backlit Display Yes
Display Hold Yes
Max/Min Yes
F/C Switchable Yes
Auto Shut Off Yes (after 8 secs)
Laser Class Class II
Low Battery Indicator Yes
Power Supply 9V battery
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 10-90%
Dimensions 5.2 x 3.2 x 1.4" (131 x 82 x 35mm)
Weight 4.6oz (130g)

What's included with the REED R2002

  • Compact Infrared Thermometer
  • Carrying Case
  • Battery

Ideal Applications for the REED R2002

  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC/R energy audits to determine leaks, infiltration
