REED R4700SD Data Logging Environmental Meter
Model: R4700SD | UPC: 800837004772
REED R4700SD Data Logging Environmental Meter
Model: R4700SD | UPC: 800837004772
Real-time data logger with integrated SD memory card measures/records velocity and temperature, ambient and contact temperatures, relative humidity, and light levels.
REED R4700SD Offers

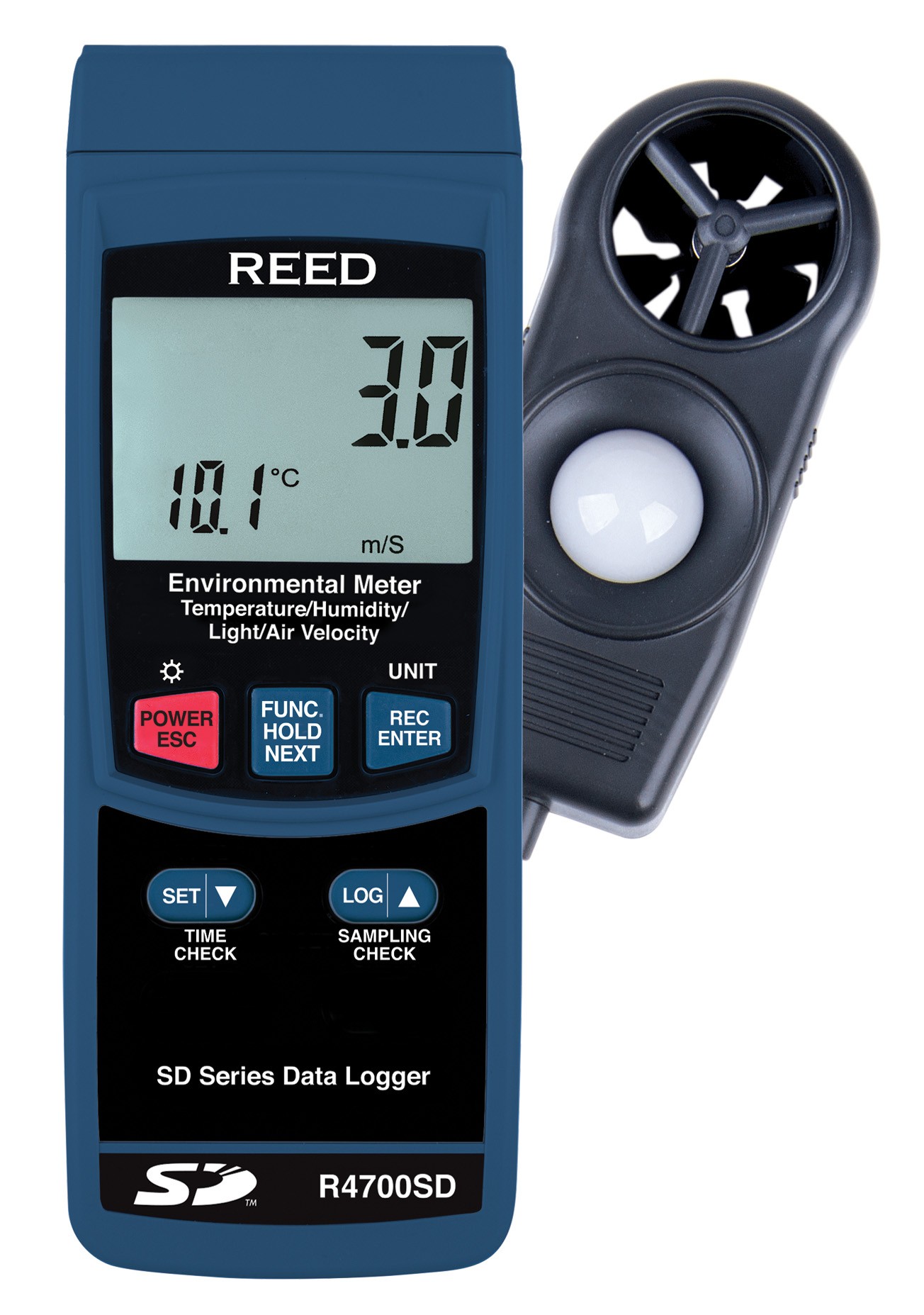

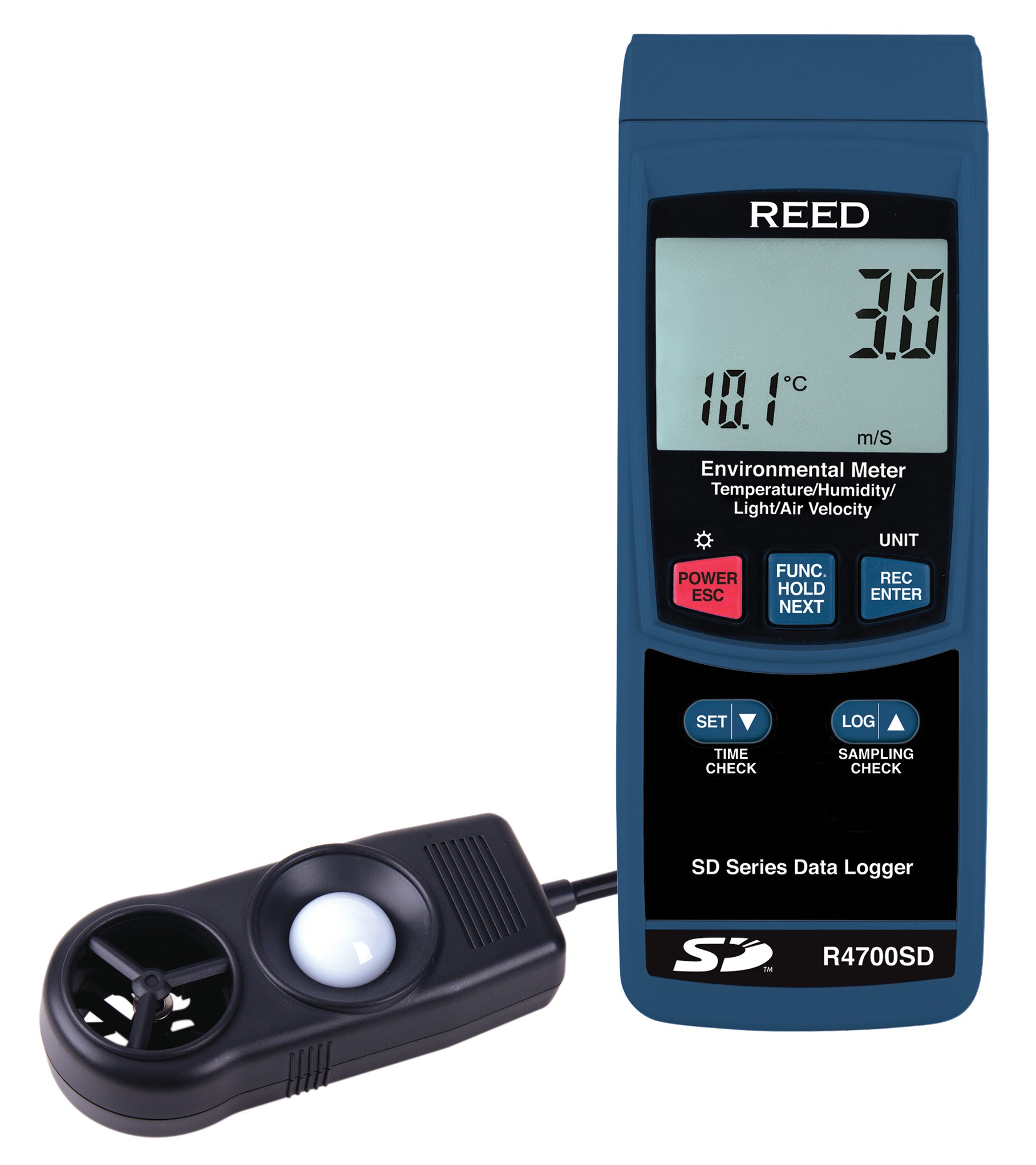

The R4700SD is a 6-in-1 environmental meter that measures air velocity, air temperature, ambient temperature, relative humidity, light and contact temperature measurements. Has the ability to capture sound level measurements using the R4700SD-SOUND adapter (optional). The R4700SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
Features
- Measures air velocity/temperature, relative humidity, light, and contact temperature
- Measures sound level (dB) with R4700SD-SOUND (sold separately)
- Air velocity is measured in m/s, ft/min, km/h, mph or knots
- Light levels are measured in foot-candles or lux
- Temperature is measured in °C or °F
- Data hold and Min/Max functions

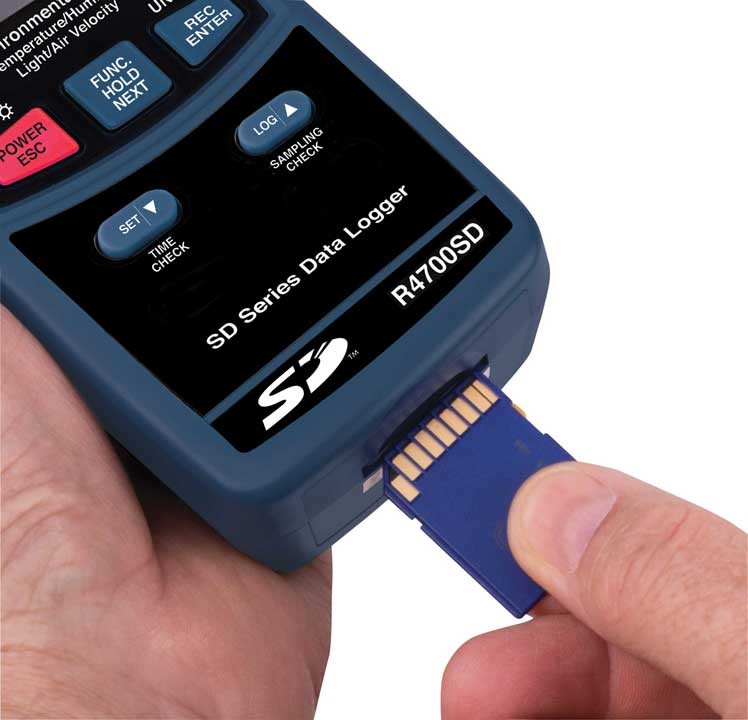

- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R4700SD Specifications
| Air Velocity | |
| Measuring Ranges | m/s: 0.4 to 30.0 km/h: 1.4 to 108 mph: 0.9 to 67.1 fpm: 79 to 5906 knots: 0.8 to 58.3 |
| Accuracy | ±2% + 0.2 m/s (0.8 km/h; 0.4 mph; 40 fpm; 0.4 knot) |
| Resolution | 0.1 m/s, km/h, mph, knot, 1 fpm |
| Temperature | |
| Measuring Ranges | Air Temperature: 32 to 122.0°F (0 to 50°C) Contact Temperature Type K Temperature: -148 to 2372°F (-100 to 1300°C) Type J Temperature: -148 to 2192°F (-100 to 1200°C) |
| Accuracy | Air Temperature: ±0.8°C (±1.5°F) Contact Temperature ≥-58°F (-50°C) ±(0.4% + 1.5°F (0.8°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Ranges | 5 to 95% RH |
| Accuracy | >70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH |
| Resolution | 0.1% RH |
| Light | |
| Measuring Ranges | 0 to 20,000 Lux (0 to 1,860 Ft-cd) |
| Accuracy | ±(5% rdg ± 8 dgt) |
| Resolution | 1 Lux/0.1 Ft-cd |
| Sound (Optional, R4700SD-SOUND Adapter Sold Separately) | |
| Measuring Ranges | 30 to 80dB 50 to 100dB 80 to 130dB |
| Accuracy | Basic Accuracy of ±3.5dB |
| Resolution | 1dB |
| General Specifications | |
| Response Time | 1 second |
| Display | 4-digit dual LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Zero Adjustment | Yes (for Light) |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 85% |
| Dimensions | Instrument: 5.3 x 2.4 x 1.3" (135 x 60 x 33mm) Probe: 4.1 x 1.8 x 1.1" (105 x 46 x 29mm) |
| Weight | 1.1lb (515g) |

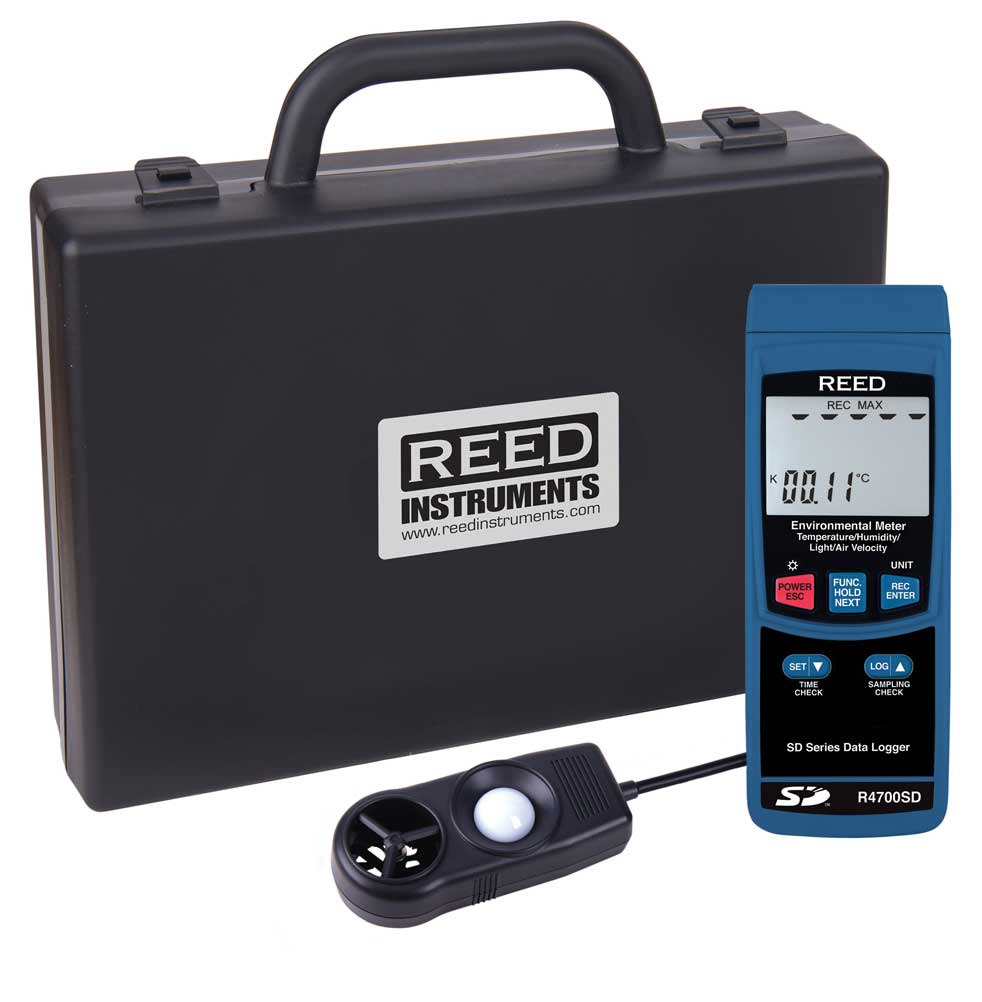

What's included with the REED R4700SD
- Data Logging Environmental Meter
- Multi-Function Probe
- Hard Carrying Case
- Batteries
Measure various temperatures with the R4700SD Data Logging Environmental Meter
Need something that measures ambient temperature, contact temperature, relative humidity, and light levels? The R4700SD Environmental Meter will get the job done! It's a 6-in-1 meter that is capable of also capturing sound level measurements using the optional R4700SD-SOUND adapter. This data logging environmental meter also features data hold, Max/Min functions, and an easy-to-read backlit LCD display.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R4700SD
- Meteorological stations
- Environmental monitoring
