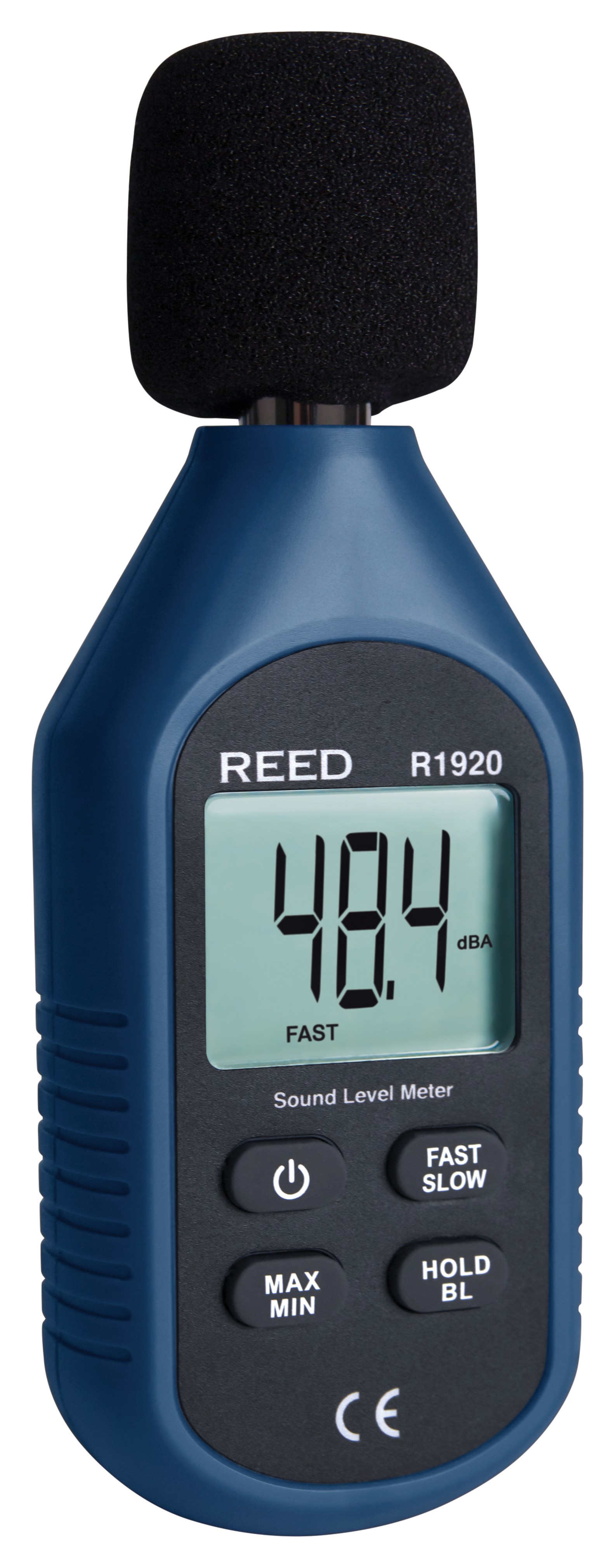

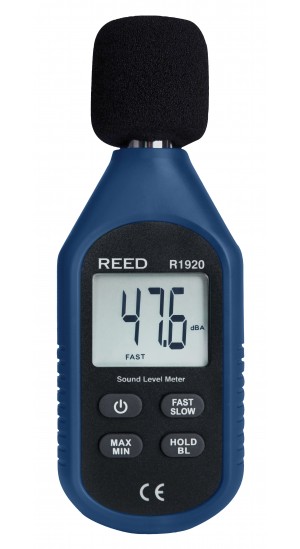

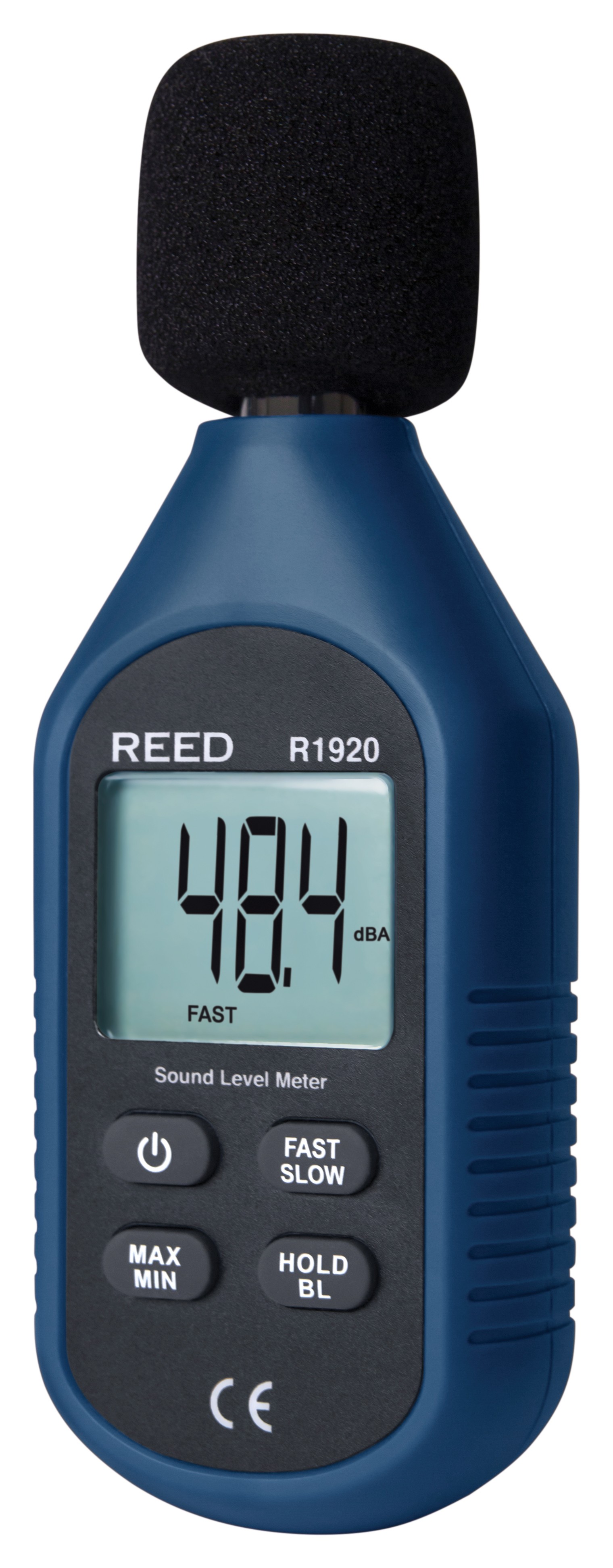

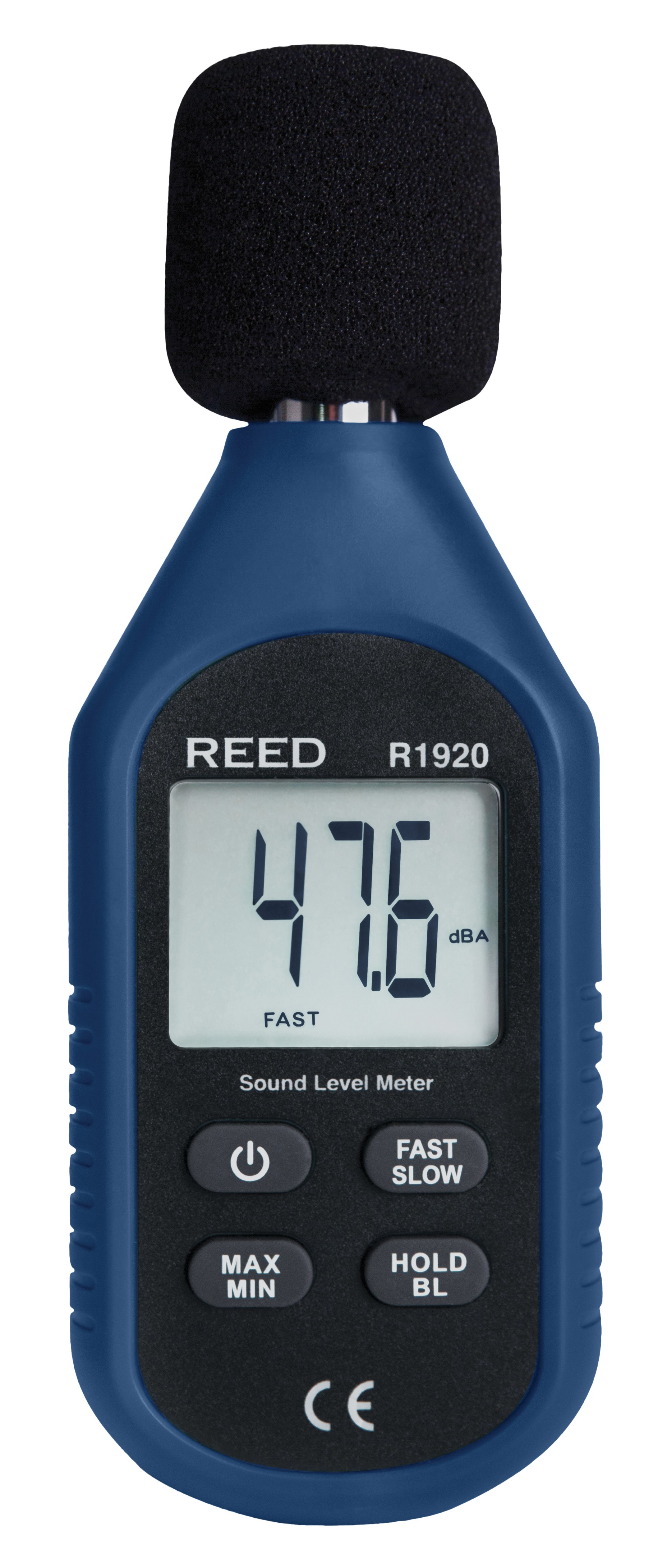

REED R1920 Compact Sound Level Meter
Model: R1920 | UPC: 800837002419
REED R1920 Compact Sound Level Meter
Model: R1920 | UPC: 800837002419
Backlit LCD display with fast and slow time weighting.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R1920 Offers
This compact sound level meter measures sound. The R1920 features Data Hold and Min/Max functions and is designed for one-handed operation.
Features
- Designed for one-handed operation
- High accuracy of ±1.5 dB
- Fast & slow time weighting
- Backlit LCD display
- Max, min and data hold functions
- Low battery indicator and auto shut off
REED R1920 Specifications
| Measuring Range | 30 to 130 dB |
| Accuracy | ±1.5 dB |
| Resolution | 0.1 dB |
| Display | 4-digit LCD |
| Backlit Display | Yes |
| Time Weighting | Fast/Slow (125mS and 1s) |
| Frequency Range | 31.5 Hz to 8 kHz |
| Frequency Weighting | A |
| Microphone | 0.5" (12.7mm) electret condenser |
| Data Hold | Yes |
| Max | Yes |
| Min | Yes |
| Sampling Rate | 1 time/second |
| Under Range/Over Range Indicator | Yes |
| Auto Shut-off | Yes (after 5 minutes, off) |
| Low Battery Indicator | Yes |
| Power Supply | 3 "AAA" Batteries |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 5.9 x 2 x 1.1" (150 x 52 x 27mm) |
| Weight | 4.1oz (116g) |
What's included with the REED R1920
- Sound Level Meter
- Windshield Ball
- 3 x "AAA" Batteries
REED Compact Series: R1920
REED Compact Series instruments fit comfortably in the palm of your hand for easy one-handed operation. All Compact Series models feature a backlit LCD display, and an auto-shut off feature to preserve battery life. The R1920 displays fast and slow time weighting.
How To: Calibrate your Sound Level Meter
Calibration is vital in ensuring that your sound level meter is in proper working condition when measuring noise. For the purpose of this video, we'll be using the R8080 Sound Level Meter and the R8090 Sound Level Calibrator. These steps will work for most sound level meters.
Ideal Applications for the REED R1920
- Construction Sites
- Ensuring Safe Working Conditions
- Public Venues/Concerts
- Code Enforcement
- Traffic
- Appliance Noise Testing
