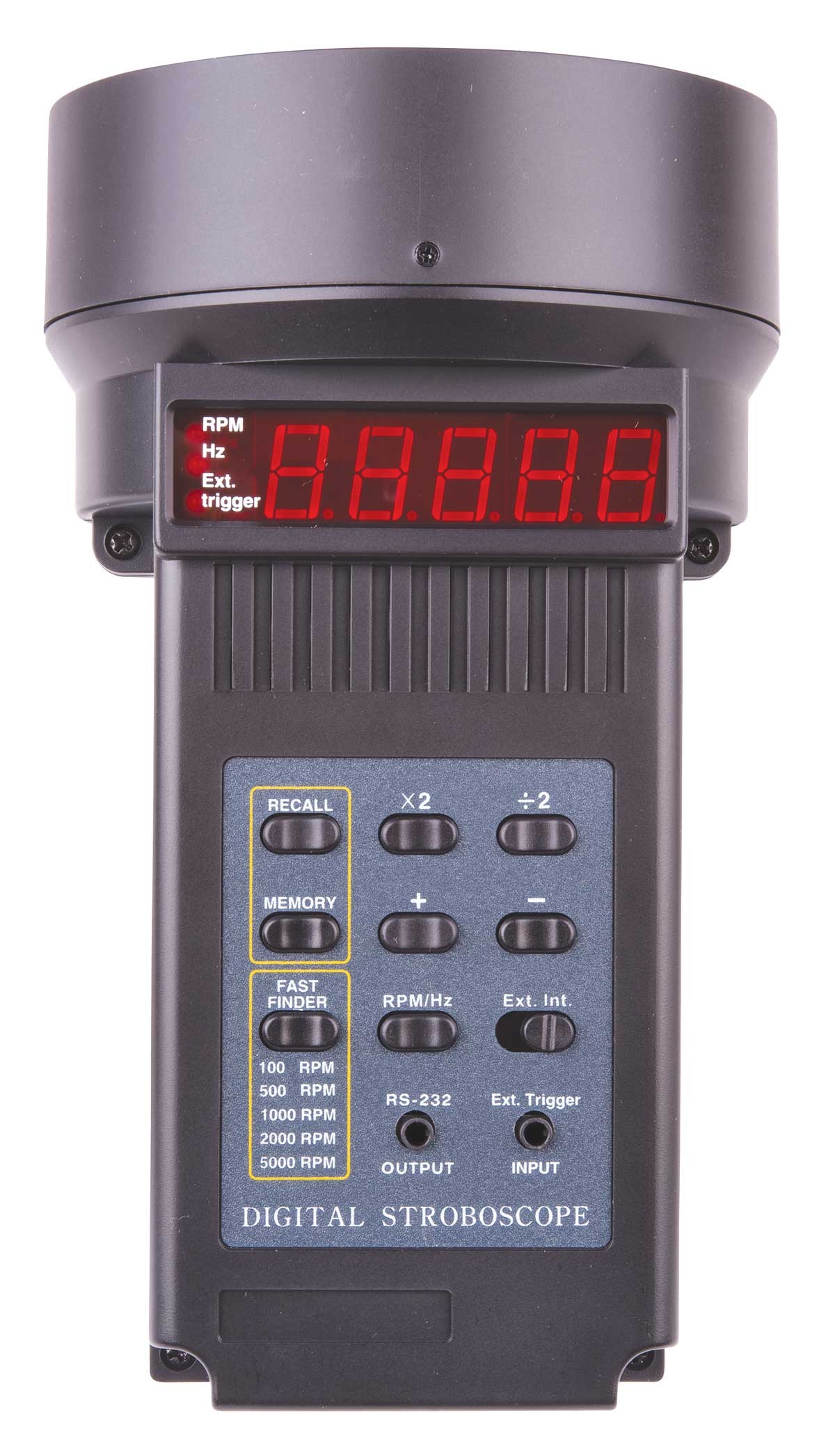

REED K4030 Pistol Grip Digital Stroboscope

Model: K4030

REED K4030 Pistol Grip Digital Stroboscope

Downloads:
datasheet
Ask an Expert Find This Product Near You

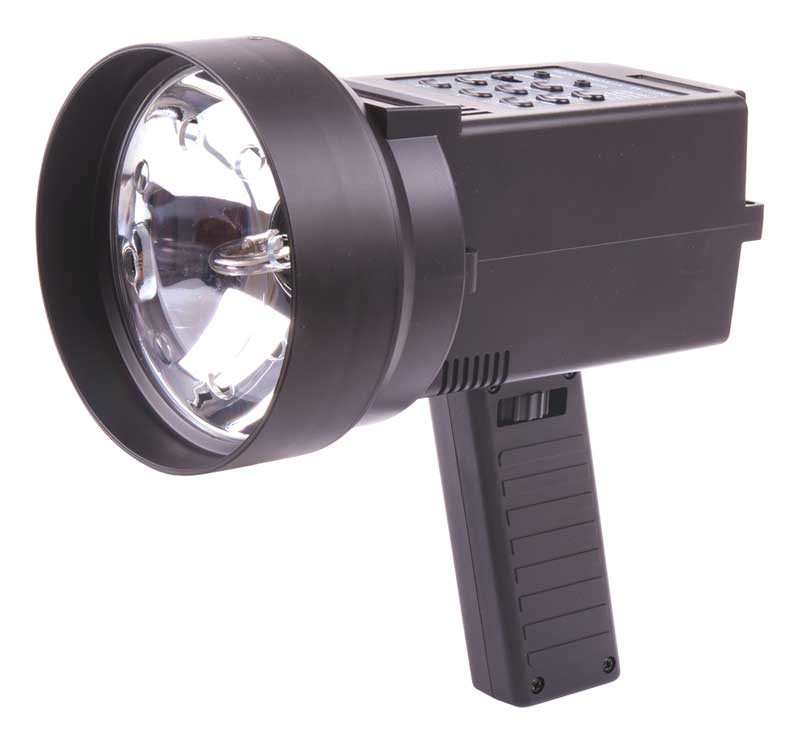

Pistol grip design with tripod mount option for stationary use.

REED K4030 Offers

This digital stroboscope freezes the motion and measures the speed of a rotating object, without contact. The K4030 features flash rate speeds from 10 to 10,500 RPM and a push button keypad that quickly doubles or divides the flash rate speed.

Features

  • Simply aim the instrument at the rotational object and synchronize the strobe's flash rate (FPM) with object speed (RPM)
  • Push buttons quickly double and divide flashing rate
  • 5-digit LED display
  • 5 to 30 minute duty cycle (RPM dependent)
  • Pistol grip handle
  • Tripod mount for stationary use
  • External trigger input
  • RS232 serial interface

REED K4030 Specifications

Flash Range 10 to 10,500 RPM
Resolution 5 to 999.9 RPM: 0.1 RPM
1,000 to 9,999 RPM: 1 RPM
≥ 10,000 RPM: 10 RPM
Basic Accuracy <999 RPM: ±(0.15% rdg. +0.2 RPM)
1,000 to 3,300 RPM: ±(0.5% rdg. +1 RPM)
3,301 to 10,500 RPM: ±1%
Flash Tube Specifications
Type Xenon lamp
Flash Duration Approx. 60 to 1000 µs
Flash Color Xenon white 6,500°K
Flash Energy 4 Watt-seconds (joules)
Beam Angle 80 degrees
General Specifications
Response Time <1 sec
Display Size/Type 5 Digit LED Display
Internal Memory Yes (10 datapoints)
Tripod Mount Yes
PC Connectivity USB Cable (optional)
Software SW-U801-WIN Software (optional)
Software Compatibility Windows XP / Vista / 7
Power Supply 110VAC, 50/60 Hz
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 10-80%
Dimensions 8.3 x 4.8 x 4.8" (201 x 120 x 120 mm)
Weight 2.2lbs (1kg)

What's included with the REED K4030

  • Digital Stroboscope
  • Light Bulb
  • Pistol Grip Handle
  • Power Cord

Ideal Applications for the REED K4030

Measure speed of moving gears, fans, centrifuges, pumps, motors and other rotational equipment.
