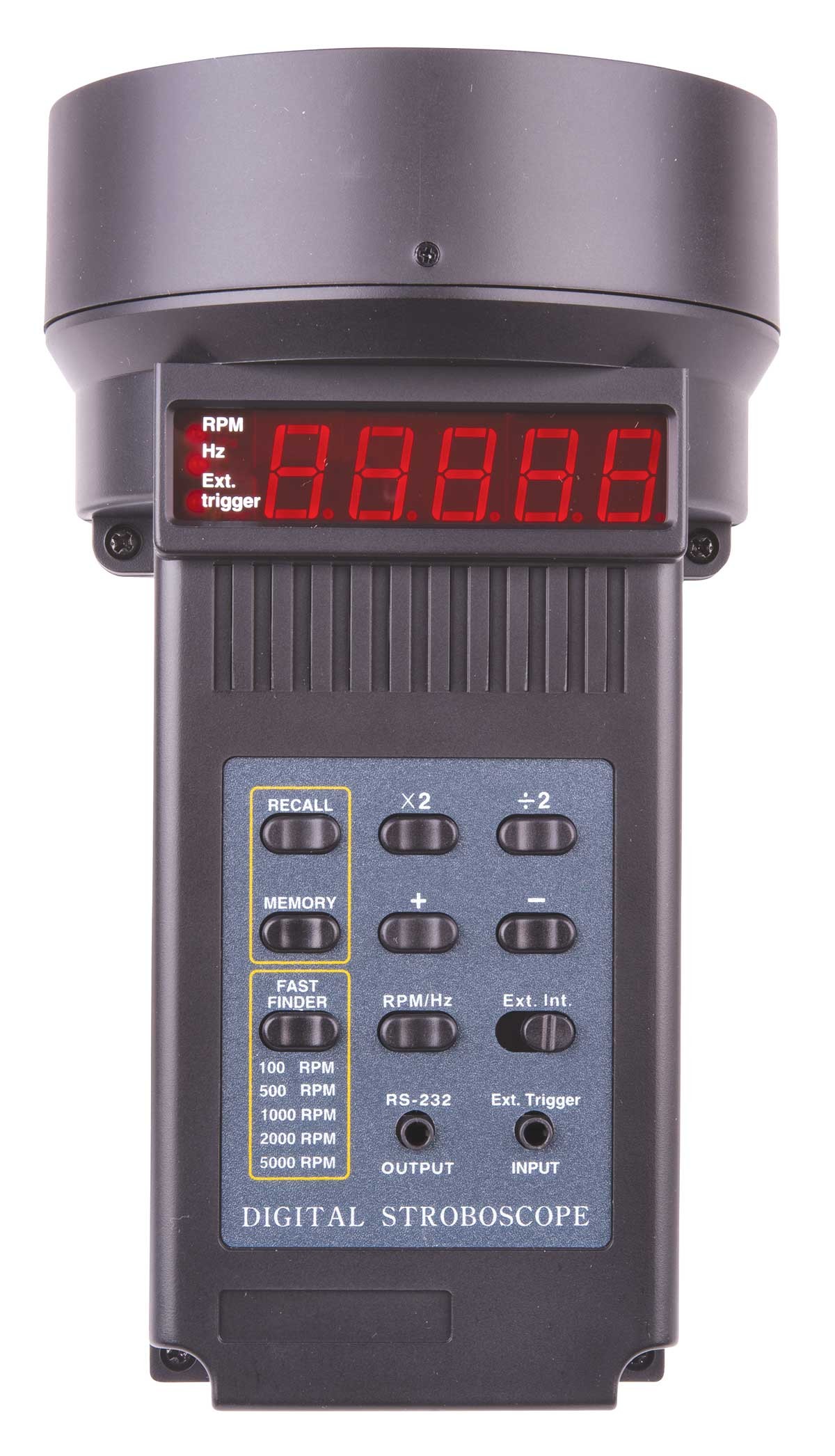

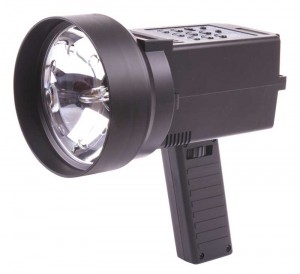

REED K4030 Pistol Grip Digital Stroboscope
REED K4030 Offers
This digital stroboscope freezes the motion and measures the speed of a rotating object, without contact. The K4030 features flash rate speeds from 10 to 10,500 RPM and a push button keypad that quickly doubles or divides the flash rate speed.
- Simply aim the instrument at the rotational object and synchronize the strobe's flash rate (FPM) with object speed (RPM)
- Push buttons quickly double and divide flashing rate
- 5-digit LED display
- 5 to 30 minute duty cycle (RPM dependent)
- Pistol grip handle
- Tripod mount for stationary use
- External trigger input
- RS232 serial interface
REED K4030 Specifications
|Flash Range||10 to 10,500 RPM|
|Resolution||5 to 999.9 RPM: 0.1 RPM
1,000 to 9,999 RPM: 1 RPM
≥ 10,000 RPM: 10 RPM
|Basic Accuracy||<999 RPM: ±(0.15% rdg. +0.2 RPM)
1,000 to 3,300 RPM: ±(0.5% rdg. +1 RPM)
3,301 to 10,500 RPM: ±1%
|Flash Tube Specifications|
|Flash Duration||Approx. 60 to 1000 µs|
|Flash Color||Xenon white 6,500°K|
|Flash Energy||4 Watt-seconds (joules)|
|Beam Angle||80 degrees|
|Response Time||<1 sec|
|Display Size/Type||5 Digit LED Display|
|Internal Memory||Yes (10 datapoints)|
|PC Connectivity||USB Cable (optional)|
|Software||SW-U801-WIN Software (optional)|
|Software Compatibility||Windows XP / Vista / 7|
|Power Supply||110VAC, 50/60 Hz|
|Operating Temperature||32 to 122°F (0 to 50°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Dimensions||8.3 x 4.8 x 4.8" (201 x 120 x 120 mm)|
What's included with the REED K4030
- Digital Stroboscope
- Light Bulb
- Pistol Grip Handle
- Power Cord
Ideal Applications for the REED K4030
Measure speed of moving gears, fans, centrifuges, pumps, motors and other rotational equipment.
