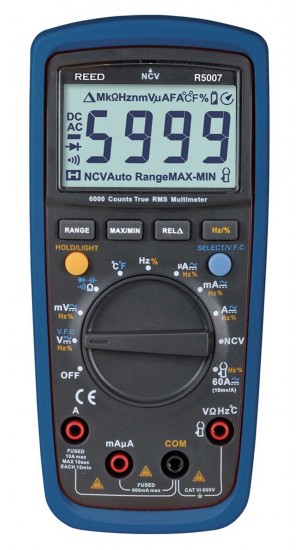

REED R5007 True RMS Digital Multimeter with NCV
Model: R5007 | UPC: 800837001245
REED R5007 True RMS Digital Multimeter with NCV
Model: R5007 | UPC: 800837001245
True RMS multimeter with built-in non-contact voltage (NCV) detector and 6,000 count backlit LCD display.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R5007 Offers
This True RMS multimeter measures AC/DC voltage and current, resistance, capacitance, frequency and features a low pass VFC function to remove noise caused by variable frequency motors and drives. The R5007 also features a built-in non-contact voltage detector and Type K thermocouple probe for contact measurement.
Features
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature

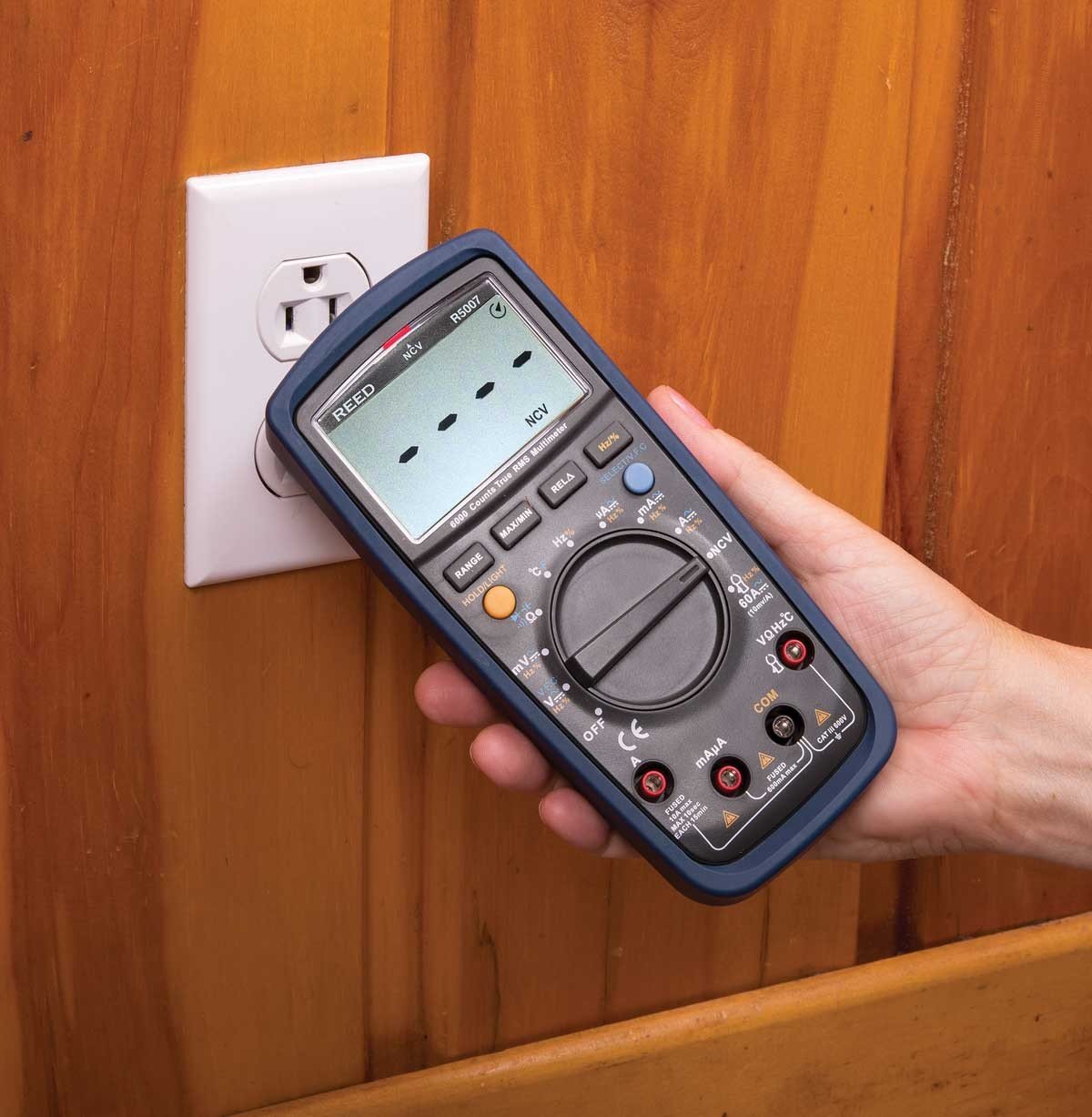

- Built-in non-contact voltage detector and double molded plastic housing
- Diode check and continuity functions
- Relative and data hold functions
- Backlit LCD and low battery indicator
- Cat. III 600V safety rating
REED R5007 Specifications
| AC/DC Voltage | |
| Range | AC: 60, 600mV, 6, 60, 600V DC: 60, 600mV, 6, 60, 600V |
| Accuracy | AC: 60, 600mV ±(1.0% rdg. + 3 dgt.) 6,60,600V ±(0.8% rdg. + 3 dgt.) DC: 60, 600mV ±(0.5% rdg. + 2 dgt.) 6,60,600V ±(0.7% rdg. + 3 dgt.) |
| Resolution | AC: 0.1, 1, 10mV, 0.1, 1V DC: 0.1, 1, 10mV, 0.1, 1V |
| AC/DC Current | |
| Range | 600, 6000µA, 60, 600mA, 6, 10A |
| Accuracy | AC: 600,6000µA/60mA, 600mA ±(1.0% rdg. + 3 dgt.) 6, 10A ±(1.2% rdg. + 3 dgt.) DC: 600,6000µA/60.00mA, 600.0mA ±(0.7% rdg. + 2 dgt.) 6.000, 10.00A ±(1.0% rdg. + 3 dgt.) |
| Resolution | 0.1, 1, 10µA, 0.1, 1, 10mA |
| Resistance | |
| Range | 600Ω, 6, 60, 600kΩ, 6, 60MΩ |
| Accuracy | 600Ω: ±(1.0% rdg. + 2 dgt.) 6,60,600kΩ: ±(0.8% rdg. + 2 dgt.) 6MΩ: ±(1.2% rdg. + 3 dgt.) 60MΩ: ±(1.5% rdg. + 5 dgt.) |
| Resolution | 0.1, 1, 10, 100Ω, 1, 10kΩ |
| Capacitance | |
| Range | 9.999nF, 99.99nF to 999.9µF, 9.999 to 99.99mF |
| Accuracy | 9.999nF: Under REL (±4%+10 dgt.) 99.99nF to 999.9uF: ±(4.0% rdg. + 5 dgt.) 9.999 to 99.99mF: ±(10% rdg. (<2mF) |
| Resolution | 1pF, 10pf to 0.1µF, 1µF to10µF |
| Frequency | |
| Range | 9.999Hz to 9.999MHz |
| Accuracy | ±(0.1% rdg. + 4 dgt.) |
| Resolution | 0.001Hz to 0.001Mz |
| Temperature | |
| Range | -40 to 1832°F (-40 to 1000°C) |
| Accuracy | ±(2.5% rdg. + 5°F) ±(2.0% rdg. +3°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging/Manual |
| True RMS | Yes |
| Display | 6,000 count LCD Display |
| Display Hold | Yes |
| Max/Min | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Backlit Display | Yes |
| Continuity Check | Audible signal if resistance ≤10Ω |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Non-Contact Voltage Detector | Yes |
| Kick Stand | Yes |
| Auto Power Off | Yes (after 15 minutes) |
| Power Supply | 2x AA Batteries |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 6.9 x 3.2 x 1.9" (175 x 80 x 49mm) |
| Weight | 13oz (370g) |
What's included with the REED R5007
- True RMS Digital Multimeter
- Test Leads
- Thermocouple Wire Probe (Type K) with attached adapter
- Batteries
How To: Test for Continuity with a Multimeter
If you're not sure of the continuity of your circuit, you may need to perform a test with a multimeter. For the purpose of this video, we'll be using the R5008 Multimeter. These steps will work for most multimeters.
Ideal Applications for the REED R5007
- Testing batteries
- Testing household wiring
- Testing electric motors
- Testing power supplies
