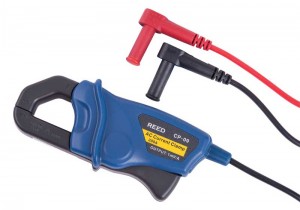

REED CP-09 AC Current Adapter, 200A
Model: CP-09 | UPC: 800837000378
REED CP-09 AC Current Adapter, 200A
Model: CP-09 | UPC: 800837000378
Converts a multimeter into AC clamp meter.
REED CP-09 Offers
This AC current adapter can be attached to a multimeter and measures up to 200A. The CP-09 features integrated banana plugs and a 3' cable.
Features
- Compact size
- 2% basic accuracy
- Integrated banana plugs
- CE certified
- CAT. II 600V safety rating
REED CP-09 Specifications
| AC/DC Current | |
| Range | 0 to 200A |
| Accuracy | AC: ±(2.0% rdg + 0.5A) |
| AC Current Output | 1mV/A |
| General Specifications | |
| Jaw Opening | 0.62" (16mm) |
| Overvoltage Category | CAT. II 600V, CAT.III 300V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 4.4 x 2.0 x 1.3" (111 x 50 x 33mm) |
| Weight | 4.6oz (129g) |
What's included with the REED CP-09
- AC Current Adapter
datasheet for the REED CP-09 AC Current Adapter, 200A
manual for the REED CP-09 AC Current Adapter, 200A
