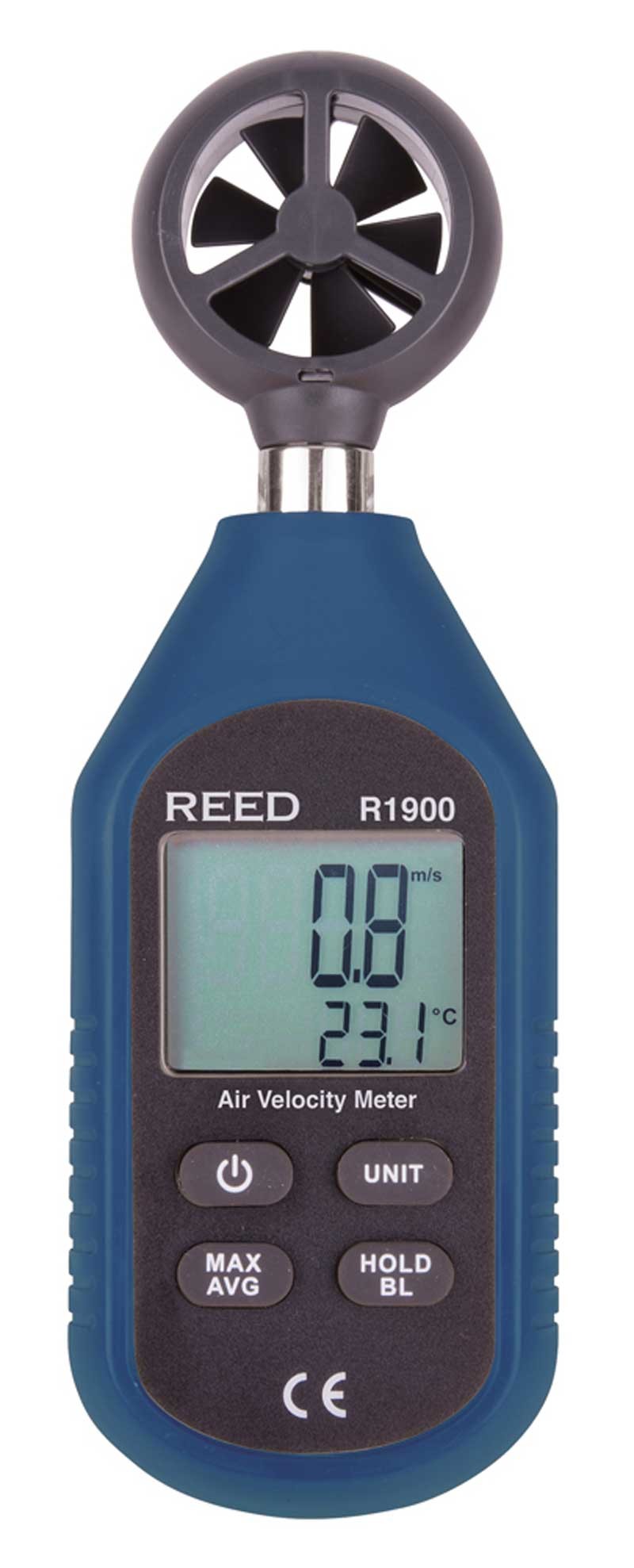

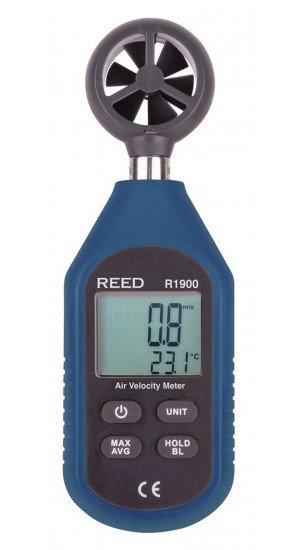

REED R1900 Compact Air Velocity Meter
Model: R1900 | UPC: 800837002396
REED R1900 Compact Air Velocity Meter
Model: R1900 | UPC: 800837002396
Dual LCD screen simultaneously displays air velocity and temperature.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R1900 Offers
This compact air velocity meter (anemometer) measures in fpm, m/s, kph, mph and knots. The R1900 keeps track of maximum and average readings and features a data hold function and low friction rotating vane for improved accuracy.
Features
- Measures fpm, m/s, kph, mph, knots and temperature
- Designed for one-handed operation
- Backlit dual LCD display
- Beaufort scale
- Max, average and data hold functions
- Low battery indicator and auto shut off
REED R1900 Specifications
| Air Velocity (Anemometer) | |
| Type | Vane |
| Measuring Ranges | fpm: 78 to 5905 m/s: 0 to 30 km/h: 1.4 to 108 mph: 0.8 to 67 knots: 0.7 to 58 |
| Accuracy | m/s: ±(5% rdg + 0.5) mph: ±(5% rdg + 10dgt) knots: ±(5% rdg + 10dgt) km/h: ±(5% rdg + 15dgt) fpm: ±(5% rdg + 180dgt) |
| Resolution | fpm: 1 m/s, km/h, mph, knots: 0.1 |
| Temperature | |
| Measuring Ranges | 14 to 122°F (-10 to 50°C) |
| Accuracy | ±4°F (2°C) |
| Resolution | 0.1°F/°C |
| General Specifications | |
| Vane Diameter | 1.2" (30mm) |
| Display | 4-digit dual LCD |
| Backlit Display | Yes |
| Beaufort Scale | Yes (Digital Bargraph Indicator) |
| Data Hold | Yes |
| Max | Yes |
| Average | Yes |
| Sampling Rate | 2 times/second |
| Overange Indicator | Yes |
| Auto Shut-Off | Yes (after 5 mins, off) |
| Low Battery Indicator | Yes |
| Power Supply | 3 "AAA" Batteries |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 6.3 x 2 x 1.1" (160 x 50 x 28mm) |
| Weight | 4.2oz (118g) |
What's included with the REED R1900
- Air Velocity Meter
- 3 x "AAA" Batteries
REED Compact Series: R1900
REED Compact Series instruments fit comfortably in the palm of your hand for easy one-handed operation. All Compact Series models feature a backlit LCD display, and an auto-shut off feature to preserve battery life. The R1900 also features a dual LCD screen that simultaneously displays air velocity and temperature.
Ideal Applications for the REED R1900
- HVAC/R and Refrigeration Servicing
- Detecting Filter Blockage
- Condensers and Chillers
- Environmental Monitoring
- Boating
