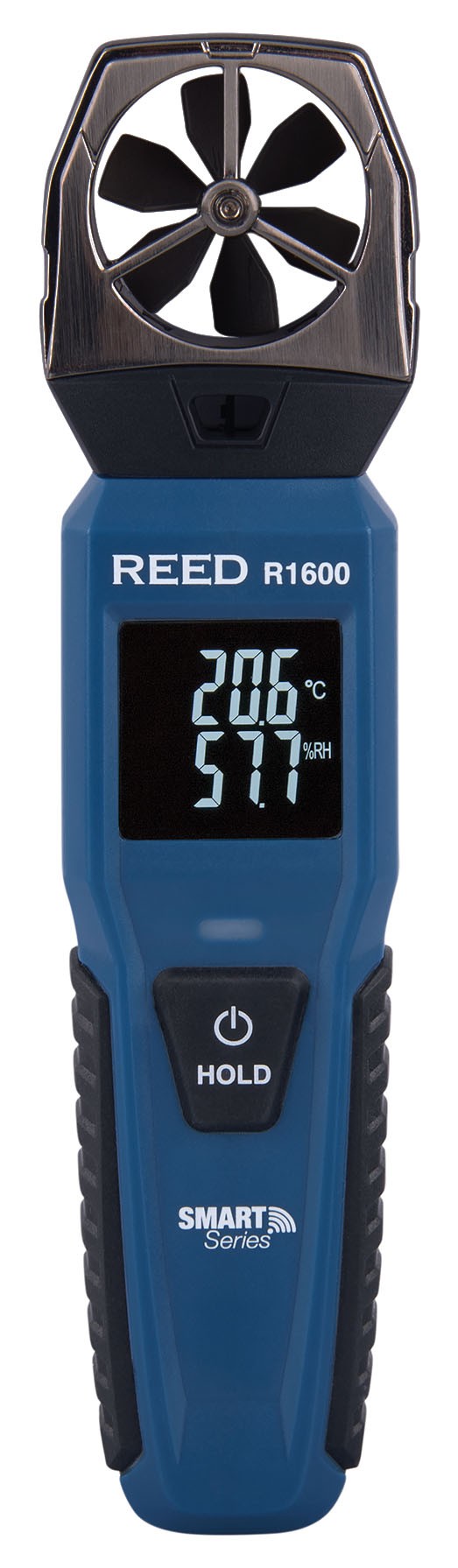

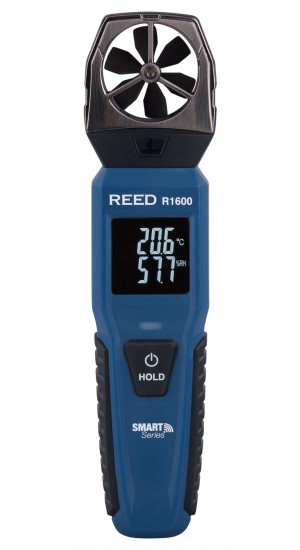

REED R1600 Vane Anemometer, Bluetooth Smart Series
Model: R1600 | UPC: 800837006059
REED R1600 Vane Anemometer, Bluetooth Smart Series
Model: R1600 | UPC: 800837006059
Real-time data logging Anemometer with Bluetooth 5.0 connectivity wirelessly connects to the REED Smart Series App.
REED R1600 Offers
The R1600 is a compact wireless vane anemometer that measures air velocity, air temperature, and relative humidity. The instrument can be used either stand-alone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1600 can measure air volume flow and can be set up to data log measurements over a given period.
Features
- Measures air velocity (m/s, ft/min, km/h, and mph), air temperature and humidity
- Easy to operate, designed for one-hand operation
- Integrated display provides flexibility for use without mobile device
- Magnetic backing allows instrument to be mounted to metallic surfaces
- Data Hold function
- Low battery indicator and auto shut-off
- Tripod mount for long-term monitoring
When used with the REED Smart Series App:
- Calculates air volume
- Real-time data logger
- User-selectable sampling rate from 1 to 120 seconds
- Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
- Connect, measure and data log up to 6 instruments, simultaneously
- Easy setup with automatic app integration for compatible REED Smart Series instruments
- Export data via Excel or PDF and create custom reports that can be emailed from a mobile device
REED R1600 Specifications
| Air Velocity (Anemometer) | |
| Measuring Range | fpm: 118 to 4921 m/s: 0.6 to 25 km/h: 2.1 to 90 mph: 1.3 to 55.9 |
| Accuracy | fpm: ±(40fpm + 3.5%) m/s: ±(0.2m/s + 3.5%) km/h: ±(0.8km/h + 3.5%) mph: ±(0.5mph + 3.5%) |
| Resolution | fpm: 1 m/s: 0.1 km/h: 0.1 mph: 0.1 |
| Temperature | |
| Measuring Range | -4 to 140°F (-20 to 60°C) |
| Accuracy | -4 to 32°F (-20 to 0°C): ±1.6°F (0.8°C) 32 to 140°F (0 to 60°C): ±1°F (0.5°C) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Range | 0 to 100% RH |
| Accuracy | 20 to 80% RH: ±3.5% rdg. 0 to 20% & 80 to 100% RH: ±5% rdg. |
| Resolution | 0.1% RH |
| General Specifications | |
| Display | Multi-Line Enhanced Black Twisted Nematic (EBTN) LCD |
| Display Size | 1.3" (34mm) |
| Backlit Display | Yes |
| Data Hold | Yes |
| Data Logging Capabilities | Yes (with Smart Series App) |
| Real-Time Clock and Date Stamp | Yes (with Smart Series App) |
| Customizable Sampling Rate | Yes |
| Overrange Indicator | Yes |
| Auto Shut-Off | Yes (adjustable) |
| Tripod Mountable | Yes |
| Magnetic Backing | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AAA Batteries |
| Battery Life | Approx. 50 hours (sampling time dependent) |
| Connectivity | Bluetooth® 5.0 |
| Bluetooth® Range | Up to 246' (75m) |
| Max # of Connected Devices | 6 |
| Software | REED Smart Series App (iOS and Android) |
| App Supported Languages | English, French |
| Product Certifications | CE, UKCA, FCC, IC ID |
| Maximum Operating Altitude | 6561' (2000m) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Storage Humidity Range | 10 to 90% |
| Dimensions | 6.9 x 1.5 x 1" (175 x 38 x 25mm) |
| Weight | 3.8oz (108g) |
What's included with the REED R1600
- Vane Anemometer
- 4 x AAA Batteries
- Protective Cap
Ideal Applications for the REED R1600
- HVAC/R servicing
- Detecting filter blockage
- Deriving volume flow of air registers
- Monitoring the air flow of ventilation systems
- Flow hood monitoring
REED Smart Series App
REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device.
App Features:
- Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
- Connect, measure, and data log up to 6 instruments, simultaneously
- Easy setup with automatic app integration (Bluetooth pairing not required)
- Measurement data is displayed as instrument readings, tables, or graphs
- Save data in PDF or Excel Format
- Create custom reports that can be saved on a mobile device or sent by email
REED Smart Series App Download
Depending on the device type, click the icons below to download the appropriate App.
