REED ST-9809 AC Leakage Current Tester

Model: ST-9809

REED ST-9809 AC Leakage Current Tester-


Downloads: datasheet manual
Ask an Expert Find This Product Near You


Digital analog bargraph and high resolution of 10µA.

REED ST-9809 Offers

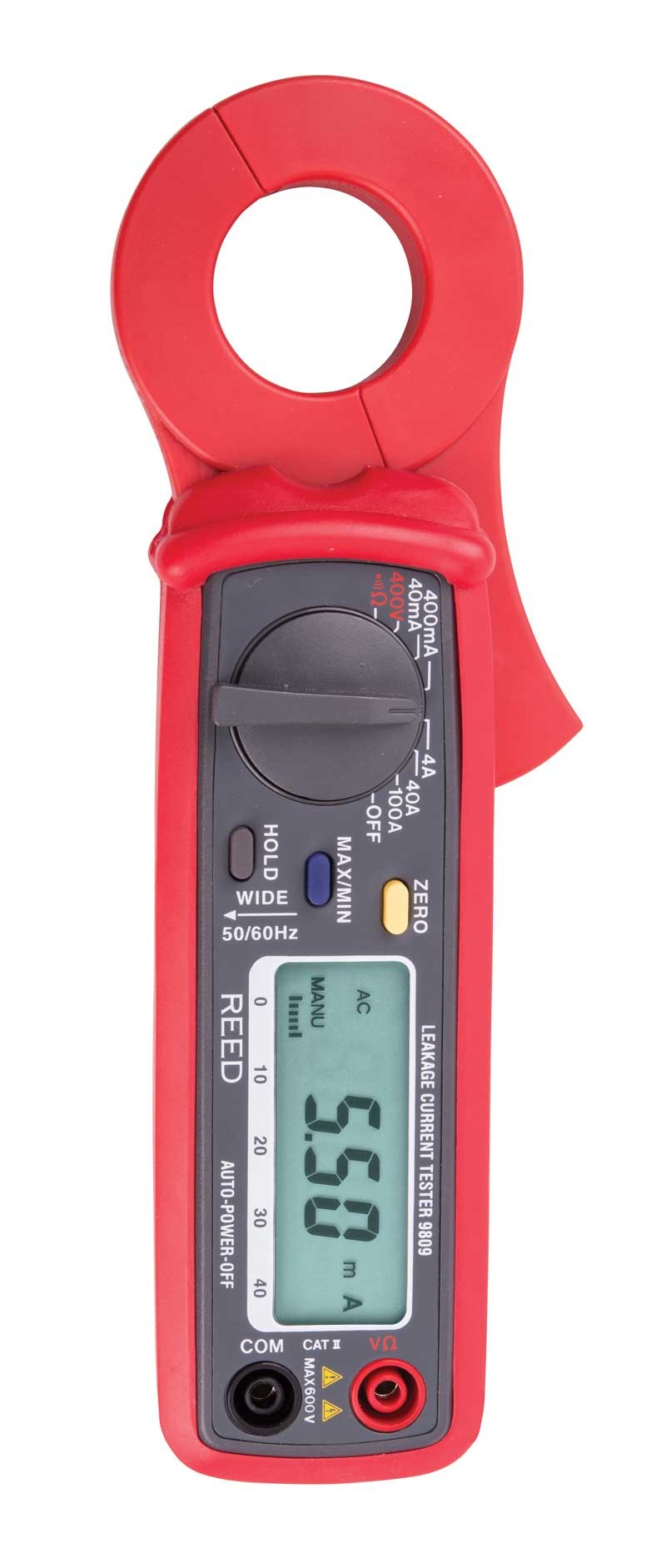

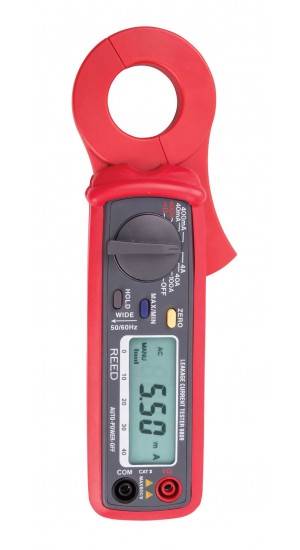

This AC leakage current tester features a large 4000 count LCD display and 40 segment digital analog bargraph. The ST-9809 includes leads for voltage testing and a protective boot for added durability in the field.

Features

  • Designed to measure current leakage
  • 4000 count LCD display
  • Max/Min and Data hold measurements
  • Continuity and relative functions
  • Digital analog bargraph
  • 1.2" (30mm) jaw size opening
  • Low battery indicator and Auto Shut Off
  • Cat. II 600V safety rating

REED ST-9809 Specifications

Current
Range 40mA, 400mA, 4A, 40A, 100A
Accuracy (50-60Hz) 40mA: ±(1.0% +0.5mA)
400mA: ±(3.0% +5.0mA)
4A: ±(4.0% +0.1A)
40A: ±(4.0% +1.0A)
100A: ±(5.0% +1.0A)
Resolution 10µA, 100µA, 1mA, 10mA, 100mA
Voltage
Range 400V
Accuracy (50-60Hz) ±(1.5% +2 dgts.)
Resolution 0.1V
Resistance
Range 40 to 400Ω
Accuracy ±(1.0% +2 dgts.)
Resolution 0.1Ω
General Specifications
Range Selection Manual
Sampling Time Display: 2x / sec.
Bargraph: 20x / sec.
Display 4,000 count LCD display
Display Hold Yes
Max/Min Yes
Zero Push Button Adjustment Yes
Relative Mode Yes
Analog Bargraph Yes (40 segment)
Continuity Check Audible signal if resistance <40Ω
Auto Shut Off Yes (after 30 minutes, off)
Power Supply 9V Battery
Low Battery Indicator Yes
Jaw Opening 1.2" (30mm)
Overvoltage Category CAT. II 600V
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 8.3 x 2.4 x 1.4" (210 x 62 x 36 mm)
Weight 7.1 oz (200g)

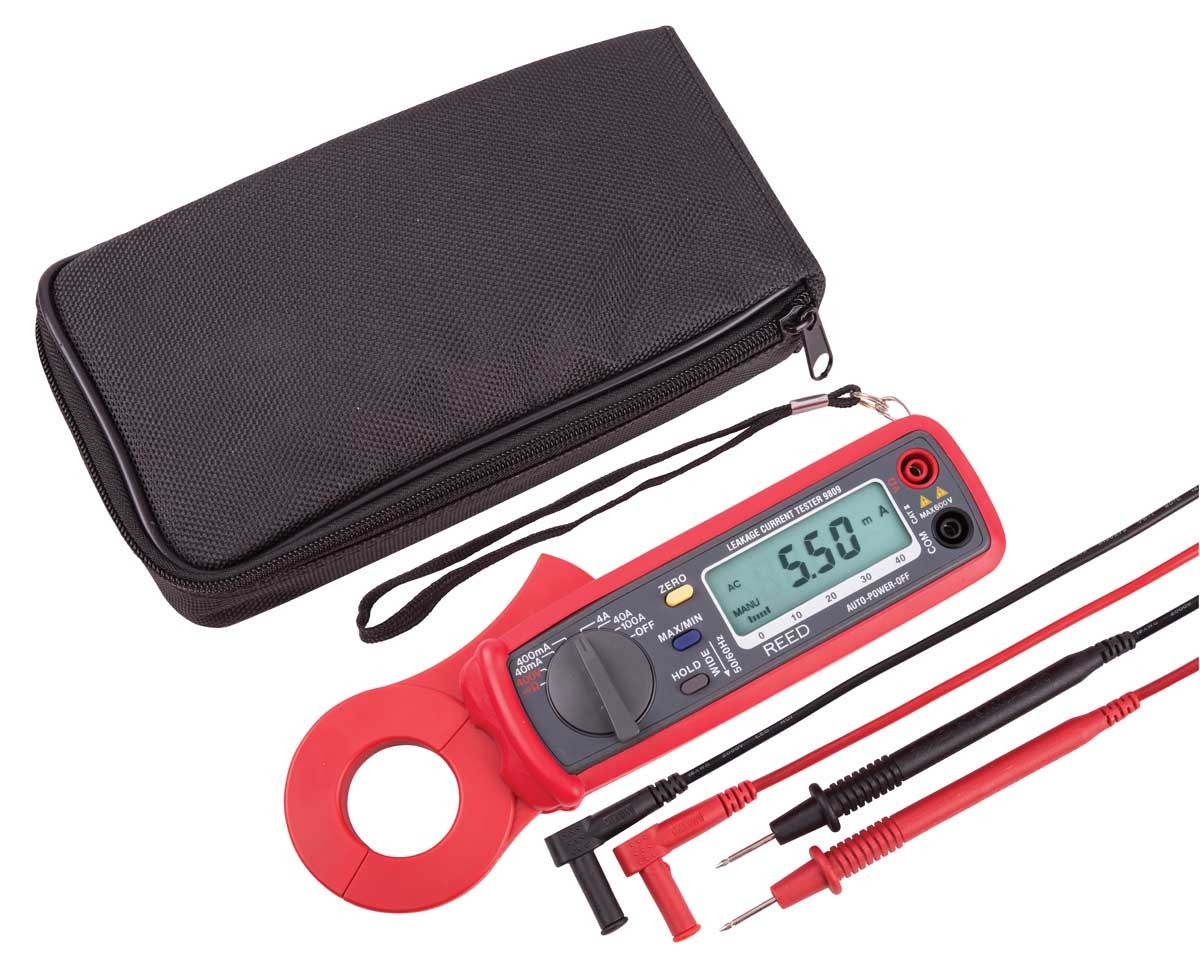

What's included with the REED ST-9809

  • AC Leakage Current Tester
  • Test Leads
  • Battery
  • Soft Carrying Case

Ideal Applications for the REED ST-9809

  • HVAC
  • Industrial Maintenance
  • Plant Maintenance

Click on a category to view a selection of compatible accessories with the REED ST-9809 AC Leakage Current Tester.

REED FC-300 Fused Test Lead Set

Model: FC-300

Set of two test leads with built-in fuses for added protection.
