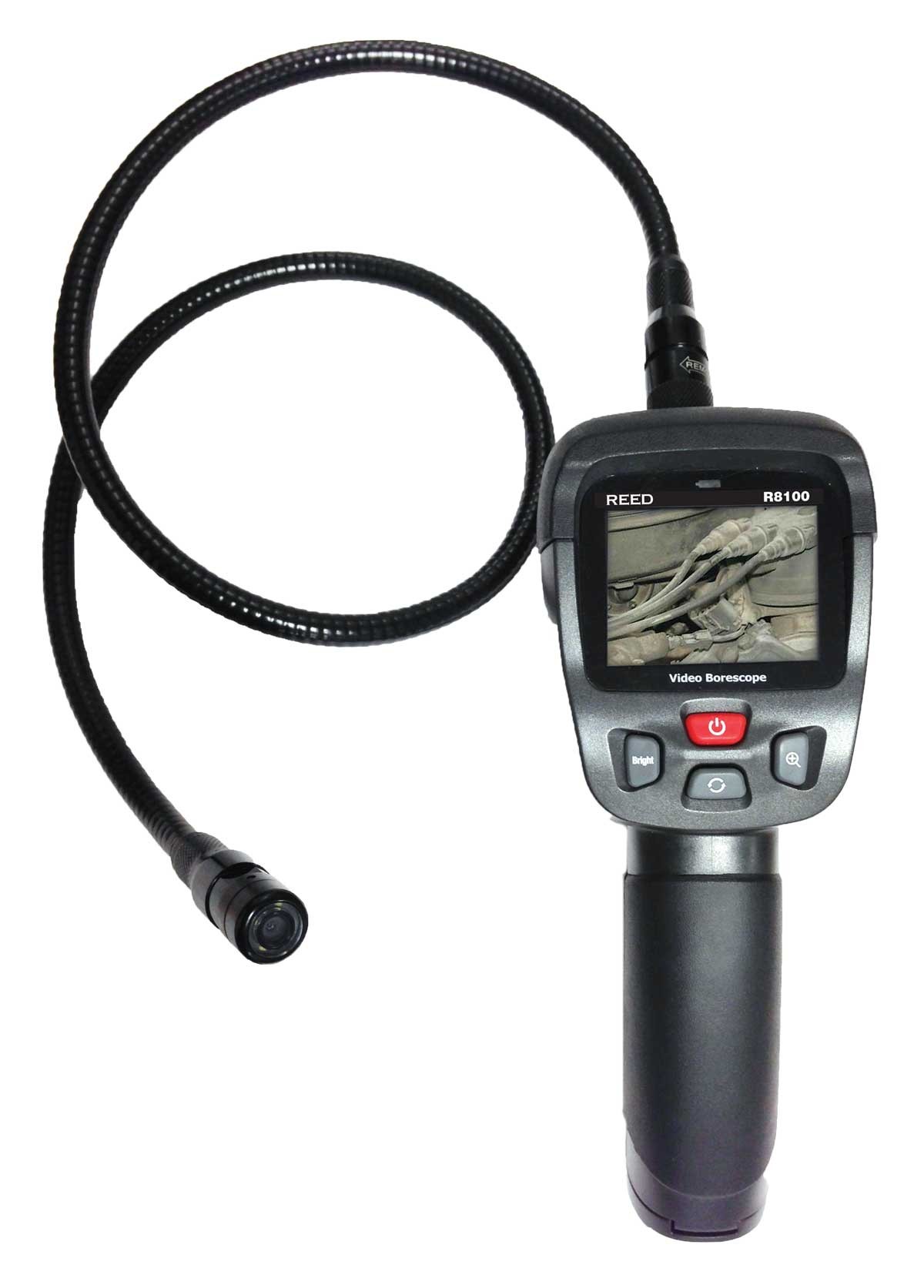

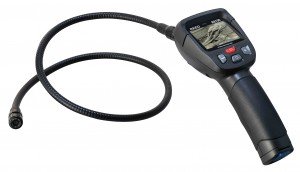

REED R8100 Video Borescope Inspection Camera

Model: R8100

REED R8100 Video Borescope Inspection Camera

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


17mm camera diameter and 2.4" color TFT LCD monitor provides real-time video of hard to see areas.

Sorry! This product has been discontinued.


The REED R8100 Video Borescope Inspection Camera has been discontinued, it has been replaced by the REED BS-150 Video Borescope Inspection Camera, Recordable

REED R8100 Offers

This high resolution video inspection camera features a 39" (1m) gooseneck cable with 17mm camera head and provides real-time imaging on a 2.4" color LCD display. The R8100 has the ability to expand up to 30 ft with optional cable extensions and includes a camera mountable magnet, hook and mirror to assist with specific applications. An optional 9mm camera head can be ordered separately.

Features

  • Comfortable pistol grip design
  • High resolution 2.4" color TFT LCD monitor
  • 17mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft (9.1m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • 2X zoom and 180° mirror rotation functions
  • Low battery indicator

REED R8100 Specifications

Camera
Camera Resolution 640 x 480
Camera Diameter 0.66" (17mm)
Viewing Distance 5.9 to 9.8" (15 to 25cm)
Depth of Field 10mm to infinity
Viewing Angle 0 to 180°
General Specifications
Display 2.4" Color TFT LCD
Display Resolution 480 x 234
Frames per Second (FPS) 30
Standard Gooseneck/Cable Length 39" (1m)
Zoom 2X
Rotate Display Yes (180°)
LED Brightness Adjustment Yes (4 white LEDs)
Low Battery Indicator Yes
Power Supply 4 AA Batteries
Product Certifications CE, IP67 (Camera Head)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10 to 85%
Dimensions 9.5 x 3.9 x 6.3" (240 x 100 x 160 mm)
Weight 18.7oz (530g)

What's included with the REED R8100

  • Video Borescope Inspection Camera
  • 17mm Camera Head
  • Magnet, Hook and Mirror Attachments
  • Batteries
  • Hard Carrying Case

Ideal Applications for the REED R8100

  • Building and home inspection
  • Pest control
  • HVAC and refrigeration
  • Visual inspections of aircraft engines
  • Steam turbines
  • Automotive and truck engines
  • Manufacturing of machined or cast parts
  • Inspection of critical interior surfaces for burrs, surface finish or complete through-holes

Click on a category to view a selection of compatible accessories with the REED R8100 Video Borescope Inspection Camera.

REED BS-C6 Video Borescope 6ft Cable Extension for R8100 / BS-150

Model: BS-C6

Provides 6 ft extension for R8100 and BS-150 Video Borescope Cameras.

REED BS-15-9C3 Video Borescope 9mm Camera Head for R8100 / BS-150

Model: BS-15-9C3

9mm camera head for R8100 and BS-150 Video Borescope Cameras.
