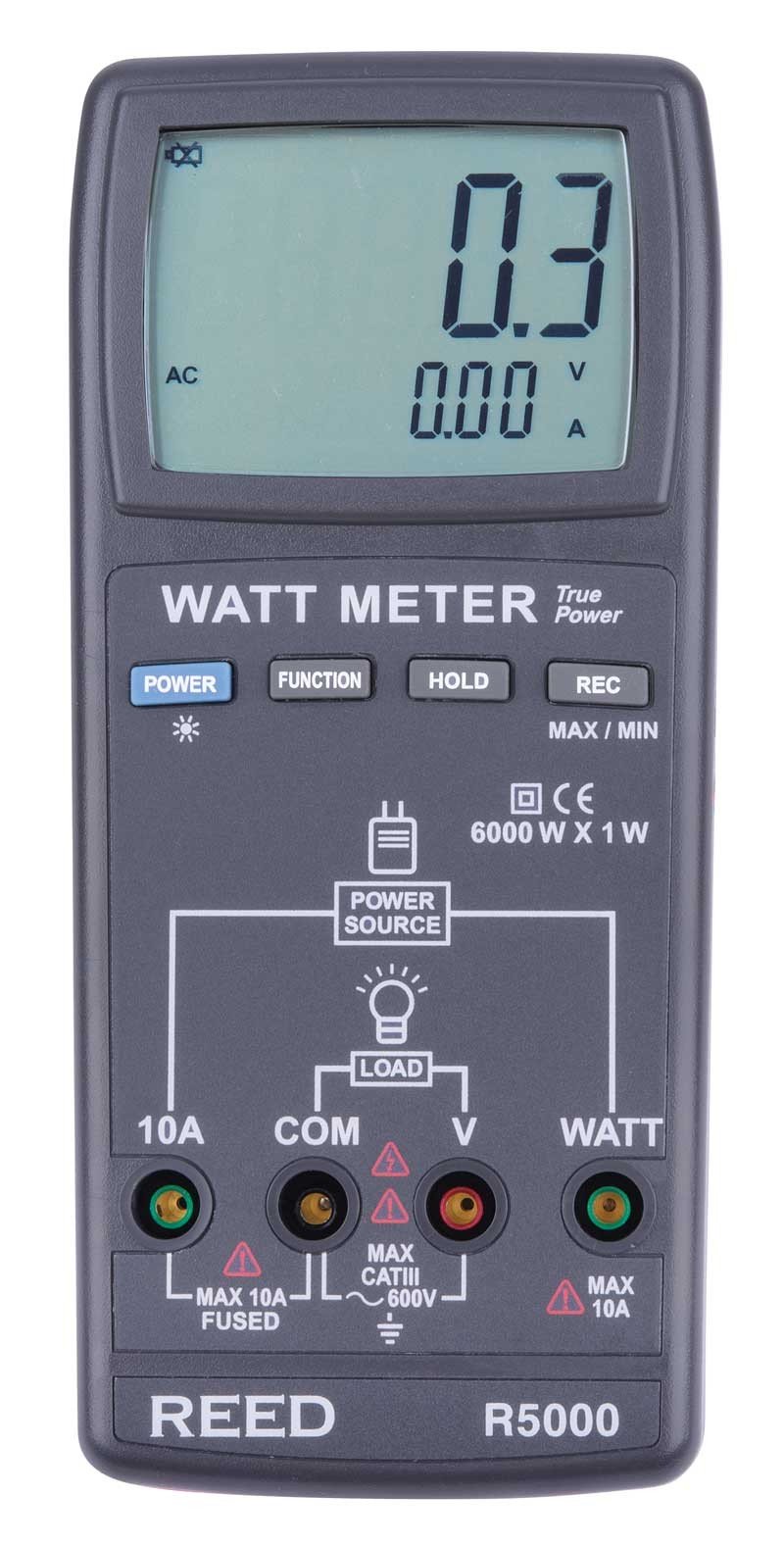

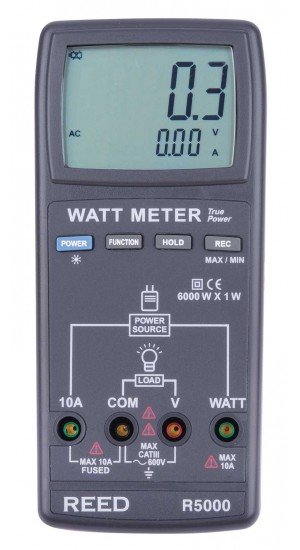

REED R5000 Autoranging Watt Meter, True RMS

Model: R5000

REED R5000 Autoranging Watt Meter, True RMS-

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Dual LCD display with backlight simultaneously displays watt and power factor measurements.

REED R5000 Offers

This true RMS watt meter is capable of measuring up to 6000 watts, 600 volts (AC), 10 amps (AC) and power factor. The R5000 features a large backlit LCD display and maximum, minimum and data hold functions.

Features

  • Measures Watt, AC Voltage/Current and Power Factor
  • Large backlit dual LCD display
  • Max/Min and Data Hold Functions
  • Cat. III 600V safety rating
  • Low battery indicator and auto shut off

REED R5000 Specifications

Watt
Range 0 to 6000W
Resolution 1W
Accuracy ±(1% + 5W)
AC Voltage
Range 0 to 600V
Resolution 0.1V
AC Current
Range 0 to 10A
Resolution 0.01A
Accuracy ±(0.3% + 0.03A)
Power Factor
Range 0 to 1.0
Resolution 0.01
Accuracy ±(1% + 2d)
General Specifications
Display Dual LCD display
Max/Min and Data Hold Functions Yes
Backlit Display Yes
Kickstand Yes
Auto Power Off Yes (after 10 minutes)
Power Supply 9V Battery or AC Adapter (Optional)
Low Battery Indicator Yes
Overvoltage Category CAT. III 600V
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.5 x 3.5 x 1.6" (190 x 88 x 40mm)
Weight 0.88lb (398g)

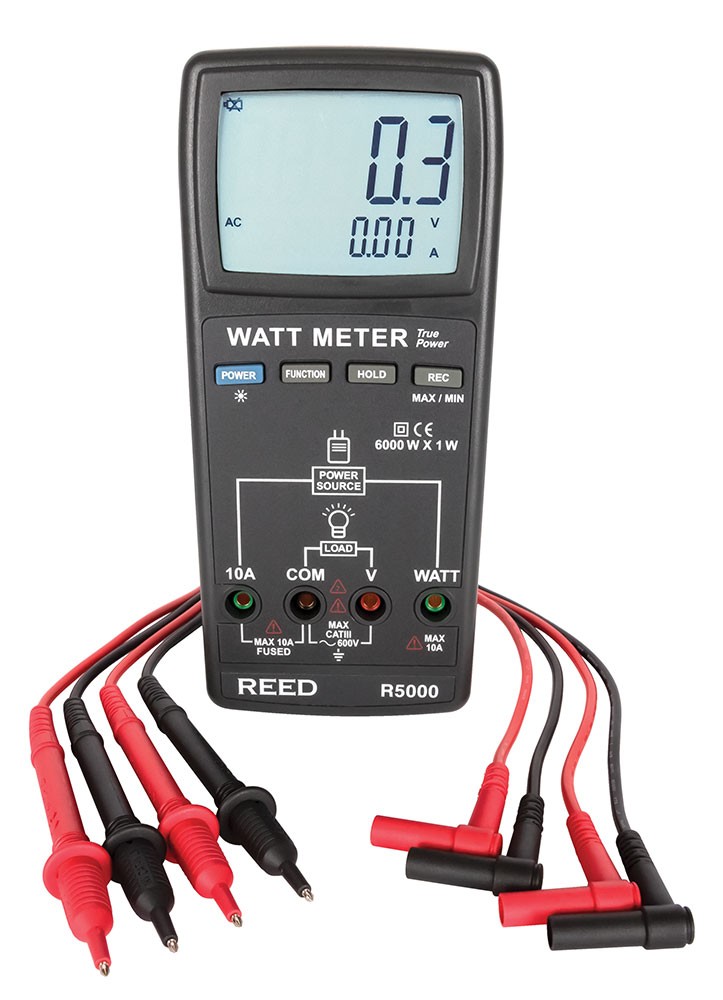

What's included with the REED R5000

  • Watt Meter
  • Test Leads
  • Battery
