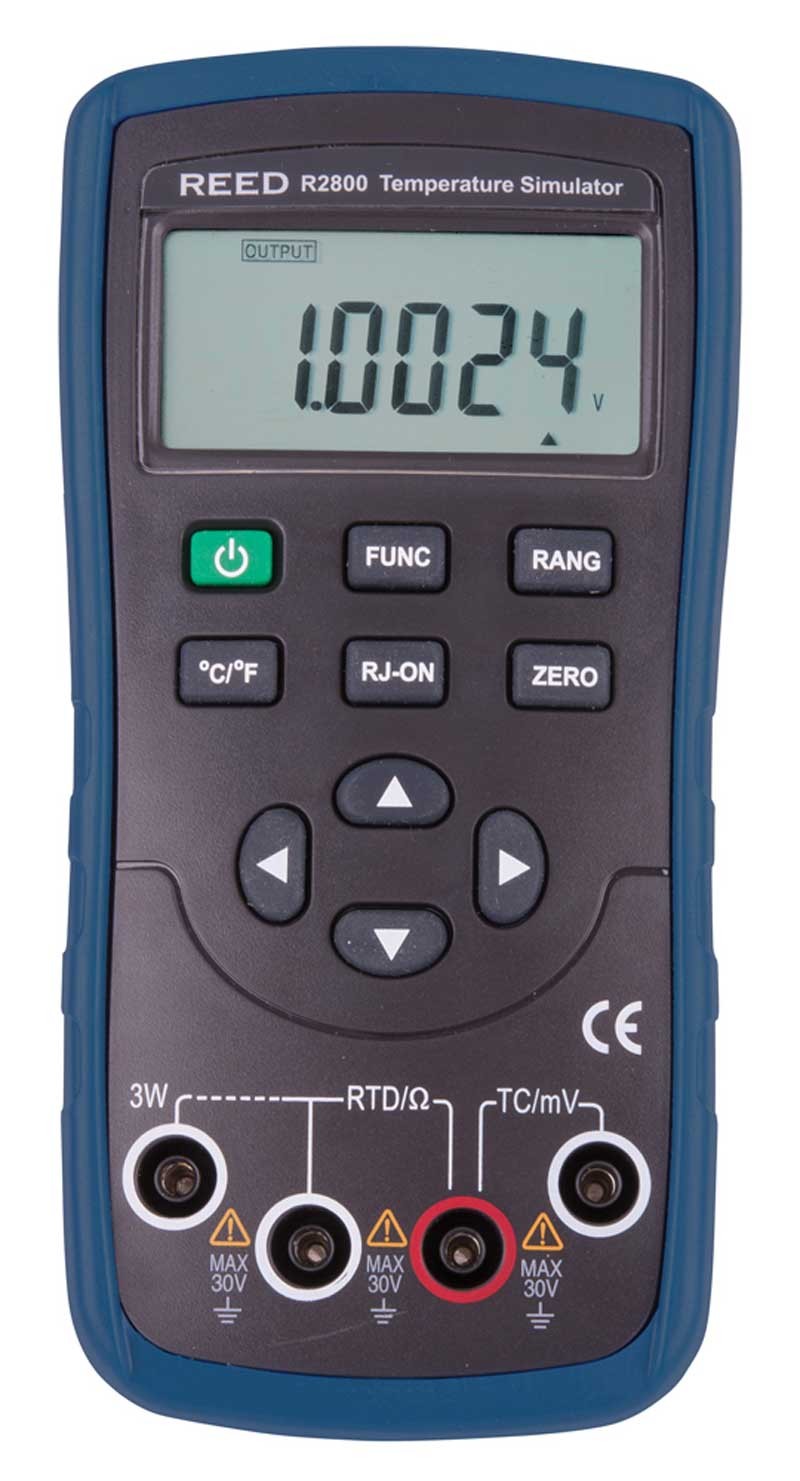

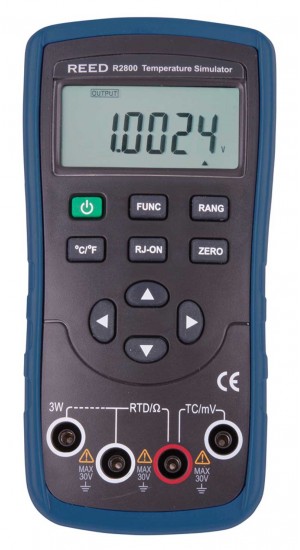

REED R2800 Temperature Simulator
Model: R2800 | UPC: 800837001139
REED R2800 Temperature Simulator
Model: R2800 | UPC: 800837001139
This Temperature Simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 5 RTDs. The R2800 features internal cold junction compensation, a basic accuracy of 0.05% and an easy-to-read LCD display.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R2800 Offers
This temperature simulator is capable of generating and converting an electrical signal to simulate temperatures for 8 different types of thermocouples and 5 RTDs. The R2800 features internal cold junction compensation, basic accuracy of 0.05% and an easy-to-read LCD display.
Features
- Source 8 thermocouple types, including R, S, B, E, K, J, T, N; and 5 RTD types, including Pt100 (385), Pt200 (385), Pt500 (385), Pt1000 (385), Cu50; plus volts and ohms
- Basic accuracy of 0.05%
- Internal cold junction compensation
- Easy-to-read 6-digit LCD display
- Zero adjustment button
- User selectable unit of measure (°F/°C)
- Low battery indicator and auto shut off
REED R2800 Specifications
| Output | Range | Output Range | Resolution | Accuracy |
| DCV | 100mV | -10 to 110mV | 0.01mV | 0.05% rdg. +30mV |
| 1000mV | -100 to 1100mV | 0.1mV | 0.05% rdg. +0.3mV | |
| OHM | 400Ω | 0.0 to 400.0Ω | 0.1Ω | 0.05% rdg. +0.2Ω |
| 400Ω | 0 to 4000Ω | 1Ω | 0.05% rdg. +2Ω | |
| TC | R | -40 to 1760°C | 1°C | ±0.05% rdg. +3°C (≤100°C); ±0.05% rdg. +2°C (>100°C) |
| S | -20 to 1760°C | 1°C | ||
| B | 400 to 1800°C | 1°C | ±0.05% rdg. +3°C (400 to 600°C); ±0.05% rdg. +2°C (>600°C) |
|
| E | -200 to 1000°C | 0.1°C | ±0.05% rdg. +2°C (≤-100°C); ±0.05% rdg. +1°C (>-100°C) |
|
| K | -200 to 1370°C | 0.1°C | ||
| J | -200 to 1200°C | 0.1°C | ||
| T | -200 à 400°C | 0.1°C | ||
| N | -200 to 1300°C | 0.1°C | ||
| RTD | Cu10 | -10 to 250°C | 0.1°C | ±0.05% rdg. +0.6°C |
| Cu50 | -50 to 150°C | 0.1°C | ||
| Pt10 385 | -200 to 850°C | 0.1°C | ±0.05% rdg. +0.6°C | |
| Pt100 385 | -200 to 850°C | 0.1°C | ||
| Pt200 385 | -200 to 630°C | 0.1°C | ±0.05% rdg. +0.6°C | |
| Pt500 385 | -200 to 630°C | 0.1°C | ||
| Pt1000 385 | -200 to 630°C | 0.1°C |
| Display | 6-Digit LCD | |||
| Zero Adjustment Button | Yes | |||
| Kick Stand | Yes | |||
| Power Supply | 2 "AA" Batteries | |||
| Cold Junction Compensation | Yes | |||
| Auto Shut Off | Yes (after 15 mins/off) | |||
| Low Battery Indicator | Yes | |||
| Replaceable Test Leads | Yes | |||
| Product Certifications | CE | |||
| Operating Temperature | 32 to 122°F (0 to 50°C) | |||
| Operating Humidity Range | 0 to 85% | |||
| Storage Temperature | 14 to 122°F (-10 to 50°C) | |||
| Dimensions | 7.1 x 3.5 x 1.9" (180 x 90 x 47mm) | |||
| Weight | 8.2oz (500g) | |||

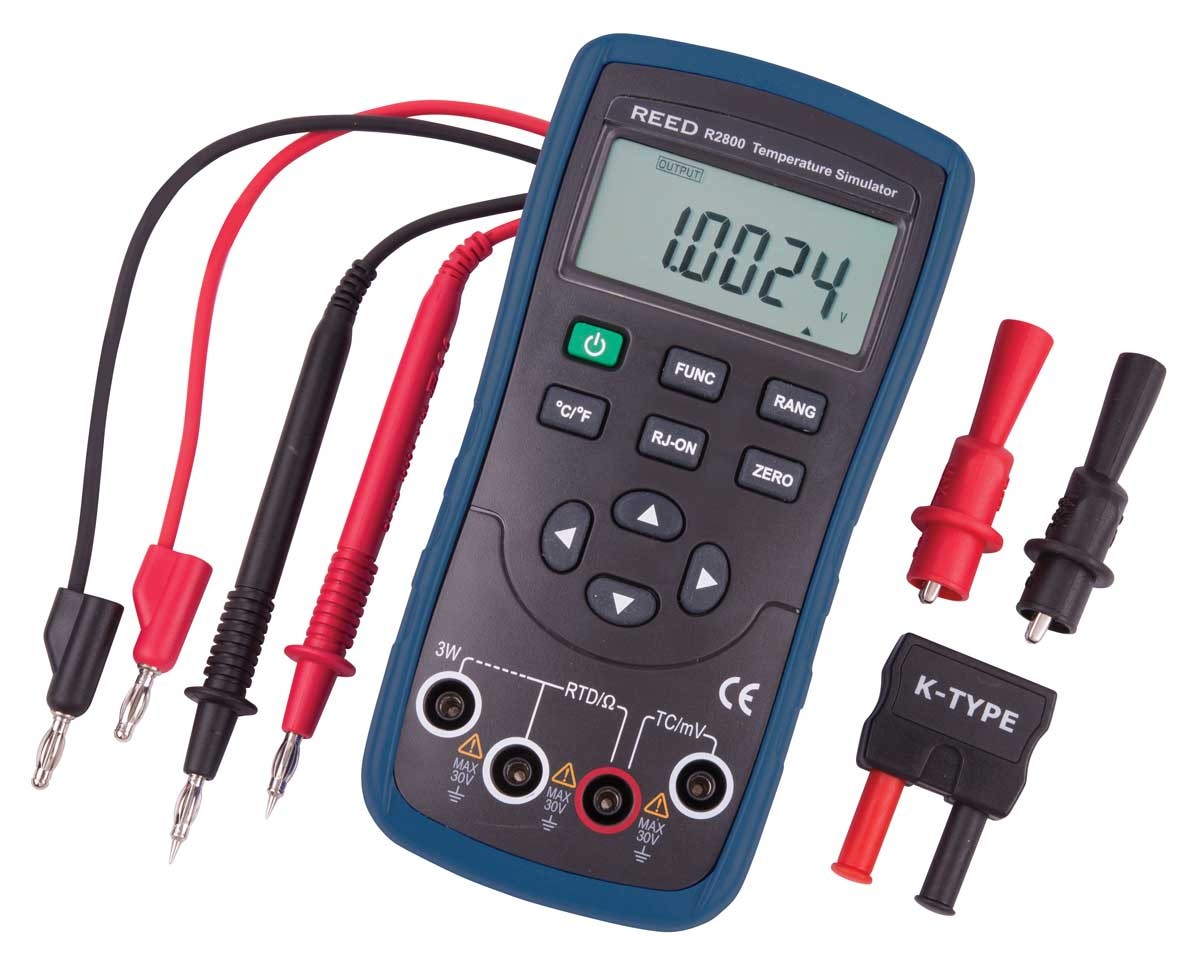

What's included with the REED R2800
- Temperature simulator
- Test leads
- Alligator clips
- Thermocouple adapter
- Protective holster
- 2 x "AA" Batteries
Ideal Applications for the REED R2800
This temperature simulator can be used to simulate temperature for the verification and calibration of temperature instruments including thermocouple and RTD thermometers.
