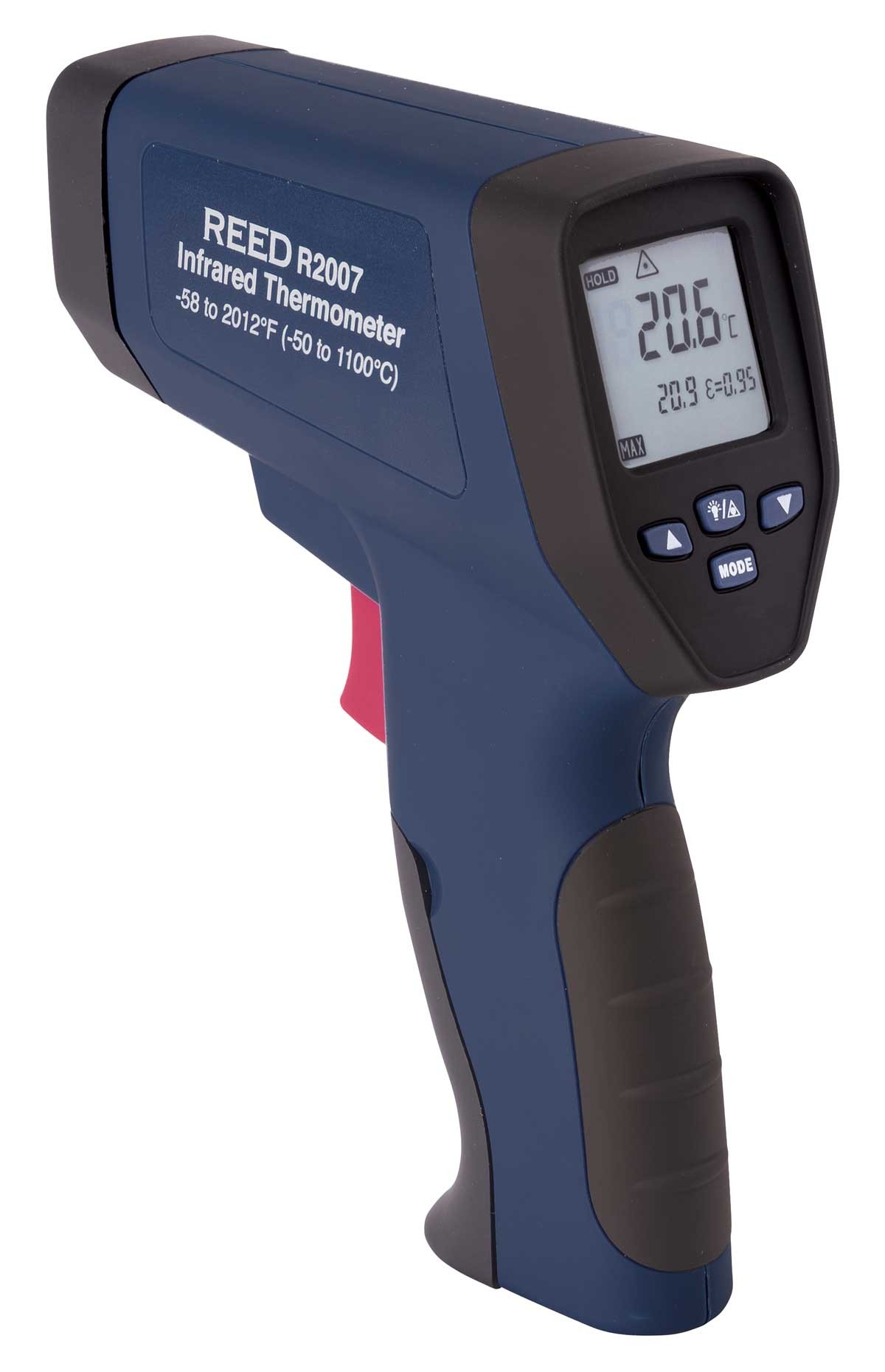

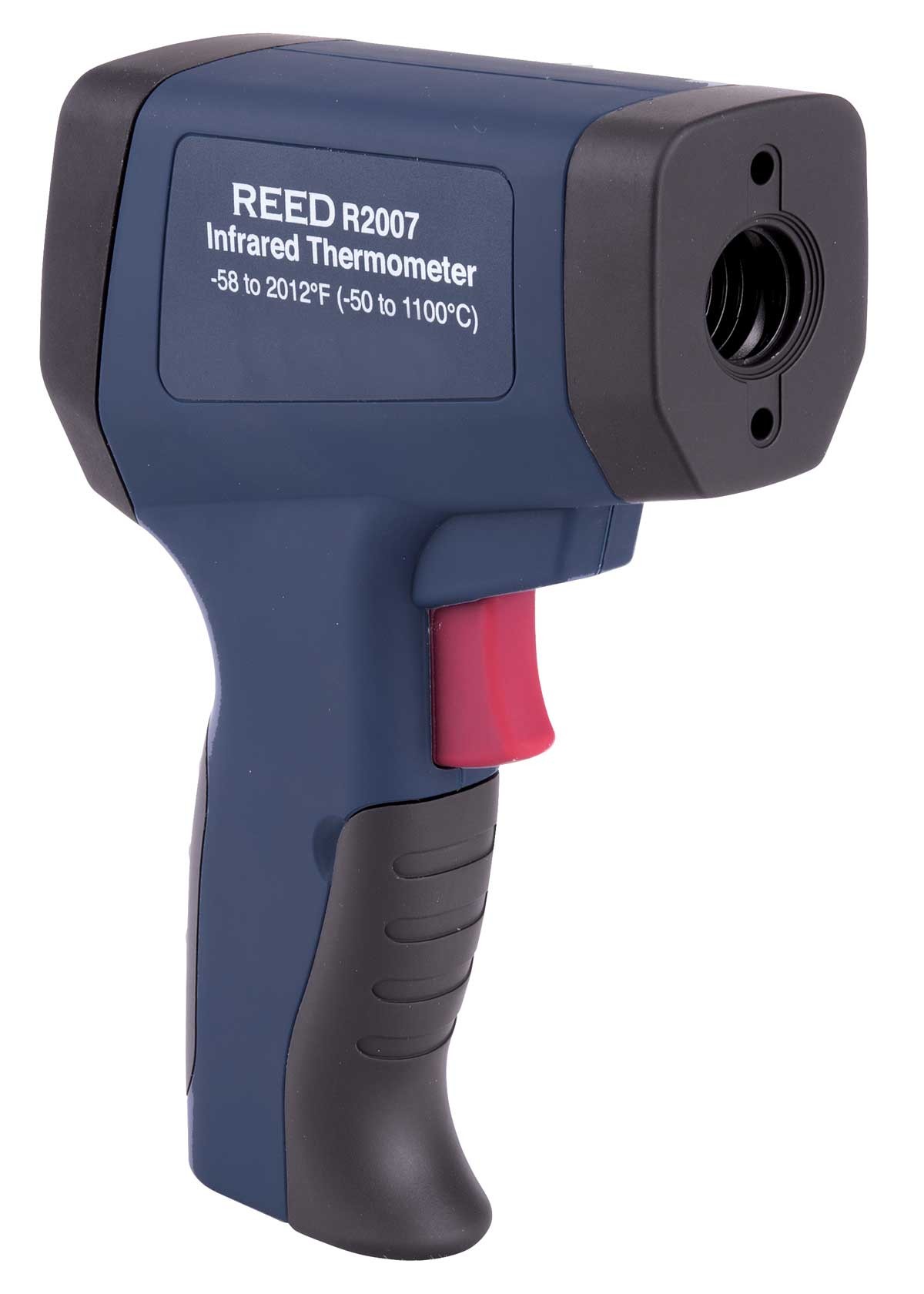

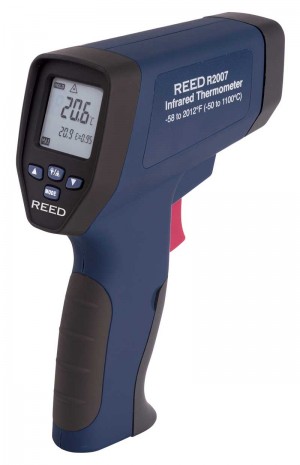

REED R2007 Dual Laser Infrared Thermometer, 50:1, 2012°F (1100°C)

Model: R2007

REED R2007 Dual Laser Infrared Thermometer-

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Dual lasers assist with target area identification and allow for precise temperature measurements.

REED R2007 Offers

This infrared thermometer features a 50:1 distance to spot ratio that allows users to accurately measure smaller areas from a greater distance. With the ability to identify temperatures up to 2012°F (1100°C), the R2007 contains a number of features including high/low alarms, dual lasers, max, min, average and differential readings as well as internal memory capable of saving the last 9 measurements.

Features

  • Dual lasers assist with target area identification
  • 50:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • High and low alarms
  • Max, min, avg and differential readings
  • Internal memory saves last 9 data points automatically
  • Backlit display
  • User selectable °F or °C
  • Low battery indication and auto shut off

REED R2007 Specifications

Temperature Range -58 to 2012°F (-50 to 1100°C)
Accuracy ±2% of reading or 4°F (2°C)
Resolution 0.1°F (0.1°C)
Optical Resolution (D:S) 50:1
Dual Laser Yes
Spectral Response 8 to 14µm
Emissivity 0.1 to 1.0 (Adjustable)
Response Time 500ms
Display Size/Type 1.6" LCD
Backlit Display Yes
Display Hold Yes
High/Low Alarms Yes (Audible beep)
Max/Min Yes
Average and Differential Yes
F/C Switchable Yes
Autoshut off Yes (after 15 secs)
Internal Memory Yes (last 9 datapoints)
Laser Class Class II
Low Battery Indicator Yes
Power Supply 9V battery
Product Certifications CE, RoHS
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 10-90%
Dimensions 6.9 x 4.6 x 1.9" (176 x 103 x 49mm)
Weight 7.0oz (197g)

What's included with the REED R2007

  • Dual Laser Infrared Thermometer
  • Carrying Case
  • Battery

Ideal Applications for the REED R2007

  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC energy audits to determine leaks, infiltration
