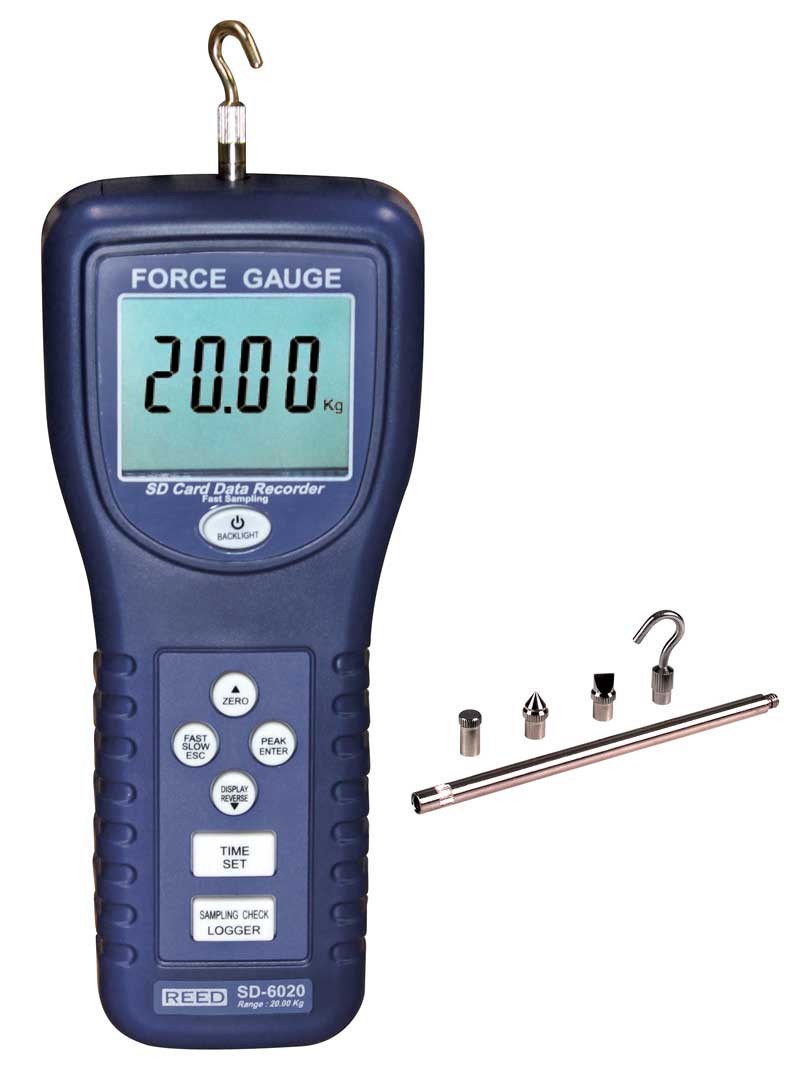

REED SD-6020 SD Series Force Gauge Datalogger, 44lbs (20kg)

Model: SD-6020

REED SD-6020 SD Series Force Gauge Datalogger, 44lbs (20kg)

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Datalogger with date/time stamp stores measurements on SD memory card without the need for software.

REED SD-6020 Offers

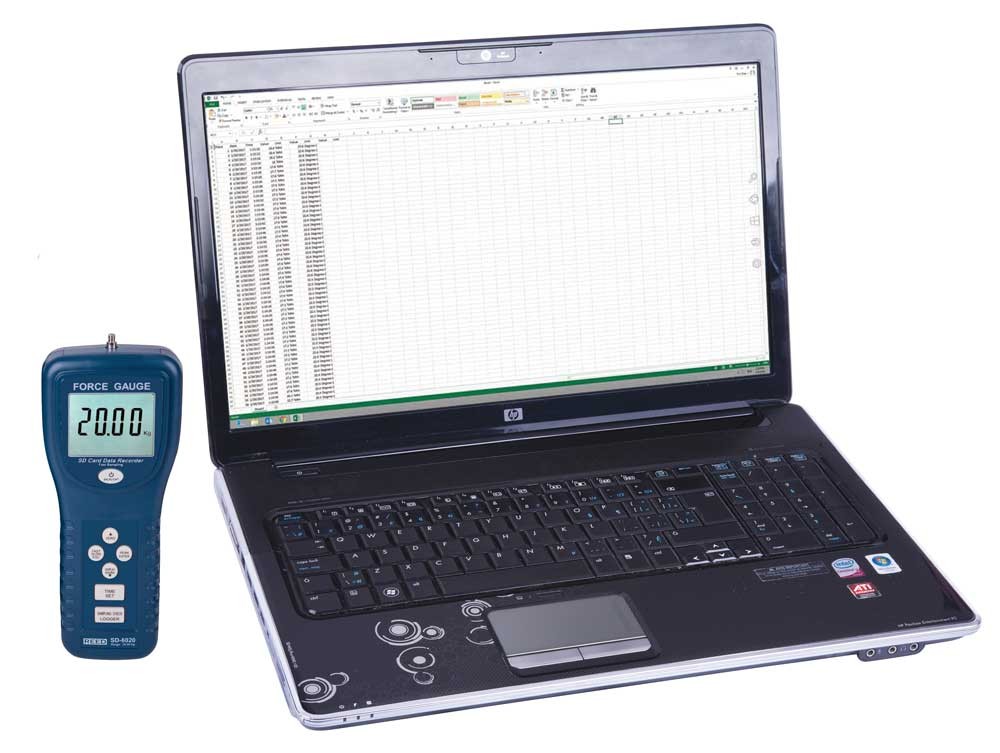

This gauge has the ability to measure push and pull forces up to 44lbs (20kg) and features a reversible display ensuring measurements are easily read, regardless of testing direction. The SD-6100 features a real time datalogger with memory card slot. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include an AC adapter for continuous long-term monitoring and PC software to track real-time measurements.

Features

  • Measures tension and compression
  • Records in Peak hold or Normal mode
  • Fast/Slow response selection
  • Full capacity tare (zero) capability
  • Force is measured in kg, lb or Newtons
  • Large, easy-to-read backlit display
  • Reversible display ensures legible readings regardless of direction
  • Real-time datalogger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Optional PC software features live tracking via USB connection
  • Low battery indicator and auto shut off

REED SD-6020 Specifications

Measuring Range 20.00 kg
44.10 lb
196.12 N
Accuracy ±(5% rdg + 2 dgt.)
Resolution 0.01kg / 0.01lb / 0.02N
Response Time Less than 1 sec.
Full Scale Deflection 0.4mm max.
Display 4-digit LCD
Backlit Display Yes
Peak Hold Measurements Yes
Zero Adjustment Yes
Overrange Indicator Yes (Audible alarm at 20kg)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Low Battery Indicator Yes
Power Supply 6 AA Batteries or AC Adapter (optional)
Output Yes
Battery Life Sampling Time Dependent
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 0 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10 to 85%
Dimensions 215 x 90 x 45mm (8.5 x 3.5 x 1.8")
Weight 1.43 lb (650g)
Click here for complete specifications on the REED SD-6020Click here for complete specifications on the REED SD-6020

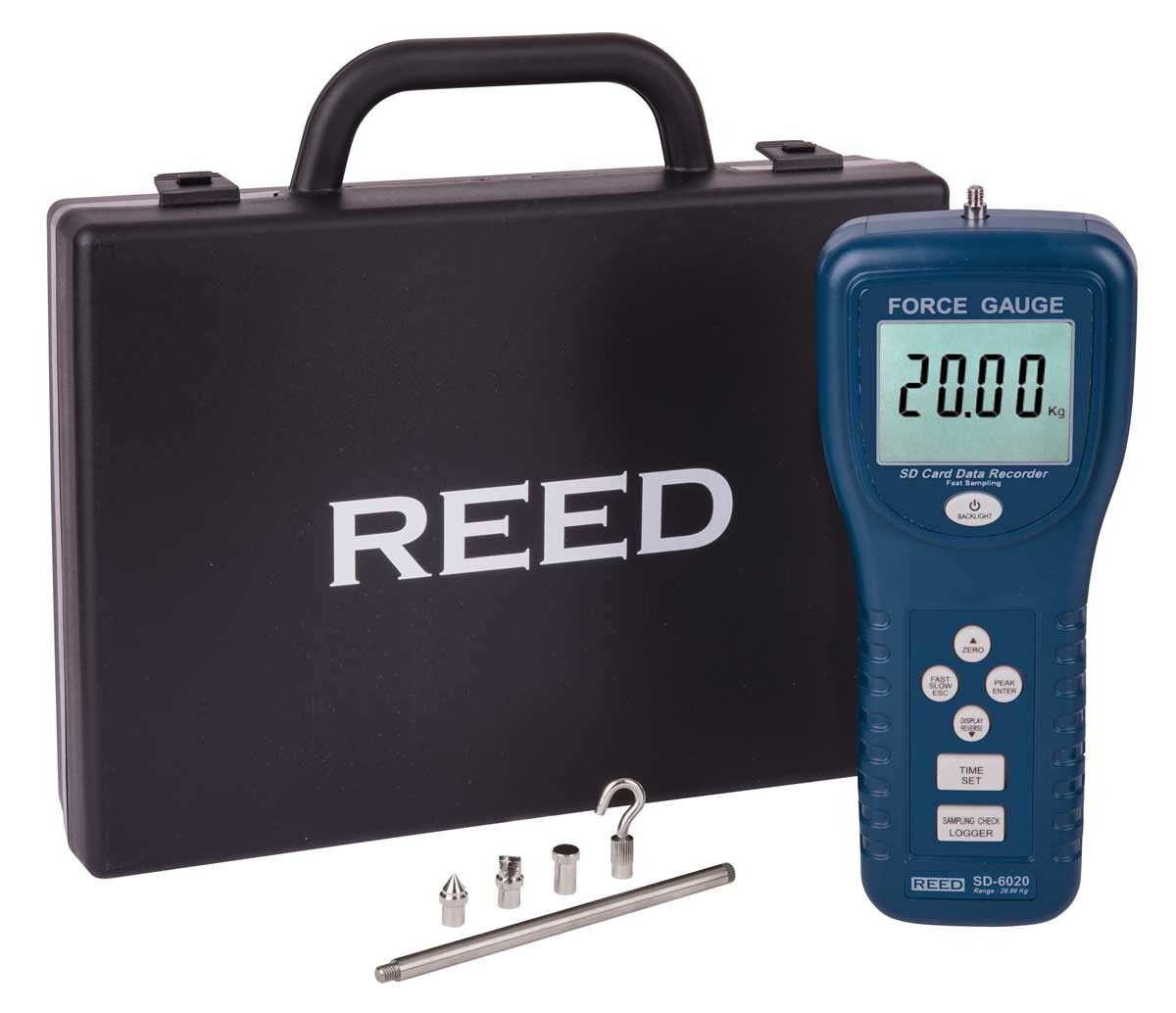

What's included with the REED SD-6020

  • 20kg Force Gauge Datalogger
  • Flat Head, Cone Head, Chisel Head and Hook Adapters
  • Extension Rod
  • Hard Carrying Case
  • Batteries

Ideal Applications for the REED SD-6020

  • Electronics
  • Automotive
  • Plastics
  • Lab Testing
