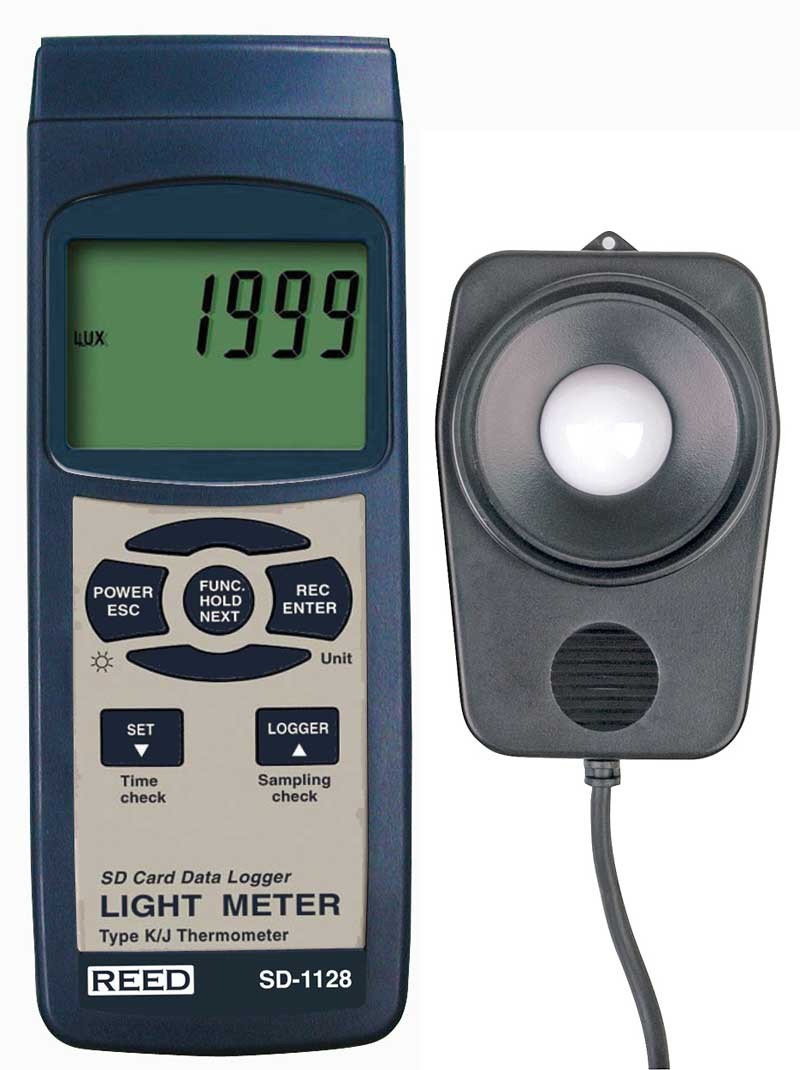

REED SD-1128 SD Series Light Meter, Datalogger, 100,000 Lux / 10,000 Foot Candles (Fc), w/ Temperature

Model: SD-1128

REED SD-1128 SD Series Light Meter-

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Datalogger with date/time stamp stores measurements on SD memory card without the need for software.

REED SD-1128 Offers

This SD series datalogging light meter has a wide measurement range up to 100,000 Lux (10,000 Foot Candles) and features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

  • Measures ambient light levels in Foot Candles or Lux
  • Photo diode and colour correction filters meet C.I.E. spectrum specifications
  • Contact temperature measurement with a type J/K thermocouple option
  • Temperature is measured in °C or °F
  • Real time data logger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Large, easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

REED SD-1128 Specifications

Measuring Ranges Lux: 2,000, 20,000, 100,000
Fc: 200, 2,000, 10,000
Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C)
Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C)
Accuracy Lux: ±(4% + 2 dgt)
Fc: <2,000: ±(4% rdg.+ 2 dgt)
2,000-10,000: ±(4% rdg.+ 20 dgt)
Temp: ±(0.4% + 1.0°C (0.5°F))
Resolution Lux: 1, 10, 100
Fc: 0.1, 1, 10
Temp: 0.1°F  (0.1°C)
Response Time <1 sec.
Sensor Type Photo diode & color correction filter
Autoranging Yes
Display 5-digit LCD
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Auto Zero Yes
Overrange Indicator Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes (AC)
Battery Life Sampling Time Dependent
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-80%
Dimensions 7 x 2.7 x 1.9" (117 x 68 x 45mm)
Weight 17.3oz (489g)

What's included with the REED SD-1128

  • Light Meter Datalogger
  • Detachable Sensor
  • Sensor Cover
  • Batteries

Ideal Applications for the REED SD-1128

  • OSHA work environment compliance
  • Cinematography and photography applications
  • Museum exhibits
  • Lighting system installation
  • Environmental monitoring
  • Interior design projects
  • Industrial applications
