REED R9000 Video Inspection Camera System
Model: R9000 | UPC: 800837001559

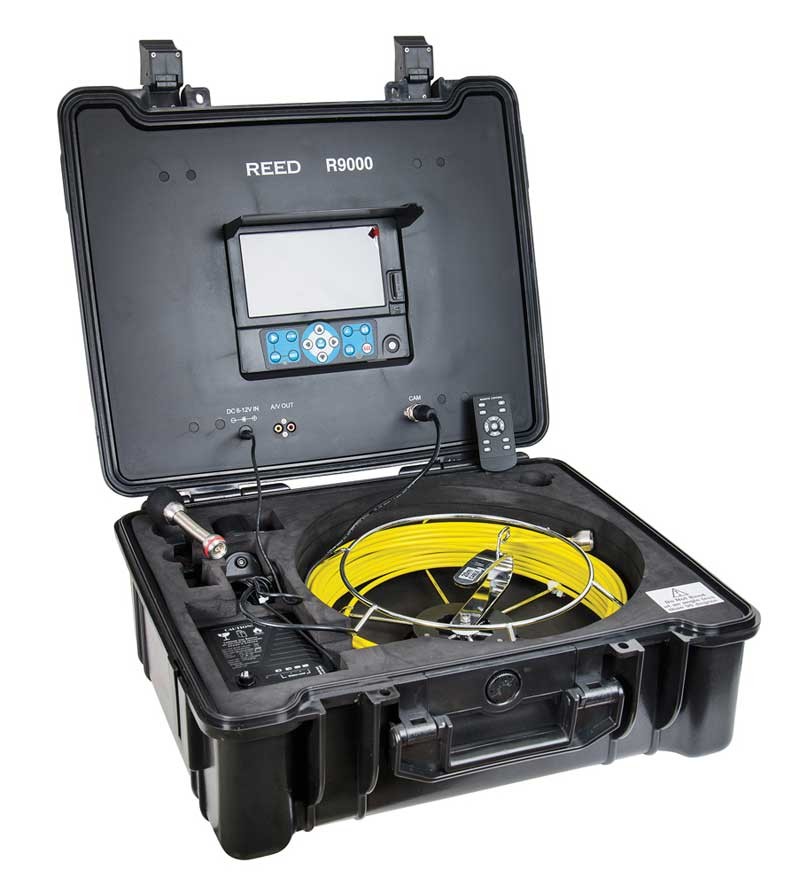

REED R9000 Video Inspection Camera System
Model: R9000 | UPC: 800837001559
Complete video inspection system with 65.6ft (20m) cable, 7" TFT LCD monitor and ability to record video and audio.
REED R9000 Offers
This high resolution video inspection system features a 65.6ft (20m) meter cable built into a portable carrying case. The R9000 is capable of saving images and recording video/audio on internal memory or on an external memory card (sold seperately). This video inspection system is commonly used to determine the condition of small diameter sewer lines and household connection pipes. The R9000 includes a rechargeable lithium-ion battery and a car charger for continuous use in the field.
Features
- Complete video inspection system built in a hard carrying case
- Camera and video functions save high resolution images and records video/audio
- Twelve high visibility LED lights provide illumination in dimly lit environments
- Scratch-resistant sapphire lens and durable stainless steel camera housing
- 65.6ft (20m) cable mounted on cable reel
- High resolution 16:9 7" TFT LCD display
- Video and audio output

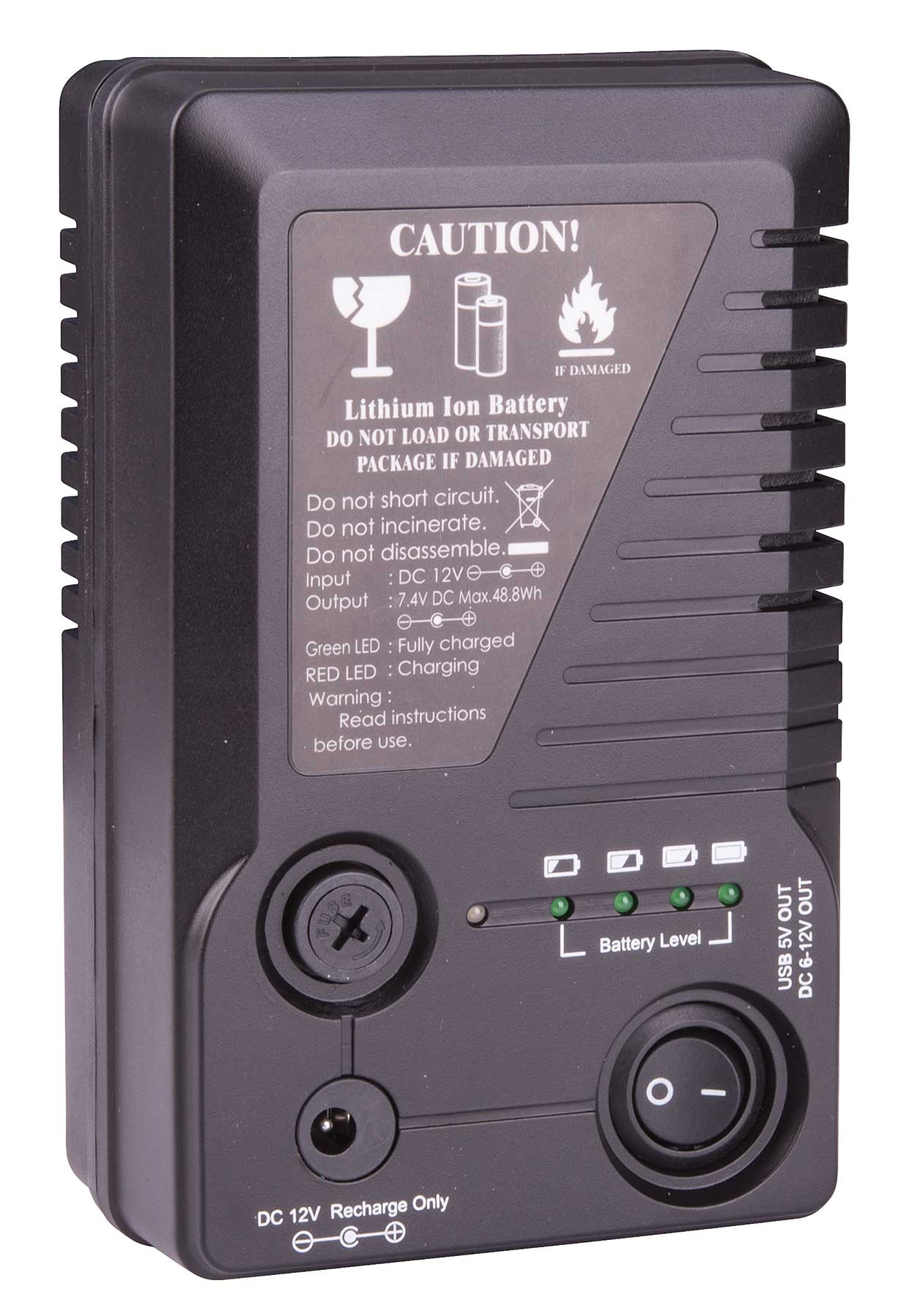

- Rechargeable lithium-ion battery and car charger
- Sun visor is included to act as a sun shield for outdoor inspections
- 90° mirror rotation and low battery indicator
REED R9000 Specifications
| Camera | |
| Camera Resolution | 800 x 480 |
| Camera Diameter | 0.91" (23mm) |
| Camera Length | 4.7" (120mm) |
| Lens/Housing Material | Saphire / Stainless Steel |
| Viewing Distance | 7.9 to 39.4" (20 to 100cm) |
| Depth of Field | 100cm to infinity |
| Viewing Angle | 0 to 140° |
| General Specifications | |
| Display | 7" Color TFT LCD (16x9) |
| Display Resolution | 800 x 480 |
| Frames per Second (FPS) | 30 |
| Standard Gooseneck/Cable Length | 65.6' (20m) |
| Cable Diameter | 0.2" (5.2mm) |
| Rotate Display | Yes (90°) |
| Playback | Photo, Video and Audio |
| Memory | Internal / SD Card |
| TV Out | PAL / NTSC |
| Data Output | USB / SD Card |
| LED Brightness Adjustment | Yes (12 white LEDs) |
| Low Battery Indicator | Yes |
| Power Supply | Rechargeable Li-ion Battery, AC Adapter, Car Charger |
| On-Screen Supported Languages | English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese |
| Product Certifications | CE, IP67 (Camera Head) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | 4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 30 to 90% |
| Dimensions | 22.7 x 10.4 x 20.4" (575 x 265 x 520 mm) |
| Weight | 22lbs (10kg) |

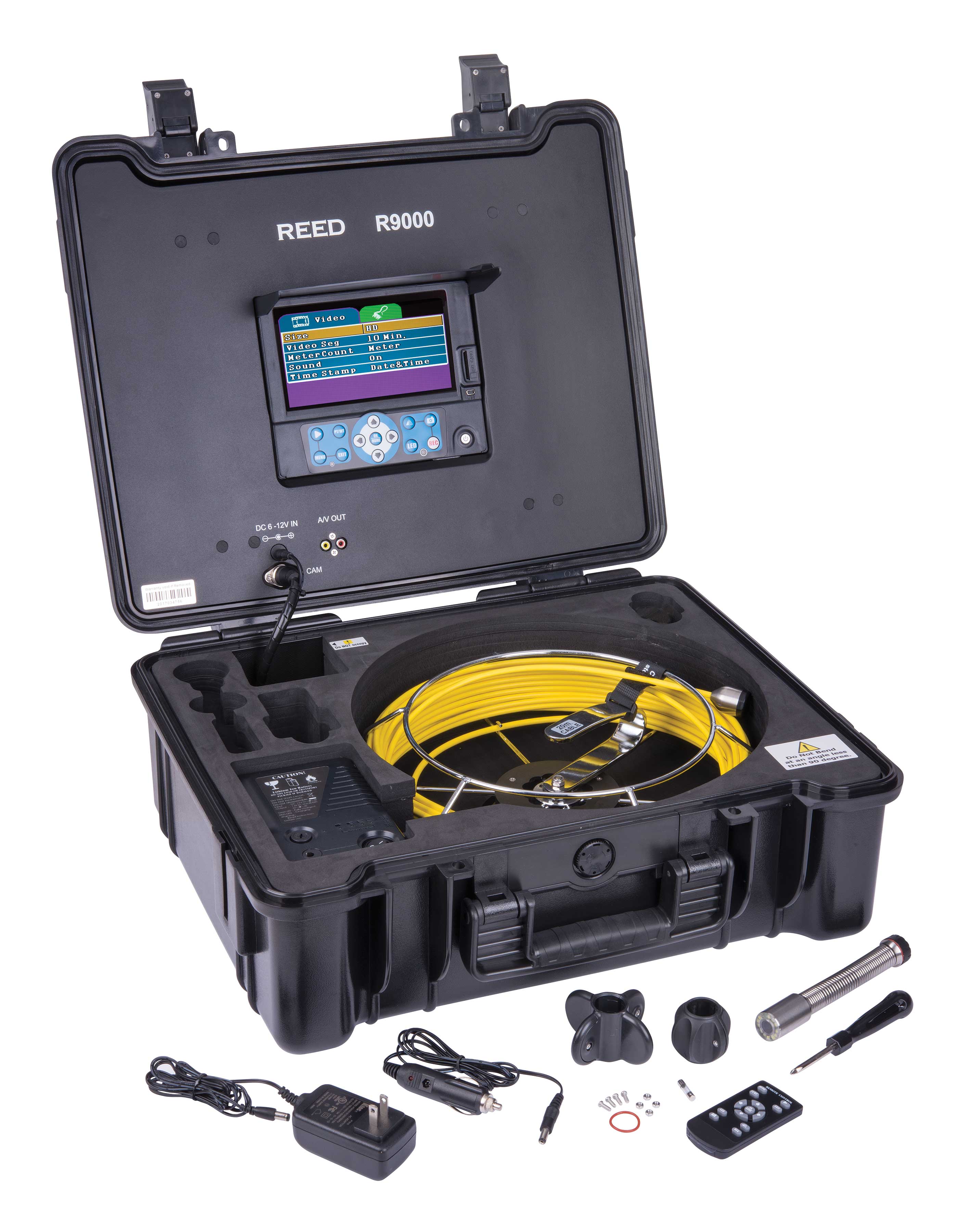

What's included with the REED R9000
- HD Video Inspection System
- Camera Head
- 20m Cable Reel and Push Cable
- Remote Control
- Hard Carrying Case with built-in DVR
- Battery Pack and Cable
- Car Charger
- Fuse
- Ball Guide (x2)
- Plastic Skid
- Screw (x2)
- Nut (x2)
- Waterproof Ring and Adapters
- Screwdriver
R9000 Video Inspection Camera
The R9000 stores high-resolution images and records video. It features a 23mm waterproof (IP67) camera head, a high resolution 7" color LCD monitor and the high visibility LED lights provide illumination in dimly lit environments.
Ideal Applications for the REED R9000
- Sewer and pipe inspection
- Building ducts/HVAC/R inspections
- Well inspections
- Building and home inspection
