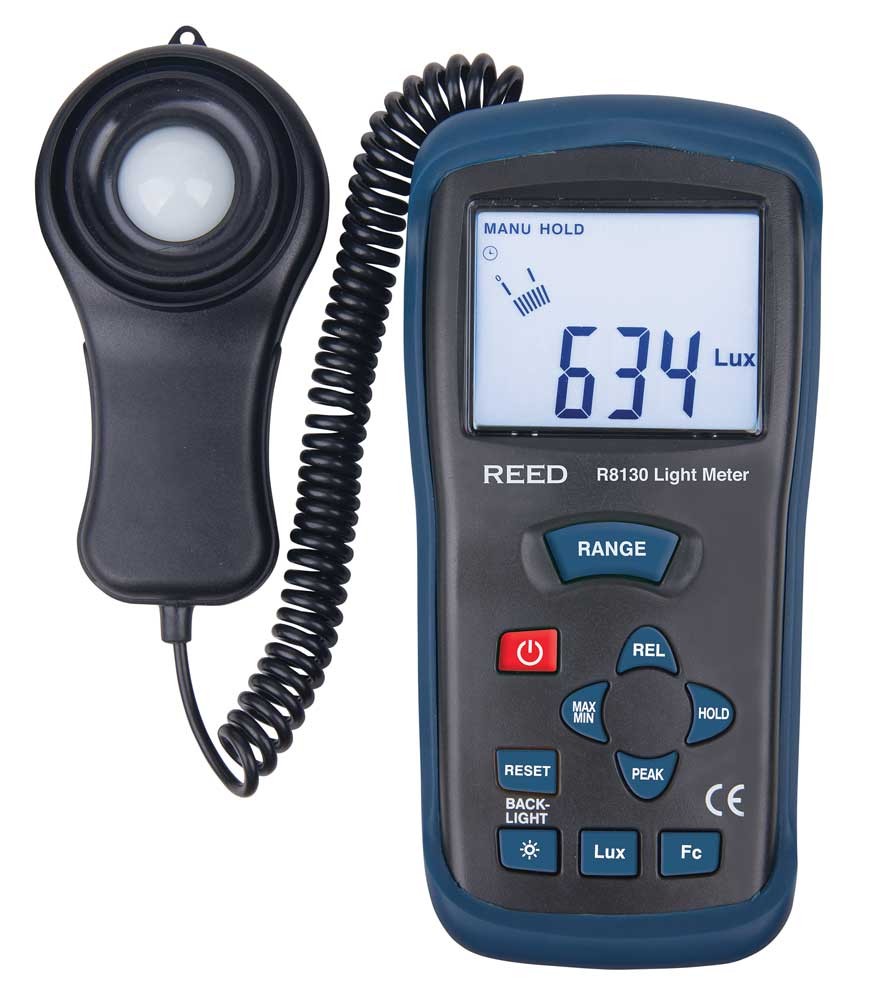

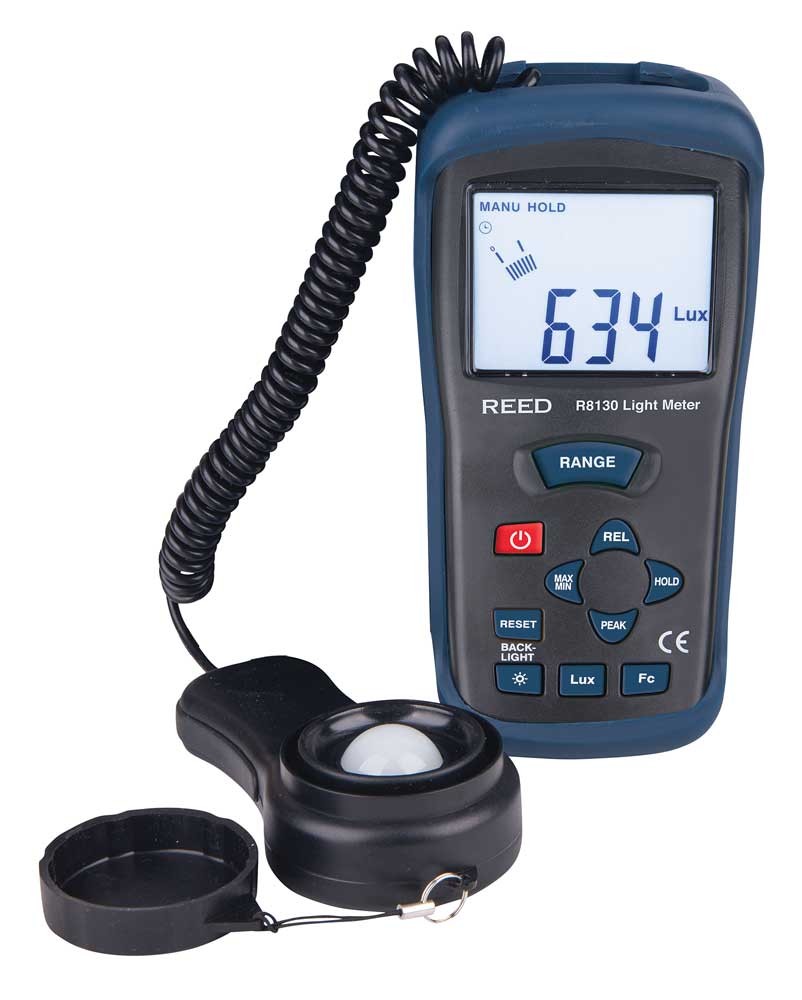

REED R8130 Light Meter

Model: R8130 | UPC: 800837005373

Measures light intensity up to 40,000 fc / 400,000 lx.

REED R8130 Offers

This light meter is capable of measuring in both Foot-candle (fc) and lx. The R8130 features an LCD display with a 42-segment analog bargraph, data hold, min/max, peak and relative functions. The tethered sensor allows for flexible operation while taking measurements.

Features

Wide measuring range (up to 40,000 fc or 400,000 lx)
Easy-to-read backlit LCD display
42-segment digital analog bargraph
Min/Max and Relative Mode functions
Peak and Data Hold
Low battery indicator and auto shut-off

REED R8130 Specifications

Measuring Ranges	lx: 0 to 400,000 fc: 0 to 40,000
Accuracy	±(5% rdg.+ 0.5% Full Scale)
Repeatability	±3%
Resolution	lx/fc: 0.01 (Max resolution)
Response Time	Bargraph: 13.3 times/second Numeric display: 1.3 times/second
Sensor Type	Photo diode with spectral response filter
Spectral Response	CIE Photopic (CIE Human Response Curve)
Spectral Accuracy	CIE Vλ function f1'≤6%
Cosine Response	f2' ≤2%
Display	3 3/4" (3999) digit LCD
Digital Analog Bargraph	Yes (42 segment)
Backlit Display	Yes
Data Hold	Yes
Min, Max and Relative Mode	Yes
Peak Hold	Yes
Overrange Indicator	Yes
Auto Shut-Off	Yes (after 30 mins)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	9V battery
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 50°C)
Operating Humidity Range	10 to 80%
Dimensions	7.4 x 2.5 x 1" (188 x 64.5 x 24.5mm)
Weight	14.2oz (403g)

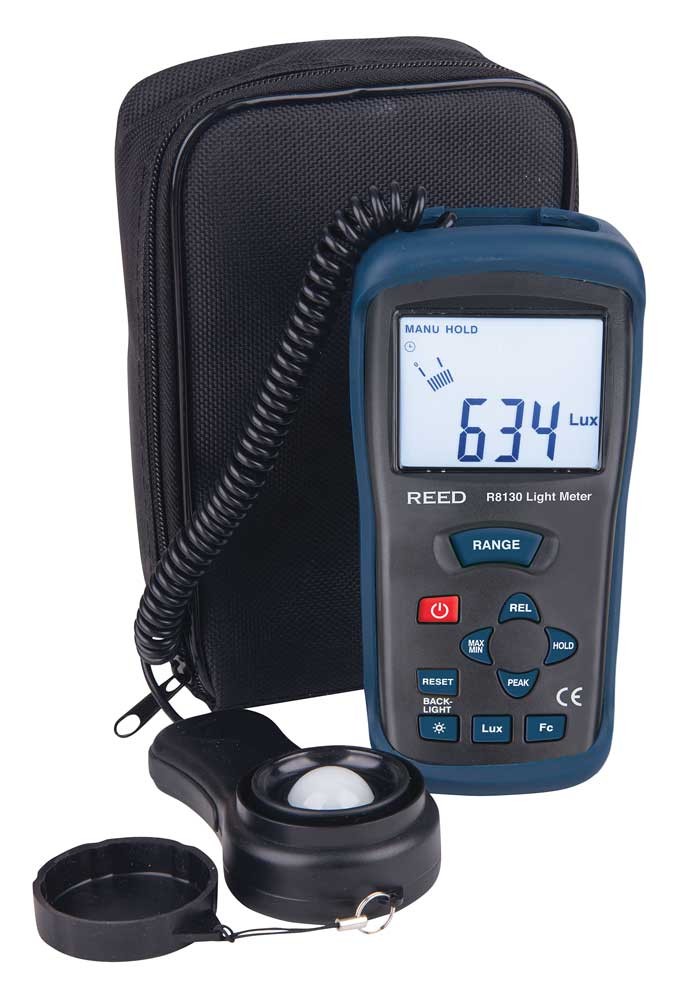

What's included with the REED R8130

Light Meter
Sensor Cover
Protective Holster
Carrying Case
Battery

Introduction du Luxmètre REED R8130

Measure the amount of light efficiently with the REED R8130 Light Meter. Measuring ambient light levels in both Foot-candle (fc) and Lux (lx), the R8130 also features a LCD display with a 42-segment analog bargraph, data hold, min/max, peak and relative functions. The tethered sensor allows for flexible operation while taking measurements so that you can easily utilize the wide measuring range of up to 40,000 fc or 400,000 lux. Want to know more about this meter? View a quick list of the specifications at 1:30.
