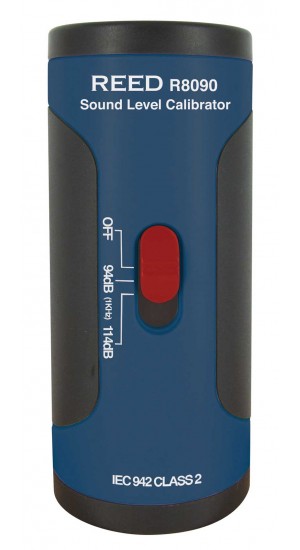

REED R8090 Sound Level Calibrator
Model: R8090 | UPC: 800837001801
REED R8090 Sound Level Calibrator
Model: R8090 | UPC: 800837001801
This sound calibrator generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter.
REED R8090 Offers
This sound calibrator generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter. The R8090 is compatible with all 1/2" diameter microphones.
Features
- Generates stable acoustic signal at a controlled frequency and amplitude to verify sound level meter accuracy
- Accommodates sound meters with 1/2" diameter microphones
- Simply place calibrator on microphone, turn on and adjust your sound level meter
- Complies with IEC 60942 Class 2
REED R8090 Specifications
| Output Sound Pressure | 2 levels (94dB and 114dB) |
| Accuracy | ±0.5dB |
| Output Frequency | 1000Hz ±4% |
| Power Supply | 9V Battery |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 0 to 80% |
| Dimensions | 4.7 x 2 x 1.7" (120 x 51 x 43 mm) |
| Weight | 4.6oz (130g) |
What's Included with the REED R8090
- Sound Level Calibrator
- Battery
R8090 Sound Level Calibrator
How To: Calibrate your Sound Level Meter
Calibration is vital in ensuring that your sound level meter is in proper working condition when measuring noise. For the purpose of this video, we'll be using the R8080 Sound Level Meter and the R8090 Sound Level Calibrator. These steps will work for most sound level meters.
Ideal Applications for the REED R8090
Calibrate 1/2" sound level meters.
