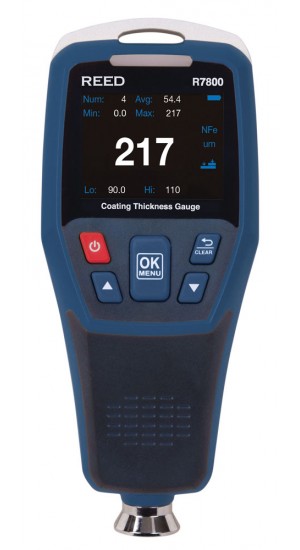

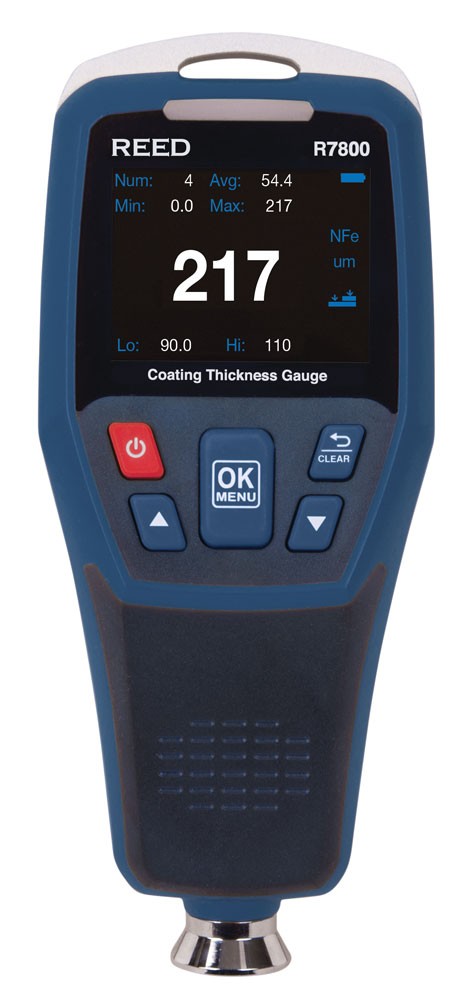

REED R7800 Coating Thickness Gauge
Model: R7800 | UPC: 800837004475
REED R7800 Coating Thickness Gauge
Model: R7800 | UPC: 800837004475
Automatically identifies ferrous and non-ferrous substrates.
REED R7800 Offers
This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.
Features
- Automatically detects ferrous and non-ferrous substrates
- Integral probe measures non-magnetic and non-conductive coatings on steel substrates
- Easy-to-read color LCD display

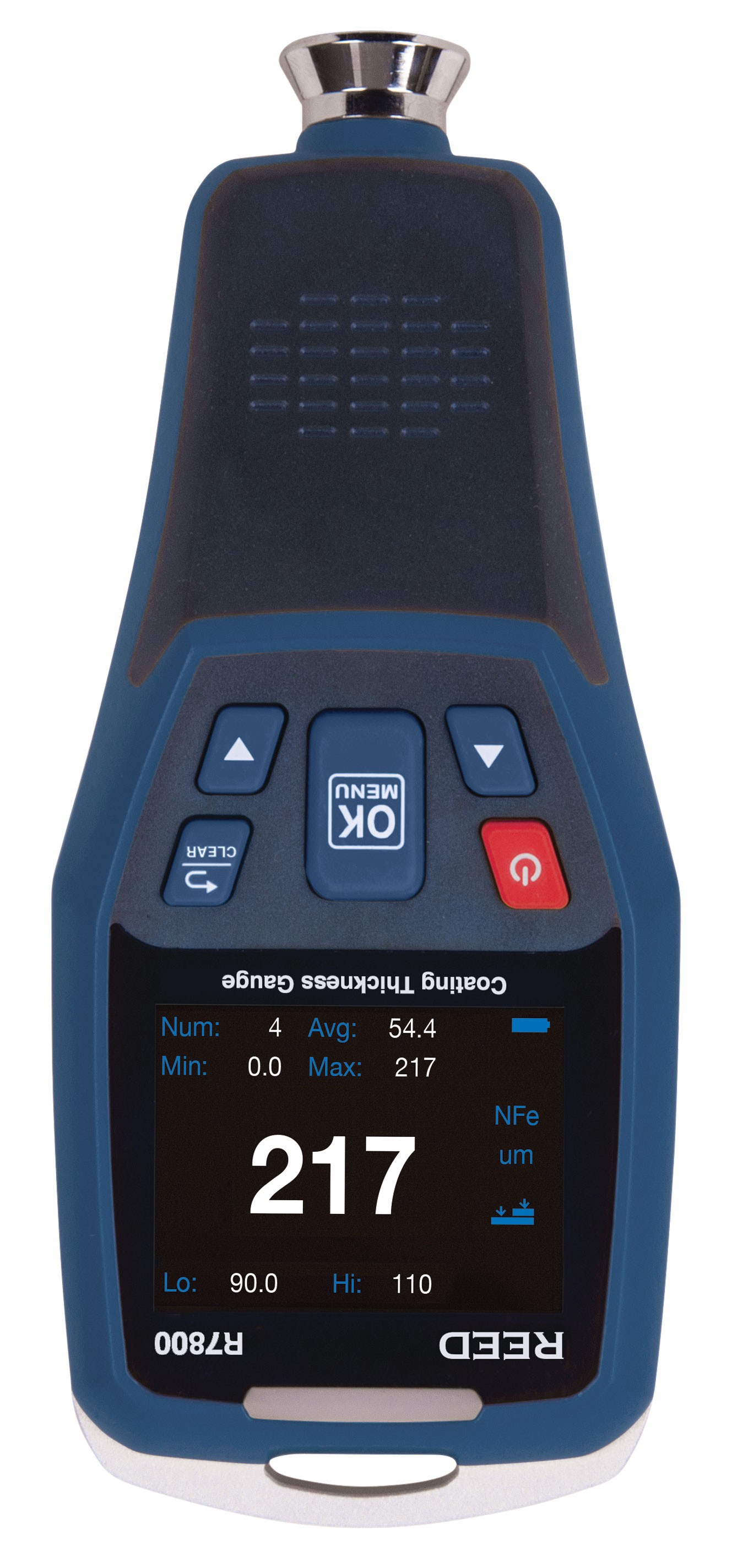

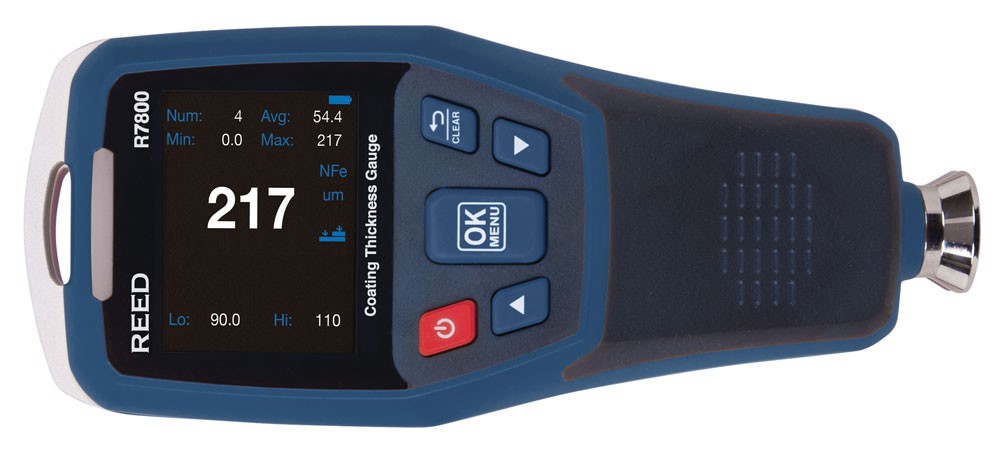

- 360° screen rotation allows users to view measured readings from any angle
- Durable gauge and probe construction
- Zero and two-point calibration ensures measurement accuracy
- Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails

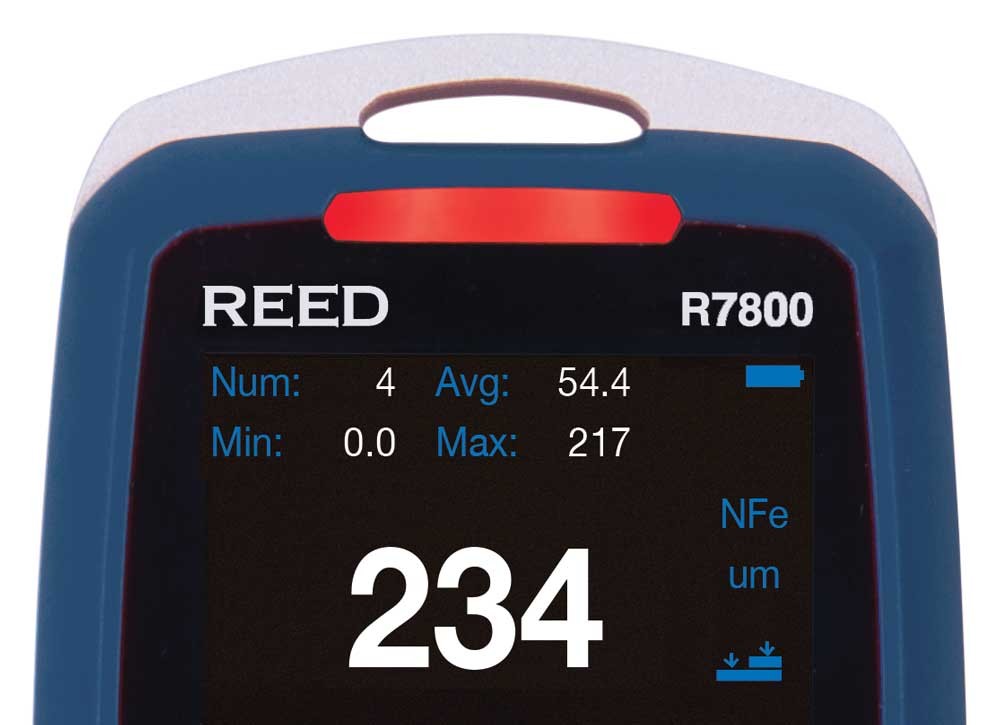

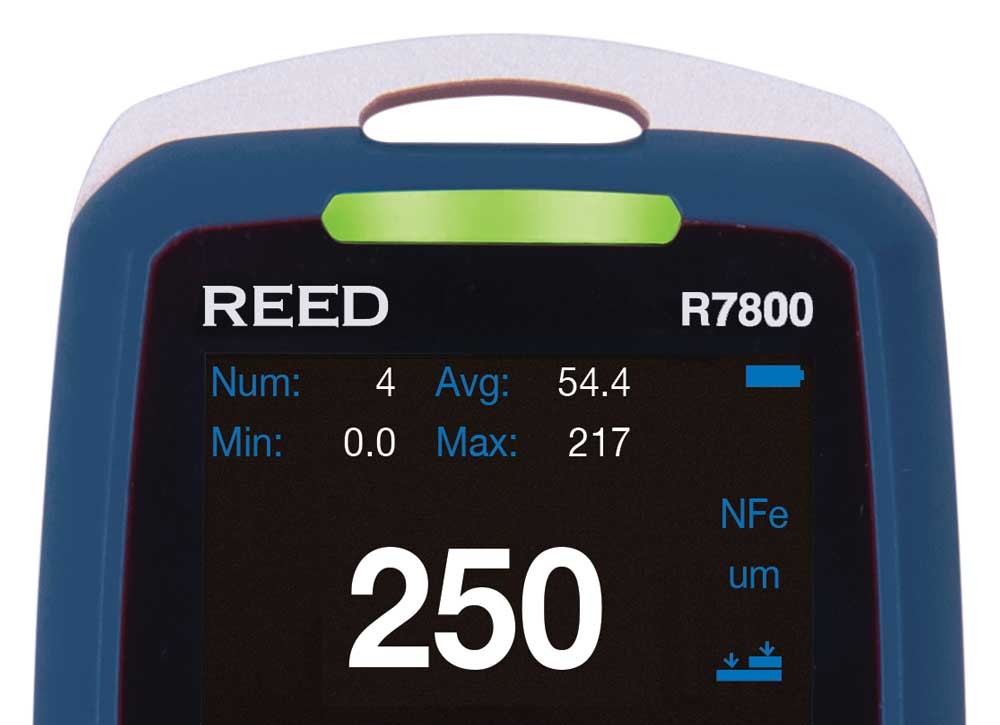

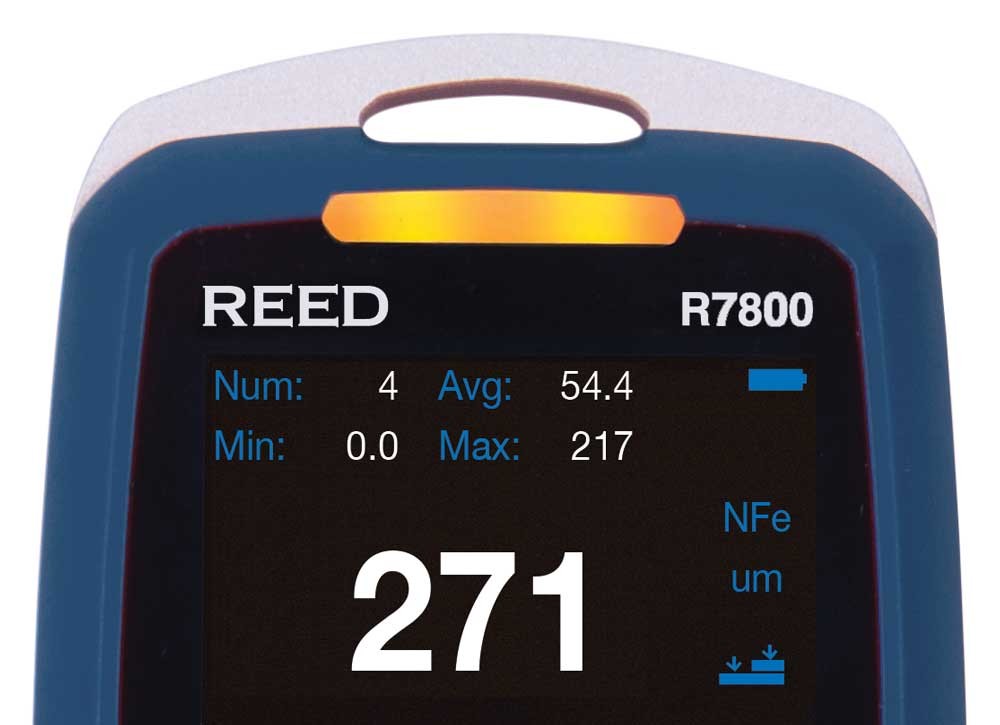

- Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
- Internal memory stores up to 500 groups of data
- View stored data, charts or real-time measurement with software
- Low battery indication and auto shut off
REED R7800 Specifications
| Measuring Range | 0 to 1250μm 0.1 to 49.2mils |
| Accuracy | 0 to 1250μm: ±3% +1μm 0 to 49.21mils: ±3% +0.04mils |
| Resolution | 0 to 99.9μm: 0.1μm 100 to 1250μm: 1μm 0 to 4.99mils: 0.01mils 5.0 to 49.2mils: 0.1mils |
| Measurement Modes | Single and Continuous |
| Display | 4-digit color LCD display |
| Resolution | 320 x 240 pixels |
| Backlit Display | Yes (5 levels) |
| Min/Max/Average Readings | Yes |
| Minimum Curvature Radius | 5mm (196.85mils) |
| Minimum Area Diameter | 20mm (787.40mils) |
| Minimum Substrate Thickness | 0.5mm (19.69mils) |
| Auto Shut-Off | Yes (After 5 minutes) |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AA Batteries |
| Internal Memory | Yes (Up to 500 groups) |
| PC Connectivity | USB Cable |
| Software | Yes |
| Software OS Compatibility | Windows 7/8/10/11 |
| Product Certifications | CE |
| Refresh Rate | 0.5 seconds (continuous mode) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | ≤80%RH |
| Dimensions | 5.9 x 2.6 x 1.38" (152 x 65 x 35mm) |
| Weight | 6.35oz (180g) |

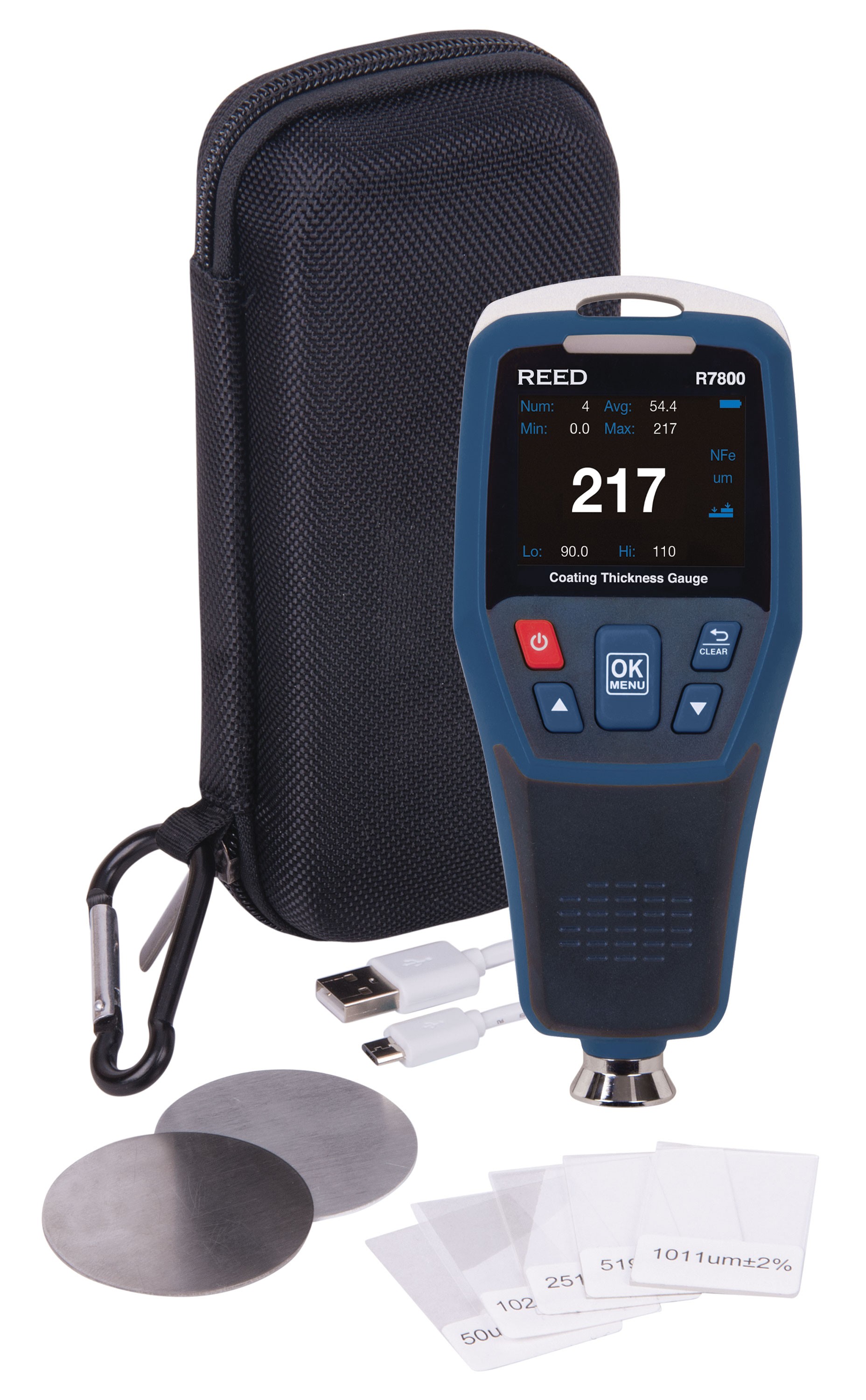

What's included with the REED R7800
- Coating Thickness Gauge
- Ferrous Substrate
- Non-Ferrous Substrate
- 5 Reference Films
- USB Cable
- Wrist Strap
- Sensor Cover
- Batteries
- Hard Carrying Case
R7800 Coating Thickness Gauge
The R7800 automatically detects ferrous and non-ferrous substrates. It features an easy-to-read color LCD display, a 360° screen rotation and zero and two-point calibration ensures accuracy. The tri-color LEDs indicate when measurements are below, above or within set parameters and the internal memory stores up to 500 groups of data. The user can view stored data, charts or measure in real-time with the included software.
Coating Thickness Gauge Software for REED R7800
With the R7800 software, the user will be able to datalog in real-time, load recorded data, export to Excel, generate graphs and histograms, and export to PDF.
Ideal Applications for the REED R7800
- Verification of paint thickness
- Automotive industry
- Plating thickness
- Industrial manufacturing
- Metal processing
- Aerospace
- Scientific research
