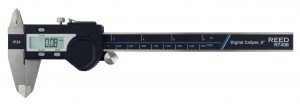

REED R7406 Digital Caliper, 6" (150mm)
Model: R7406 | UPC: 800837007087
REED R7406 Digital Caliper, 6" (150mm)
Model: R7406 | UPC: 800837007087
Rugged 6-Inch (150mm) digital caliper made of hardened steel.
REED R7406 Offers
This high-precision digital caliper has been designed to provide accurate measurements in both inches and millimeters.
Built with a hardened stainless steel head and body for durability, it offers the ability to measure outside, inside, depth and step dimensions. The R7406 features user-friendly functions such as a zero adjustment button and a lock screw to hold the slide in position.
Features
- Measure outside dimension, inside dimension, depth and step measurements
- Easy-to-read 5-digit LCD display
- User selectable unit of measure (in/mm)
- Zero adjustment button
- Lock screw to hold slide in position
- Hardened stainless steel head and body
- Low battery indicator and auto shut off
REED R7406 Specifications
| Measuring Range | 0 to 6" (0 to 150 mm) |
| Resolution | 0.0005" (0.01 mm) |
| Accuracy | 0 to 1.967" (0 to 50 mm): ±0.0010" (0.02 mm) 1.967 to 6" (50 to 150 mm): ±0.0011" (0.03 mm) |
| Repeatability | 0.0005" (0.01 mm) |
| General Specifications | |
| Display | 5-digit LCD |
| Unit of Measure | Imperial/Metric |
| Zero Button | Yes |
| Auto Shut-Off | Yes (5 mins) |
| Low Battery Indicator | Yes |
| Power Supply | CR2032 |
| Product Certifications | CE, IP54 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Operating Humidity Range | 0 to 85% |
| Dimensions | 9.3 x 3.1 x 0.6" (235 x 78 x 15 mm) |
| Weight | 5.6 oz (160 g) |
What's included with the REED R7406
- Battery
- Carrying Case
Ideal Applications for the REED R7406
- Accurately measure internal, external, and depth dimensions of objects in machining and manufacturing processes
- Measure metal parts, sheet thickness, and hole diameters to ensure proper fabrication and fit in mechanical assemblies
- Ensure accurate dimensions of wood pieces, joints, and materials for precise construction and assembly
- Verify 3D printed parts' dimensions against design specifications to ensure accuracy and functionality
- DIY hobbyists and home workshops to measure a variety of materials for personal projects
