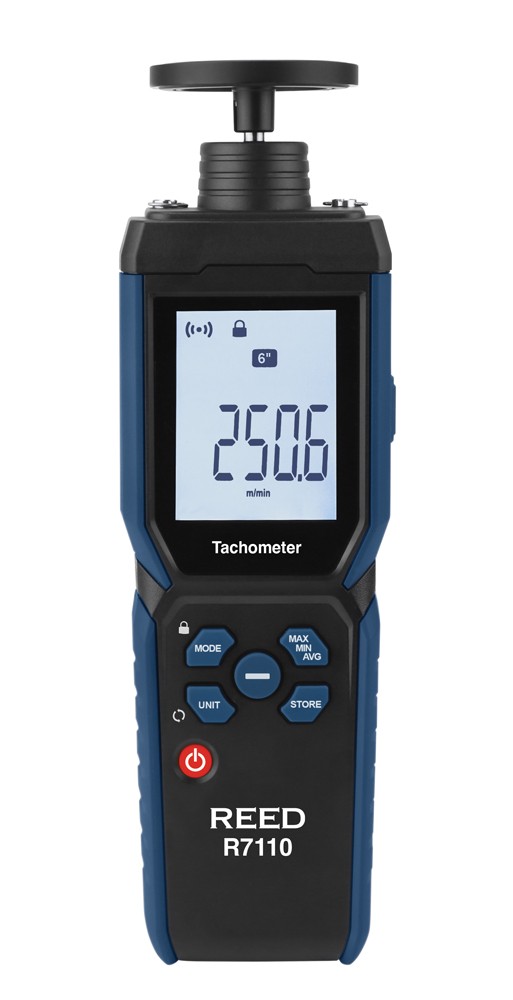

REED R7110 Combination Contact and Laser Photo Tachometer
Model: R7110 | UPC: 800837006950
REED R7110 Combination Contact and Laser Photo Tachometer
Model: R7110 | UPC: 800837006950
This dual-function tachometer offers both contact and non-contact measurement modes for fast, accurate RPM and surface speed readings, featuring a laser for precision from a distance and a backlit, rotating LCD for easy viewing.
REED R7110 Offers
The R7110 Contact and Non-Contact Tachometer is designed for precise RPM and surface speed measurements on rotating objects. With dual functionality, it provides both contact and non-contact options, utilizing a laser for high accuracy at greater distances. The tachometer features an easy-to-read, backlit, and rotatable LCD display, making it adaptable to various viewing angles. Built-in memory allows users to conveniently recall maximum, minimum, and average readings, along with the last 10 data points.
Features
- Dual function unit with both contact and non-contact capabilities
- Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements with included contact adapters
- Laser provides improved accuracy at a greater distance
- Internal memory recalls maximum, minimum, average values and last 10 data points
- Backlit and rotatable LCD Display
- Low battery indication and auto shut off
REED R7110 Specifications
| Non-Contact Range | |
| Rotational Velocity Range (RPM) | 1 to 99,999 |
| Frequency Range (Hz) | 1-1666 |
| Count Range (REV) | 1-99,999 |
| Contact Range | |
| Rotational Velocity Range (RPM) | 1 to 19,999 |
| Frequency Range (Hz) | 1-333 |
| Surface Speed Range | 0.1m Wheel: 0.1 to 1,999 m/min. 0.4 to 6,550 ft/min. 4-78,700 in/min. 6" Wheel: 0.15 to 1,524 m/min. 0.5 to 5,000 ft/min. 0-60,000 in/min. |
| Length Range | 0-99,999 m/in/ft |
| Resolution | |
| Rotational Velocity (RPM) | 1 to 99.99: 0.01 100 to 999.9: 0.1 1,000 to 99,999: 1 |
| Frequency (Hz) | 0.1 |
| Surface Speed | 1 to 99.99: 0.01 100 to 999.9: 0.1 1,000 to 99,999: 1 |
| Length (m) | 0.1m / 6" Wheel: 1 to 99.99: 0.01 100 to 999.9: 0.1 1,000 to 99,999: 1 |
| Length (in) | 0.1m Wheel: 1 to 99.99: 0.32 100 to 999.9: 0.3 1,000 to 99,999: 1 6" Wheel: 1 to 99.99: 0.5 100 to 999.9: 0.5 1,000 to 99,999: 1 |
| Length (ft) | 0.1m Wheel: 1 to 99.99: 0.02 100 to 999.9: 0.1 1,000 to 99,999: 1 6" Wheel: 1 to 99.99: 0.4 100 to 999.9: 0.1 1,000 to 99,999: 1 |
| General Specifications | |
| Accuracy | ±(0.02% rdg. + 1 dgt.) |
| Display | 5-Digit LCD Display |
| Backlit Display | Yes |
| Rotatable Screen | Yes |
| Auto shut-off | Yes |
| Internal Memory | 10 Datapoints, Max, Min, Average and Last Reading |
| Tripod Mount | Yes |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Power Supply | 3 x AAA Batteries |
| Battery Life | Approx. 20 hours |
| Product Certifications | CE, UKCA, ROHS |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-80% |
| Dimensions | 6.9 x 2.5 x 1.5" (176 x 63 x 38 mm) |
| Weight | 6.4oz (181g) |
What's included with the REED R7110
- Contact Adapter
- Large and Small Wheel Adapters
- Funnel Adapter
- Cone Adapter
- Reflective Tape
- Batteries
- Carrying Case
Ideal Applications for the REED R7110
- Identify issues with rotational equipment such as: Conveyors, Turbines, Compressors, Fans and Blowers.
- Automated Assembly and Production Lines
